Fujian Winwin Group supplies high‑performance PVC & ABS fiber optic raceway trays, purpose‑built for structured fiber routing within data centers, generator rooms，telecommunication equipment rooms and Telecom Infrastructure. This enclosed fiber raceway system delivers reliable physical protection for patch cords, facilitates neat fiber management, and supports easy capacity expansion for evolving communication infrastructure.

Core Features for Fiber Optic Raceway

1. Enclosed protective structure

Fully enclosed housing shields fiber patch cords against mechanical damage, dust and external interference, improving fiber service life and system stability.

2. Flame‑retardant engineering‑grade material

Main body constructed from flame‑retardant ABS / PVC compound material. Smooth, flat inner surface prevents fiber sheath abrasion during cable deployment.

3. Dual‑type fiber outlet options

Equipped with both fixed and movable fiber outlets. Movable outlets offer great flexibility when adding new devices or expanding business capacity in‑service.

4. Strict fiber bending radius control

Guarantees minimum fiber bending radius ≥40 mm throughout the whole routing path, avoiding signal attenuation caused by sharp bends.

5. Excess fiber storage capacity

Built‑in storage zone for redundant patch cords. Effectively organizes slack fiber length and avoids messy on‑site cable layout.

6. Flexible installation solutions

Robust modular connections ensure stable assembly. Supports two mounting methods: overhead hanging suspension or bottom‑base bracket support, adapting to diverse site ceiling and rack conditions.

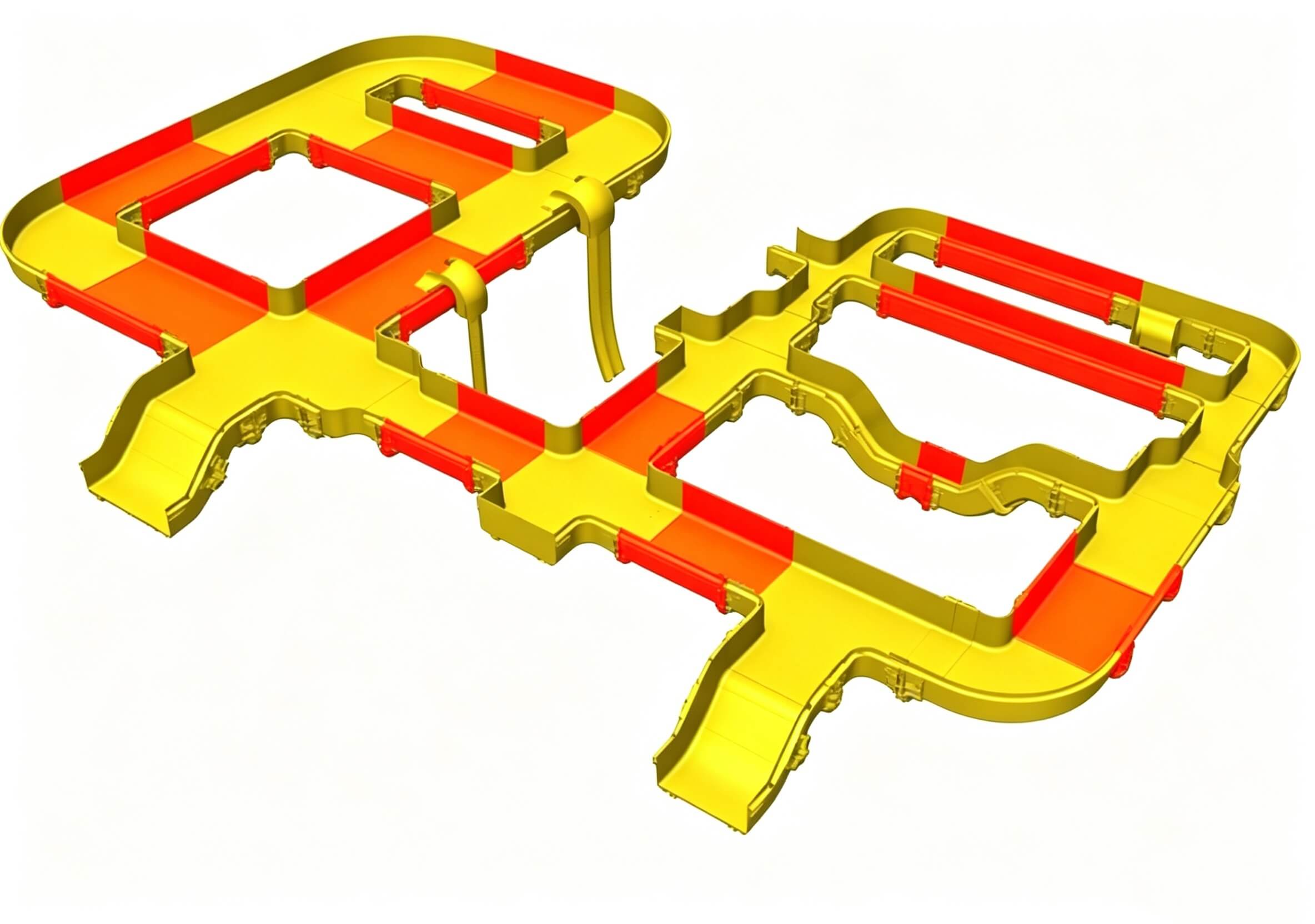

                                                                                                     （ Red parts: Straight‑run Fiber Optic Raceway segments）

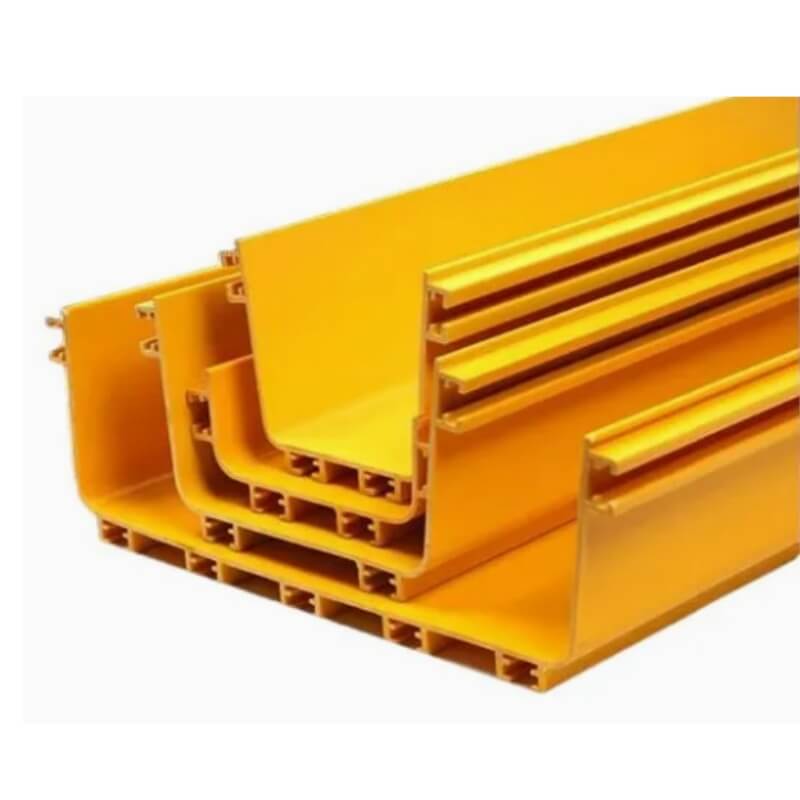

Technical Specifications & Capacity for PVC or ABS Fiber Optic Cable Duct

1. Available cross‑section dimensions: 60 × 60 mm, 120 × 100 mm, 150 × 100 mm, 240 × 100 mm, 300 × 100 mm, 360 × 100 mm, 600 × 100 mm

2. Standard section length: 2000 mm per straight segment

3. Maximum stacking fiber height inside raceway: 100 mm

4. Patch cord carrying capacity (for 3 mm² fiber patch cords),Fiber Optic Raceway sizes as follows:

• 120 × 100 mm: up to 990 pcs

• 150 × 100 mm: up to 1230 pcs

• 240 × 100 mm: up to 1980 pcs

• 300 × 100 mm: up to 2460 pcs

• 360 × 100 mm: up to 2970 pcs

• 600 × 100 mm: up to 4950 pcs

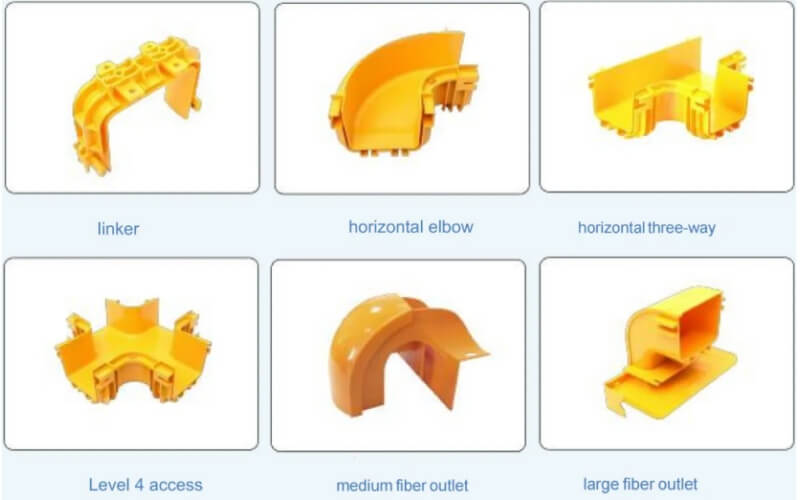

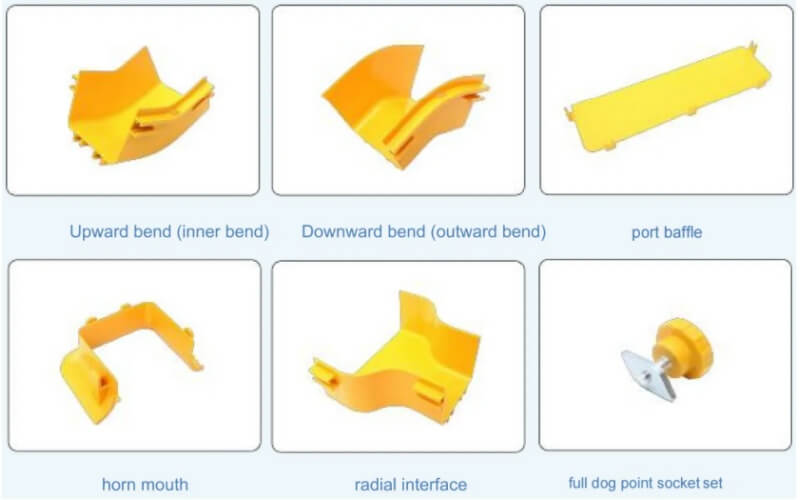

Supplementary note: Modular fiber optic routing duct accessories including elbows, tees, crosses, risers and reducers are available to complete full‑path fiber routing layouts. All matching components share identical material and flame‑retardant performance with main Data Center Cable Management for consistent system performance.
