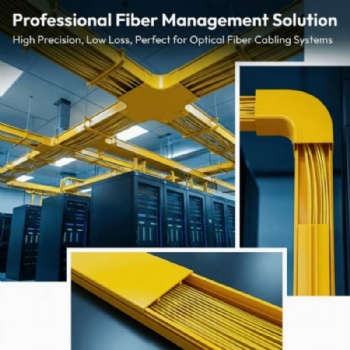

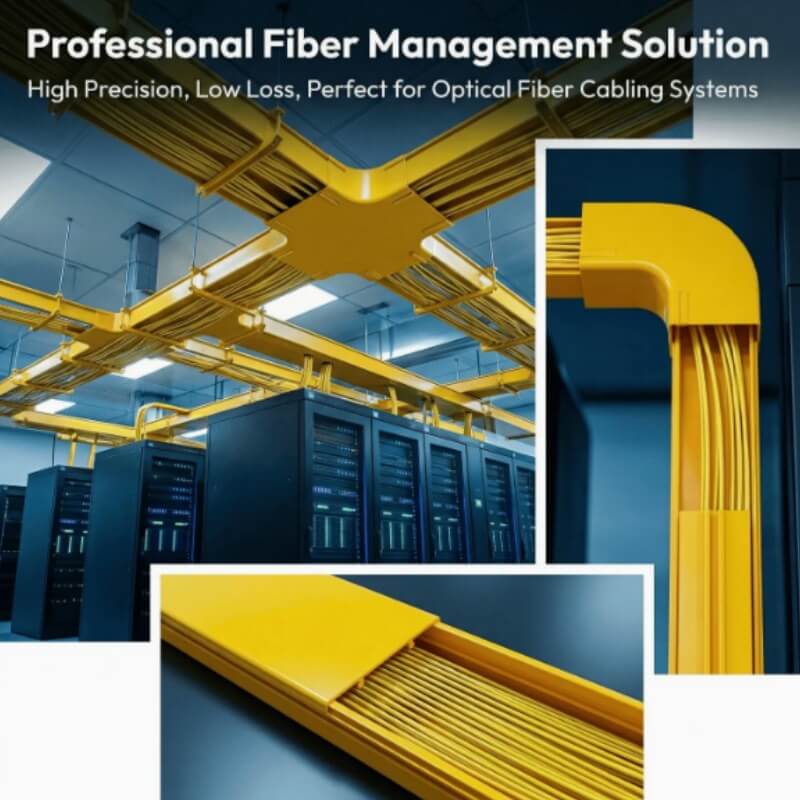

ABS PVC Fiber Optic Cable Raceway Duct for Network Cabling

Optic Fiber Cable Duct (Indoor Fiber Raceway / Fiber Tray Duct)

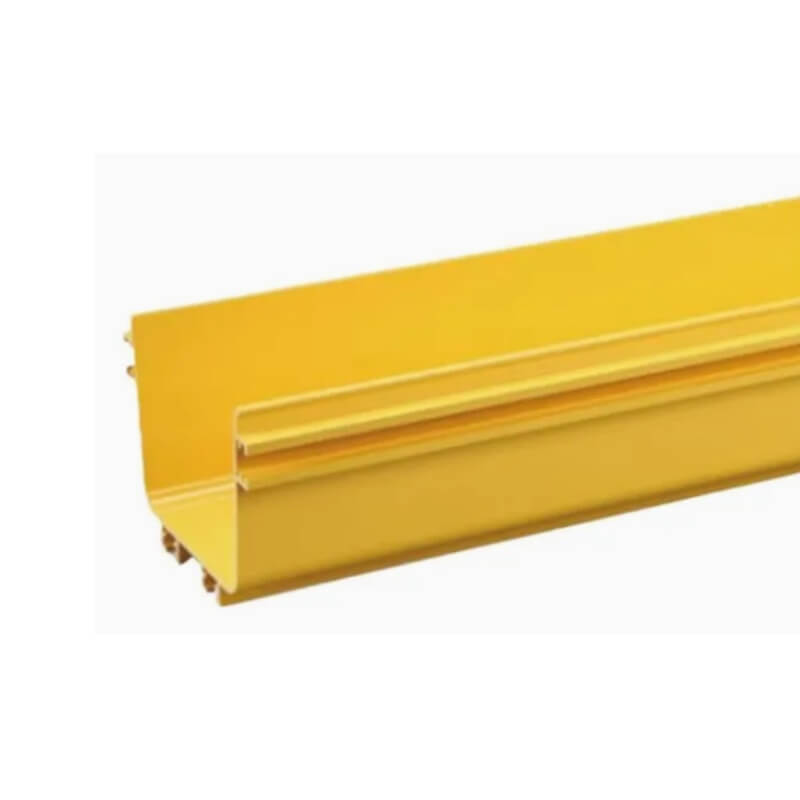

Optic Fiber Cable Duct, also known as fiber raceway or fiber tray duct, is a fully enclosed dedicated plastic channel specially designed to protect fragile indoor fiber optic cables, separate from open metal cable trays only for general power & data cables.

Our fiber duct series is exclusively manufactured with flame-retardant PVC and ABS composite materials: straight main bodies & covers adopt rigid PVC for stable structure; all matching fittings including elbows, tees, cross joints and movable fiber outlets use high-toughness ABS to resist impact and cracking during installation. PC/ABS blended version is also available for enhanced low-smoke zero-halogen fire performance.

The fiber tray duct interior features full rounded arc design, strictly controlling minimum bend radius above 40mm to avoid fiber kinking and signal attenuation. Detachable top cover allows quick cable laying, inspection and future fiber expansion without dismounting the whole channel. All raw materials reach UL94 FV-0 flame retardant grade, effectively stopping flame spread in server rooms, IDC data centers and telecom equipment rooms.

Lightweight, anti-corrosion and non-conductive, PVC & ABS fiber ducts eliminate electromagnetic interference to optical signals. Standard widths cover 60x60mm and 120mm, 150mm,240mm, 300mm, 360mm,600mm with uniform 100mm height; custom sizes and customized yellow/orange industrial colors are supported.

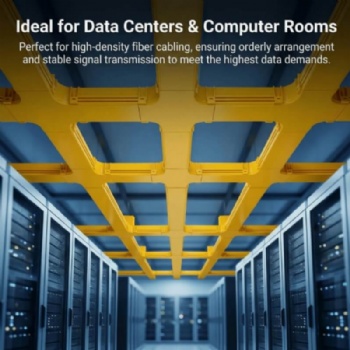

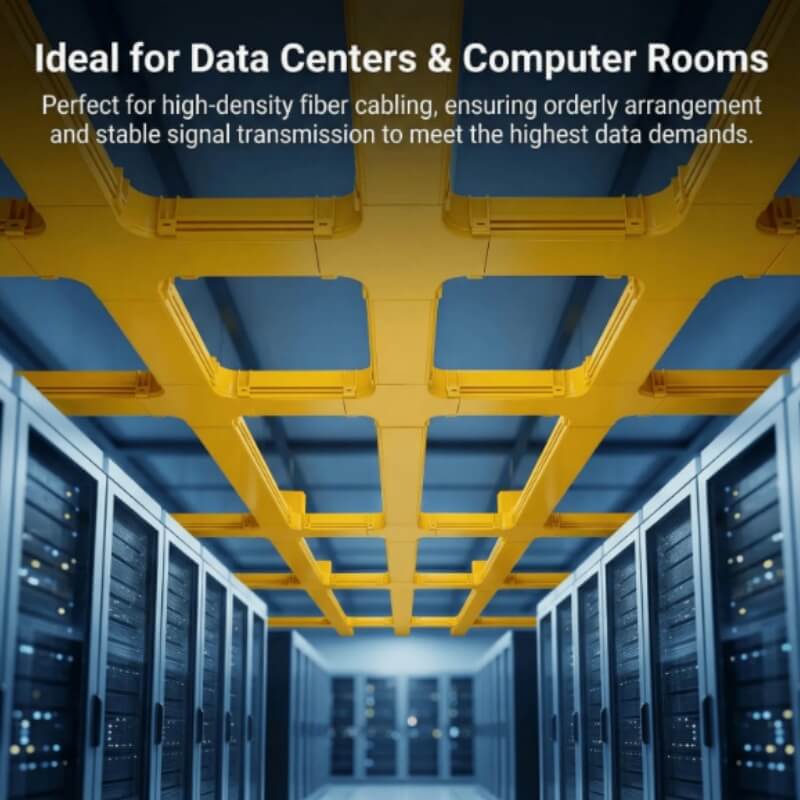

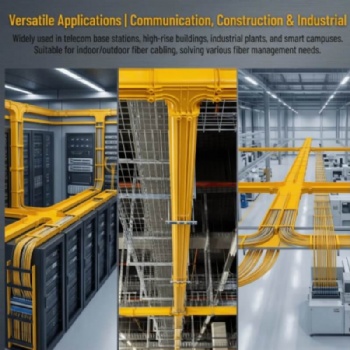

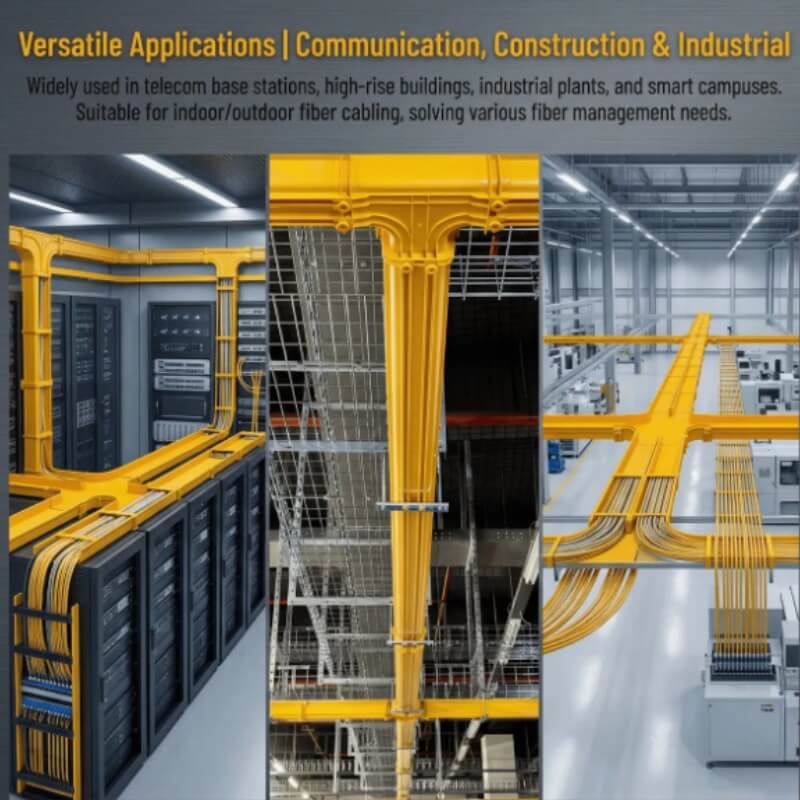

This fiber raceway complies with RoHS, CE,UL/cUL standards and other cerifitication SGS and TUV various testing certificates, widely adopted in data center backbone fiber layout, 5G indoor machine rooms, commercial building communication wiring and computer room renovation projects. Winwin Group provides complete matching accessories to deliver one-stop indoor fiber cable management solutions for global electrical contractors and data center builders.

WHY USE FIBRE OPTIC RACEWAY

• Fibre optic cords carry far more services and much greater throughput than traditional copper services and downtime or outages can cost tens of thousands of dollars per second in lost revenue for each cord damaged.

• Good fibre protection is absolutely essential. Fibre cords are fragile and need to be correctly protected throughout any cabling installation from end to end. Traditional cable routing on open cable trays and ladders may cause damage to the delicate fibre cables. These methods of routing cables provide no protection for the exposed fibre.

CHARACTERISTIC

• Fibre cords need to be segregated from all copper services and routed in enclosed raceway, clearly defined by means of a bright distinctive color. They also need protection against compression, and the minimum bend radius, generally specified as 30mm must not be compromised.

• Labour costs incurred in installing cabling infrastructure in telecommunications exchanges or data centres can be very expensive if the system chosen is not easy to install.

• All plastic based products used should be self-extinguishing to avoid the risk of harming staff, transmission equipment, rescuers or buildings in the case of a fire.

• The need for zero down-time when using optical fibre. The system chosen should be easily changed or extended with the need to remove the existing fibre or shut down

• All plastic based products should be RoHS compliant.

Current Specification of Optic Fiber duct:

(1)60x60mm;

(2)120x100mm;

(3)150x100mm;

(4)240x100mm;

(5)300x100mm;

(6)360x100mm;

(7)600x100mm;

Accessories For Fiber Management System

Schematic Diagram Of Fiber  Optic Cable Duct

Annual Production Capacity: 2 million meters of fiber raceways

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects

Installation Case On Site For Winwin Cable Tray System

Certificate

Our fiber optic cable raceway duct have passed a lot of testing and have a variety of certification, with ROHS, CE, UL, CUL and other certification,SGS and TUV various testing certificates. and fiber raceways, cable ladders and cable fixers won the national patent.
