Introduction for Ladder Cable Tray

In large-scale industrial plants, power stations, petrochemical bases and comprehensive pipe corridor projects, ordinary perforated or solid-bottom cable trays often fail to meet the demands of heavy-load cable laying, large wire quantity and long-span installation. As the most reliable heavy-duty cable tray support solution, ladder cable tray features a rigid ladder-type structure, super load-bearing capacity and excellent heat dissipation performance. It is widely recognized as the standard tray type for high-power electrical engineering worldwide. Winwin full-series ladder cable trays are strictly manufactured in accordance with IEC 61537 international standards, covering multiple surface finishes and customized specifications to serve global heavy industrial cable tray infrastructure projects.

* Unique Structural Design of Cable Ladders

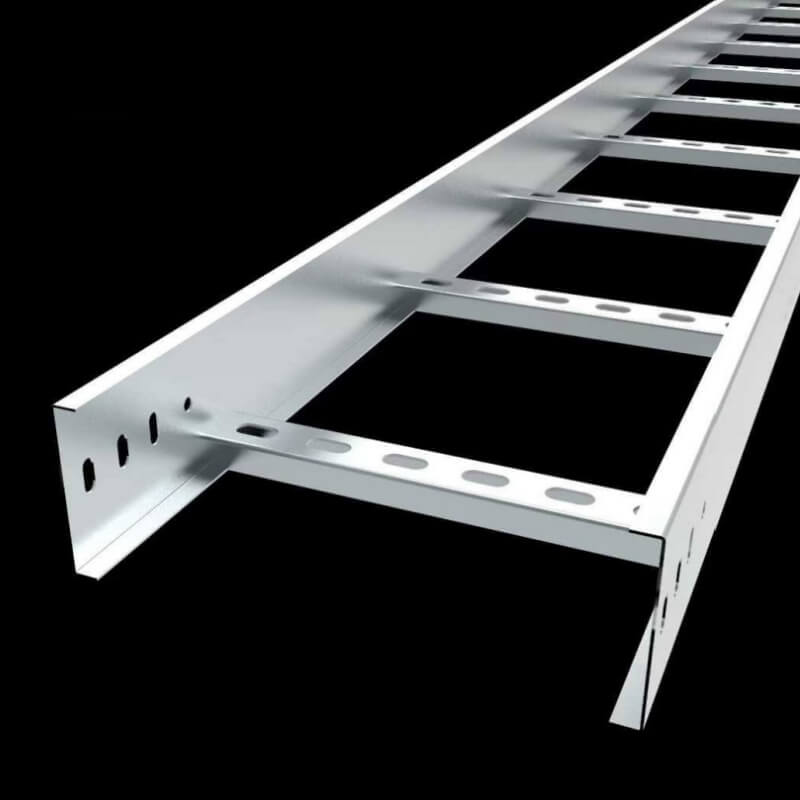

Different from conventional integral trough-type trays, the ladder cable tray adopts a combined structure of two side rails and multiple horizontal rungs. The high-strength side rails ensure overall rigidity and anti-deformation ability, while evenly spaced rungs provide stable support for heavy power cables. The open hollow structure abandons fully enclosed design, realizing zero heat accumulation and free air convection.

Winwin ladder trays adopt integrated bending and full welding process. All welding joints are polished smoothly without burrs, avoiding cable sheath scratch and insulation damage. The overall structural stability allows long-distance suspended installation without intermediate support density limitation, greatly simplifying on-site construction layout.

* Core Technical Advantages for Ladder Type Cable Trays

Super Heavy-Load Bearing Capacity

Thanks to the reinforced side rail and dense rung design, ladder cable tray far exceeds ordinary trays in load capacity. It is specially designed for laying large-diameter power cables, multi-loop high-voltage wires and heavy bundled cables. It maintains stable structural performance without bending or deformation under long-term heavy load, suitable for long-span suspension and high-altitude laying.

Convenient Installation & Maintenance

The hollow ladder design allows staff to observe cable operation status at any time. It supports convenient wiring inspection, cable replacement and daily maintenance without disassembling the whole tray body. Meanwhile, the lightweight open structure reduces overall project load and lowers construction difficulty for high-altitude and long-span installation.

*  Main Application Scenarios for Cable Ladders

Power Plants & Energy Station Projects for Cable Tray

Ideal for thermal power, wind power, photovoltaic energy storage and substation projects. The power cable tray meets the laying requirements of large quantities of high-voltage power cables with stable load-bearing and efficient heat dissipation.

Petrochemical & Heavy Industrial Zones

Suitable for chemical plants, oil refineries, steel mills and heavy manufacturing workshops. With optional high-grade anti-corrosion finishes, it resists industrial gas and chemical erosion for long-term stable operation.

Urban Comprehensive Pipe Corridors

Used for large-scale municipal pipe corridor power wiring, supporting long-span suspension installation and centralized cable management for urban power grid infrastructure.

Port & Coastal Industrial Projects

Matched with ZAM or stainless steel finish, ladder trays adapt to coastal high salt-spray environments, providing durable heavy-duty cable support for port machinery and offshore auxiliary facilities.

* Complete Winwin Group Cable Supporting Accessories

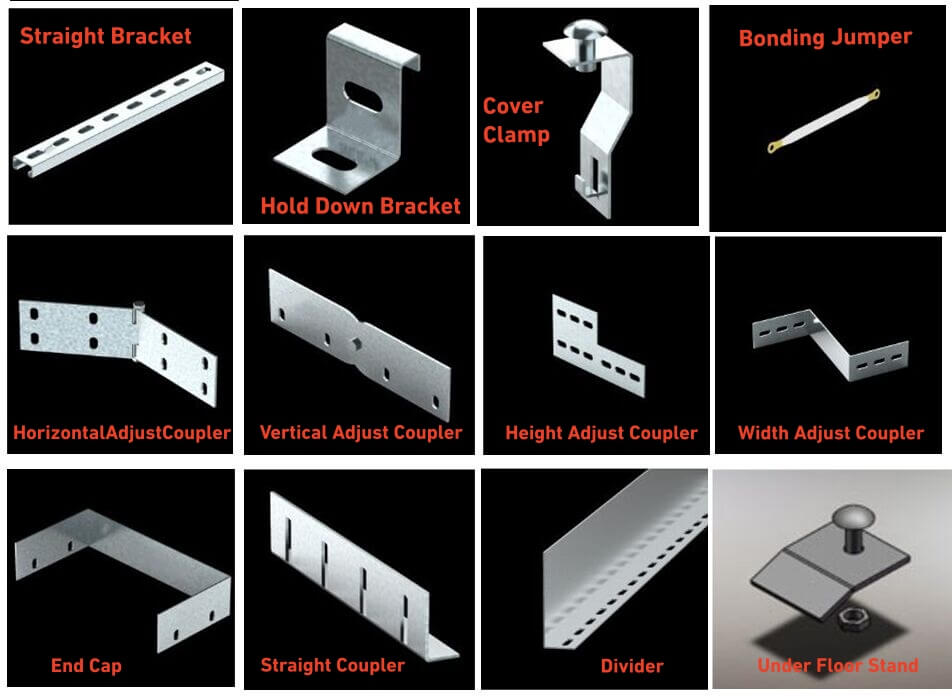

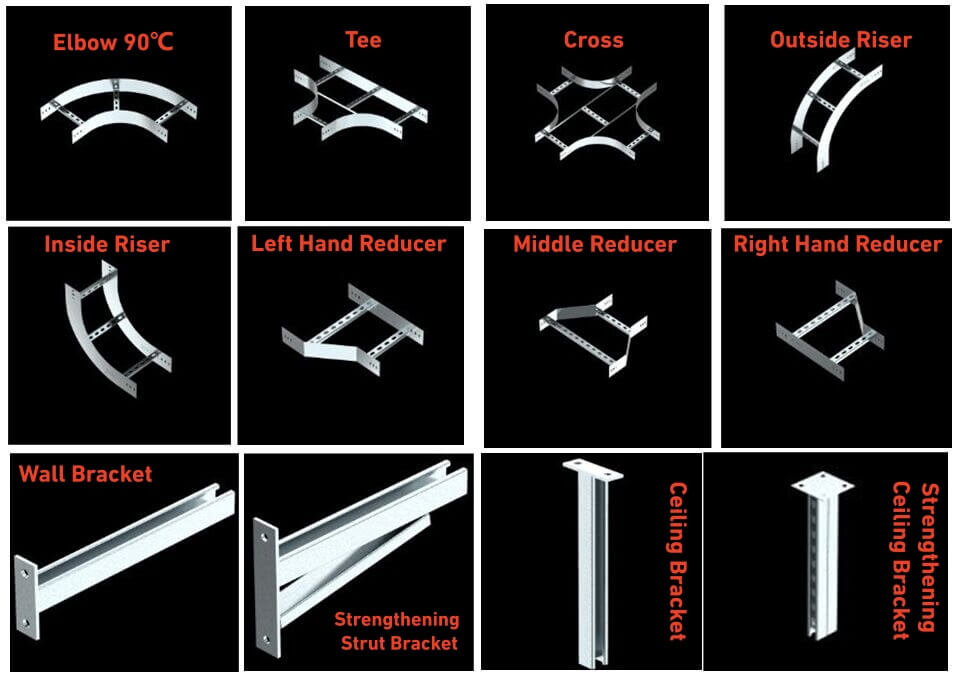

Fujian Winwin Group provides full sets of matching accessories for ladder cable trays, including horizontal elbows, vertical tees, cross connectors, reducers, suspension hangers, fixing bolts and earthing jumpers. All accessories are processed with the same surface finish as the main tray body, ensuring uniform anti-corrosion performance and perfect on-site assembly. We support non-standard size customization and special structural design according to project drawings.

* Conclusion for Fujian Winwin Group Cable Ladder

With heavy-load capacity, superior heat dissipation and flexible installation advantages, ladder cable tray is irreplaceable in high-power industrial and municipal power engineering. Winwin adheres to strict production standards and diversified surface treatment solutions, providing global clients with high-stability, long-service-life and cost-effective ladder cable tray systems for various complex engineering scenarios.
