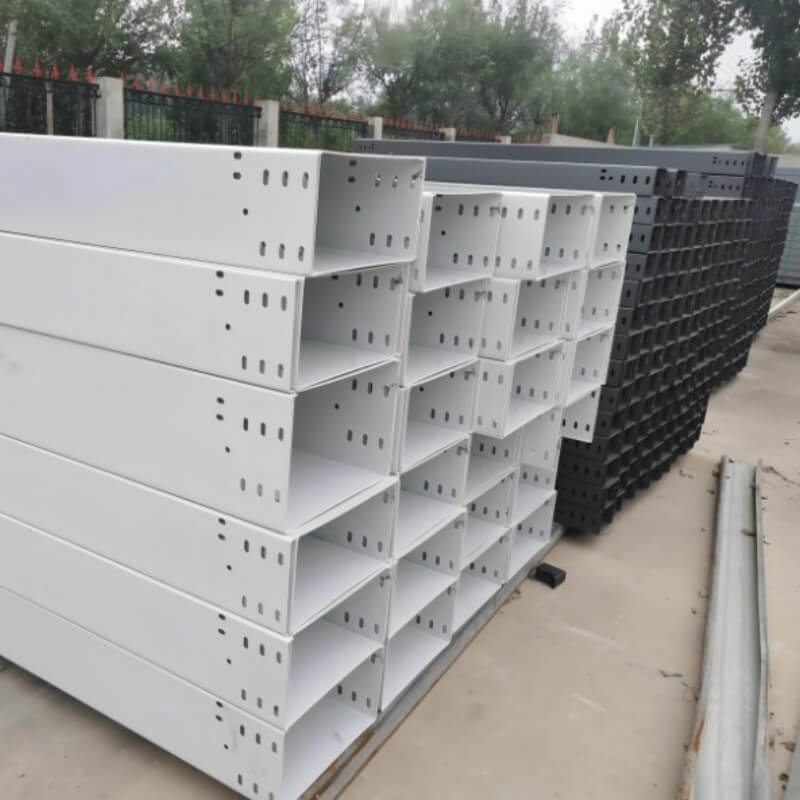

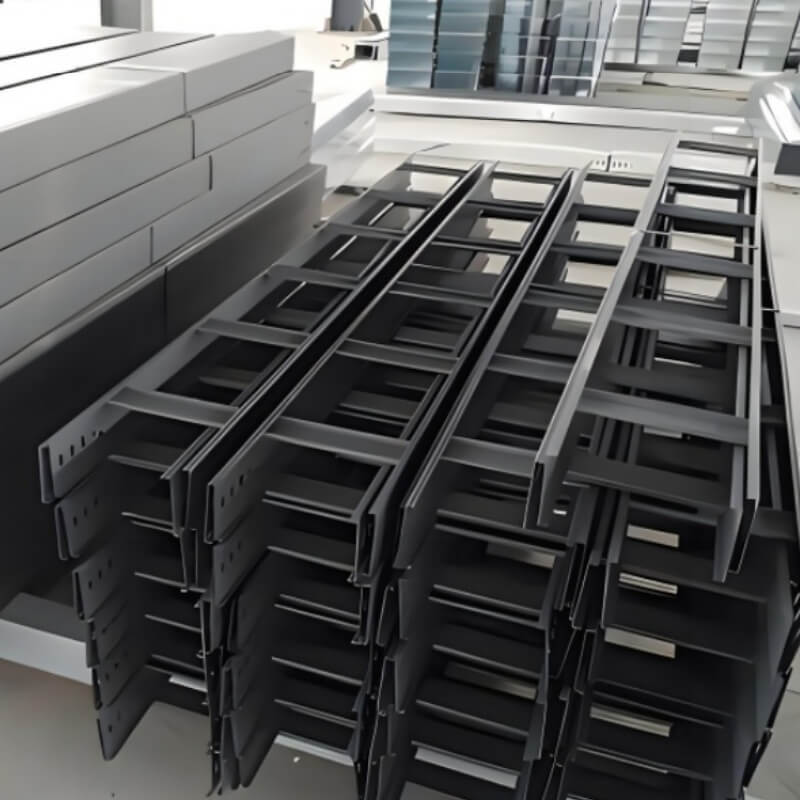

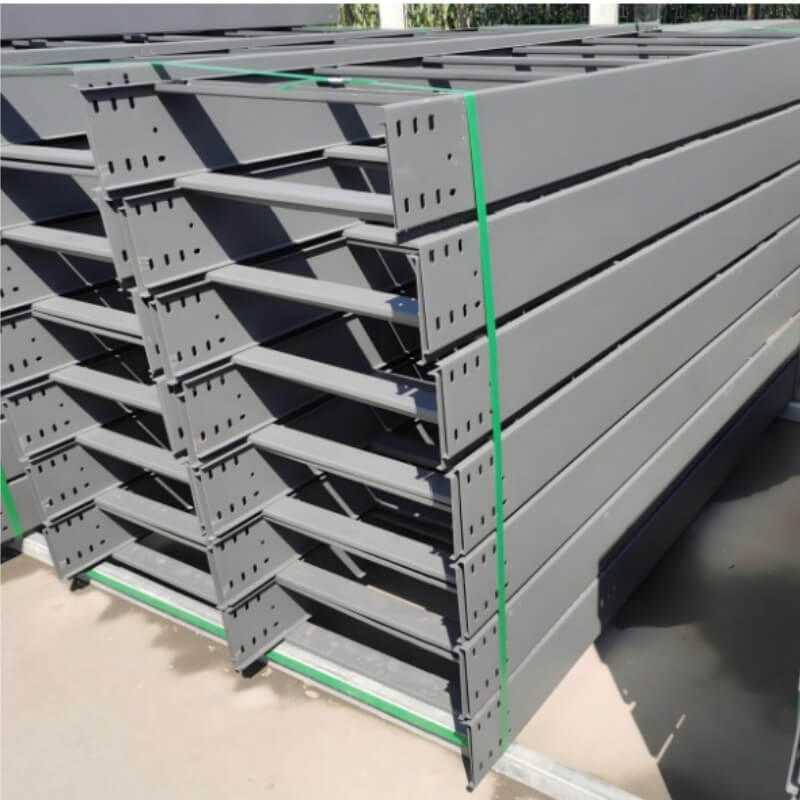

Powder Coated Ladder Cable Tray | Anti-Rust Color Spray Paint Custom Cable Ladder for Cleanroom & Commercial Projects

Winwin Powder Coated Cable Ladder owns excellent heavy-load structural performance, scratch-resistant colored coating and neat decorative appearance, designed for high-standard visible heavy cable management systems. The dense electrostatic powder coating provides upgraded anti-oxidation and stain-resistant performance, while customizable colors match diversified indoor architectural decoration styles.

Designed for high-end aesthetic and clean working environments, Powder Coated Cable Ladder enables safe classified heavy cable arrangement, easy on-site installation and surface cleaning. It is widely used in large exhibition halls, airport terminals, upscale commercial complexes, clean industrial workshops and public transit power cabling systems.

Focusing on heavy bearing capacity, premium surface protection and unified visual effect, this colored cable ladder tray combines functionality and ornamental value, ideal for heavy-duty wiring projects with strict appearance and indoor environmental requirements.

Material & Finish available

Different material and surface finish for cable trays:

(1)Pre-Galvanized / PG / GI – for indoor use to AS1397

(2)Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461

(3)Stainless Steel SS304 / SS316 /SS316L

(4)ZAM-275g/m2

(5)Powder Coated – for indoor use to JG/T3045

(6)Fire Rated to AS3013:2005

(7)Electrolytic Polishing – for Stainless Steel use

(8)Mill / Mild /Plain Steel to ISO 4995

(9)Aluminum to AS/NZS1866

(a)   Aluminum plate;

(b)   Aluminum profile;

(10)Fiberglass Reinforced Plastics / FRP /GRP or composite

 (a)   Fiberglass Reinforced Plastics without steel lining;

 (b)   Fiberglass Reinforced Plastics with steel lining;

(11)Polymer

Drawing for Powder Coated Cable Ladder

WINWIN Powder Coated Cable Ladder comes with customizable colored electrostatic coating, multiple structural depths and classified load ratings, designed for neat, visible long-distance heavy cable support for high-standard buildings.

It is widely specified for upscale commercial complexes, airport transit hubs, clean workshops, exhibition centers and indoor public infrastructure requiring unified aesthetic and clean cable management.

Pre-fabricated straight ladder sections cooperate with color-matched fittings, realizing flexible directional turning, level shifting and cable width adjustment with standard bends, tees, risers and reducers.

This finished cable ladder is tested compliant with NEMA 1 and NEMA 2 performance standards, suitable for dust-free, decorative indoor electrical installation environments.

Type of Rail for Spray Paint Cable Ladder

Bending Components And Brackets for Ladder Cable tray.

Schematic Diagram Of Cable Ladder Layout

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

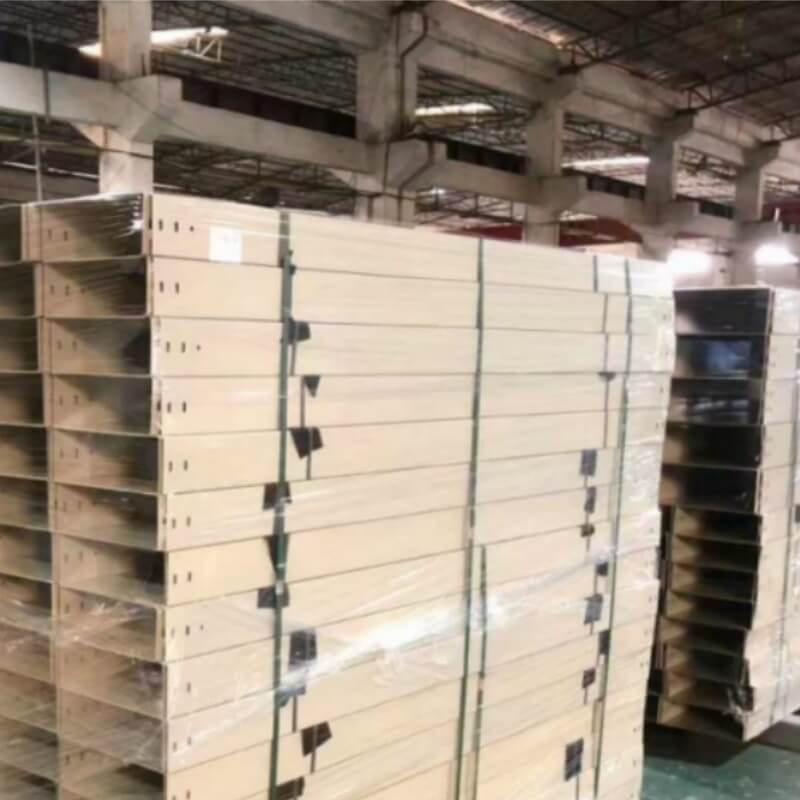

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
