Modern municipal, commercial, and landscape drainage projects increasingly prioritize invisible, high-efficiency, and safe drainage solutions. Unlike traditional open trench drains with bulky grates, slot drain features a slim linear slit design, delivering seamless integration with pavement, floor, and landscape surfaces. As a mainstream upgraded linear drainage system compliant with EN1433 standards, slot drain balances superior drainage capacity, neat appearance, traffic safety, and low maintenance costs, becoming the preferred solution for high-end architectural and municipal engineering projects.

What Is a EN1433 Slot Drain System?

A slot drain is a narrow linear slot drainage structure composed of a polymer concrete channel body or PP plastic trench channel and a precision stainless steel slot drain cover. Instead of large open grates, it adopts a continuous slim slit outlet, realizing hidden and integrated drainage. The overall structure is flush with the ground, without raised edges or exposed bulky accessories, perfectly solving the problems of traditional drains such as unsightly appearance, tripping hazards, and easy debris accumulation.

Winwin customized slot drain covers are independently produced with precise laser cutting and integral forming technology. The uniform slot spacing ensures stable water intake speed while effectively blocking large impurities, achieving the dual effect of rapid drainage and anti-blocking performance.

Core Advantages of Winwin Slot Drain

1. Flush & Aesthetic Hidden Drainage Channel Design

The slot drain’s ultra-narrow linear structure blends naturally with road surfaces, plazas, and landscape floors. No protruding grates damage the overall architectural consistency, making it widely adopted in high-end commercial plazas, scenic spots, municipal roads, and boutique residential projects. The streamlined layout greatly improves the overall aesthetic grade of the engineering site.

2. Higher Safety & ADA Compliance

Traditional wide-grate drains easily cause jamming risks for high heels, strollers, and wheeled equipment. The slim slot design avoids safety hazards effectively. The flush installation eliminates height differences, ensuring smooth pedestrian and vehicle passage and fully meeting public area safety and accessibility standards.

3. Ultra-High Drainage Efficiency

Continuous linear water intake enables slot drains to capture surface water rapidly without water accumulation dead zones. Even under heavy rain conditions, it maintains stable drainage speed, effectively solving road ponding and slippery problems. The smooth inner wall of the polymer concrete channel or PP trench channel further accelerates water flow and improves overall drainage efficiency.

4. Low Maintenance & Anti-Blocking Performance

The narrow slit structure blocks large leaves, stones, and garbage, reducing blockage probability. The smooth non-absorbent channel interior is not easy to adhere to sediment and sludge. Daily cleaning only requires simple flushing and manual sweeping, greatly saving later maintenance time and labor costs compared with traditional trench drains.

5. Strong Corrosion & Weather Resistance

Winwin slot drain adopts high-strength polymer concrete channel body or PP plastic trench drain and 304/316 stainless steel slot cover. The whole system features zero water absorption, acid and alkali resistance, salt spray resistance, and UV aging resistance. It adapts to harsh environments such as coastal cities, chemical industrial parks, and rainy and humid areas, with a long service life and stable overall performance.

EN1433 Load Class Compliance

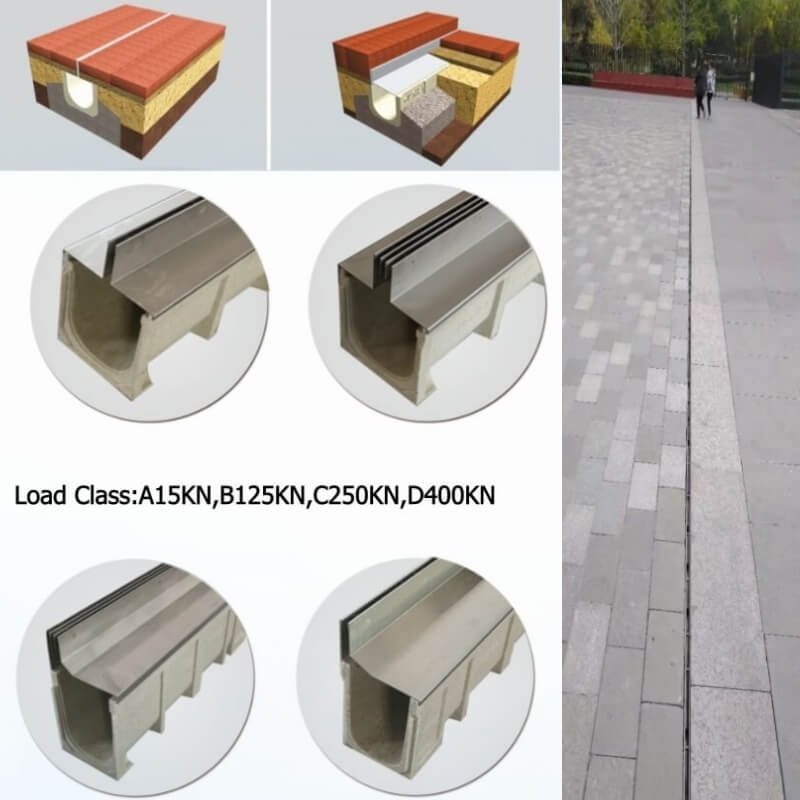

Winwin slot drain systems are strictly manufactured in accordance with EN1433 European drainage standards, supporting full load grades from A15 to D400. It covers most conventional civil and municipal scenarios:

•A15-B125: Pedestrian streets, parks, residential landscapes, shopping mall indoor floors

•C250: Commercial parking lots, community driveways, pedestrian auxiliary roads

•D400: Urban municipal roads, highway sidewalks, light traffic passages

Typical Application Scenarios

Thanks to its aesthetics, safety and practicability, slot drain is widely used in diversified high-standard projects:

•Urban municipal road renovation and new road construction

•High-end commercial plazas, exhibition centers, and stadiums

•Scenic landscape roads and waterfront pedestrian platforms

•Residential community driveways and landscape floors

•Factory workshops, supermarkets, and public indoor drainage areas

Conclusion

As an upgraded generation of linear drainage products, slot drains perfectly balance engineering practicability and architectural aesthetics. With hidden installation, high safety, efficient drainage, and low maintenance advantages, it has gradually replaced traditional open grate drains and become the mainstream choice for modern high-quality infrastructure construction.

Winwin SlotDrain provides full EN1433 standard slot drain systems, with independently customized stainless steel slot covers and complete polymer concrete channel bodies and PP Plastic trench channels. Support personalized slot width, size and load grade customization to meet different municipal, commercial and landscape project requirements.

Published by Fujian Winwin Group | Professional EN1433 Drainage System Manufacturer
