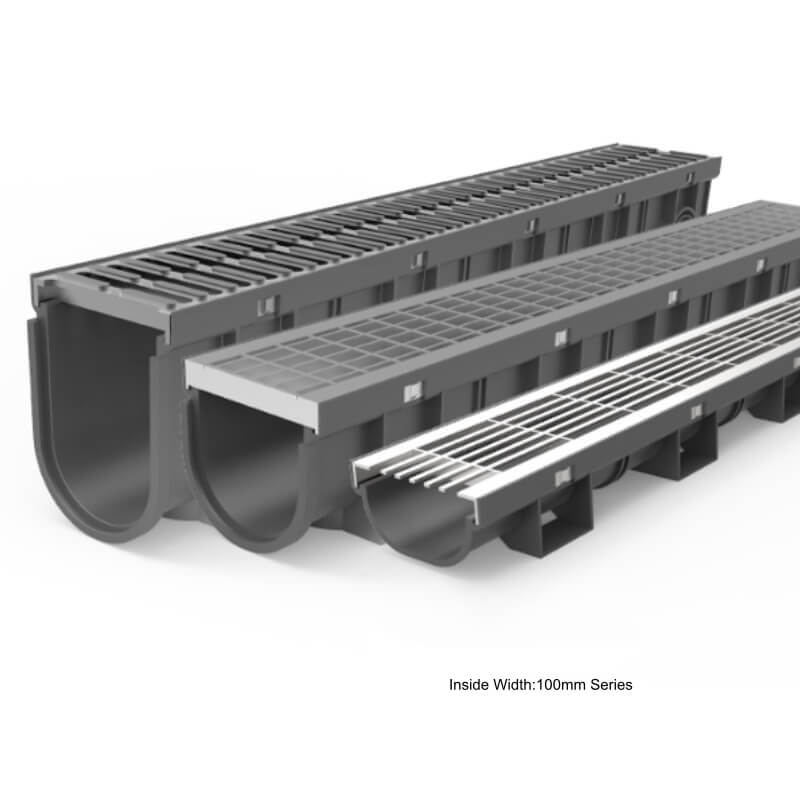

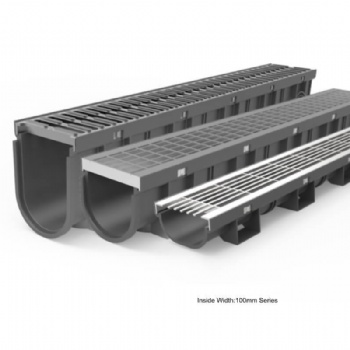

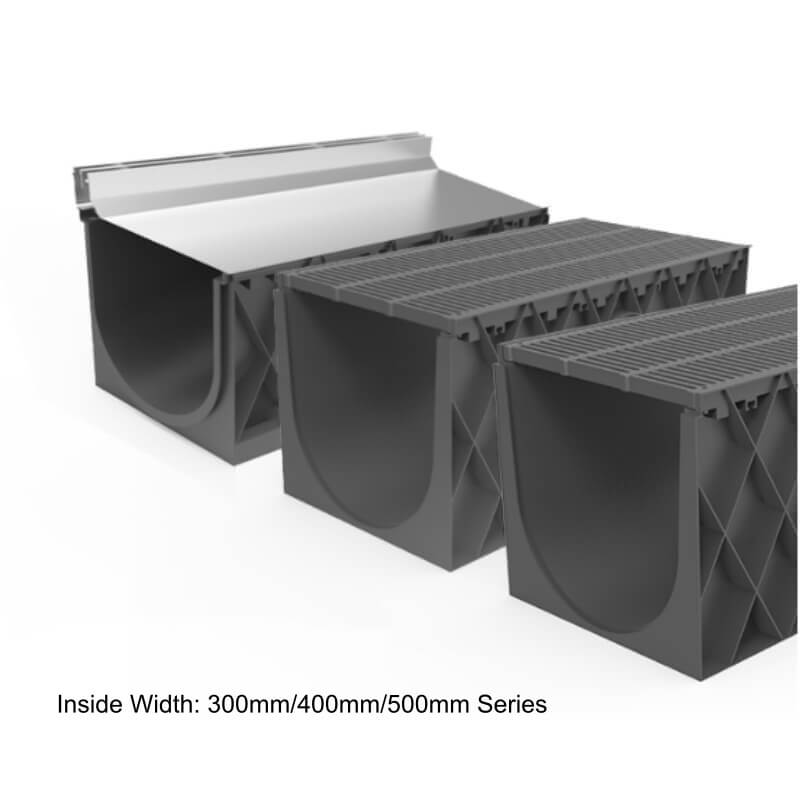

HDPE Drainage Channel With Drainge Cover Load Class Up To D400

HDPE or PP or  Plastic Drainage Channel with Brickslot Drain Cover and Plastic Drainage Cover

• Winwin PP plastic drainage channels are integrally injection molded from high-density modified polypropylene raw material. Featuring lightweight rigid monolithic structure, the plastic channel has strong anti-crack toughness and stable bearing performance. It is frost-resistant, fully waterproof, decay-free, and highly resistant to diluted acids, alkalis, garden sewage and underground soil corrosives, requiring zero anti-rust treatment for long-term buried application.

• It is equipped with dual optional brickslot drainage components, including standard steel brickslot covers and light ducty plastic or PP gratings. Adopting ground-flush concealed brickslot layout, it is embedded seamlessly between paving bricks and floor tiles, with only a 10–20mm narrow drainage slot exposed. It maintains unified pavement aesthetics, delivers hidden linear water collection, and suits high-grade brick paving decorative projects perfectly.

• The complete composite drainage system conforms to EN 1433 and EN 124 international drainage standards, with load capacity covering A15 KN to D400 KN. Steel brickslot for pedestrian areas, while cast iron brickslot gratings for frequent light vehicle rolling. Widely used for villa courtyards, brick landscape parks, commercial paver plazas, community driveways and light-duty access roads, it supports easy on-site cutting, fast installation and low daily maintenance.

Drainage System Configuration

The advantage of PP Trench Channel

Ease of Assembly

The modular design of drain channel is made of PP, it is 80% lighter than the traditional concrete channel. This makethe assembly and installation fast, easy, saving time and Money.

Recyclable

Winwin PP drainage channels are made of 100% recyclable plastic material that can be used again in the manufacturing process,therefore protecting the environment and future generations.

Hydraulic Performance

The smooth rounded internal surface of the Winwin water drainage systems creates higher rates while allowing a self cleaning action thus avoiding the accumulation of silt deposits.

Chemical Resistance

Due to Winwin’s superior Polypropylene construction,it is able to resist most chemical agents,acids,salts,alkaline,fuels,oils,fats,etc.

High Strength

The advanced construction of the Winwin drainage channel gives it greater structural rigidity,protecting it from damage during and after installation.

Lightweight

Being manufactured from lightweight material,has the added advantage of being easier th handle,transport,and install.

Lockdown

4 point security lockdown for Anti-Theft peace of mind.

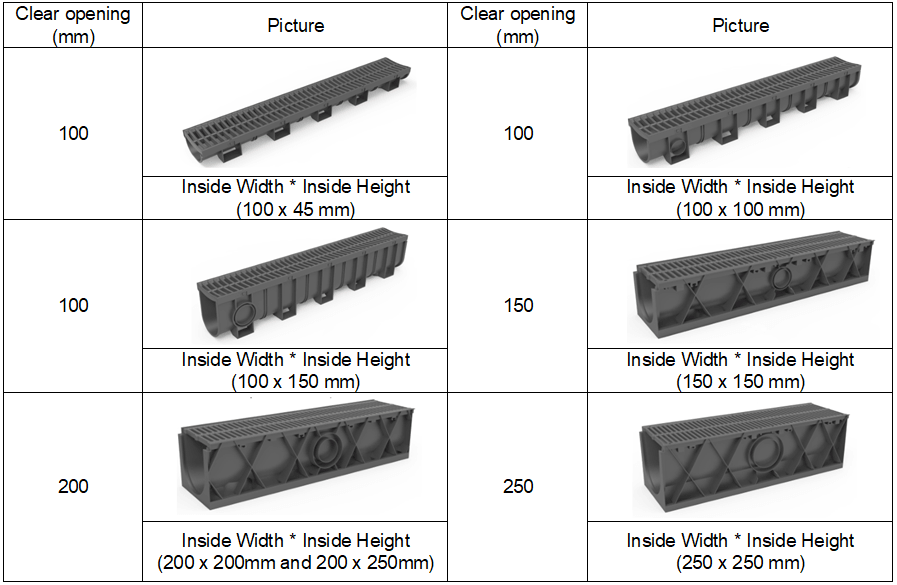

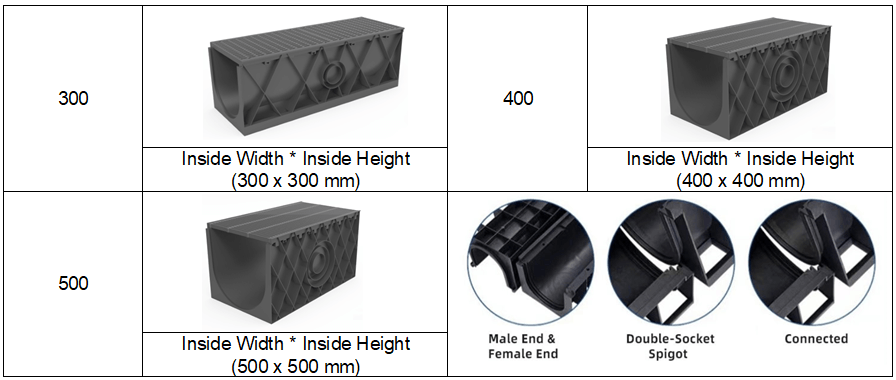

Size Chart for PP Trench Channel

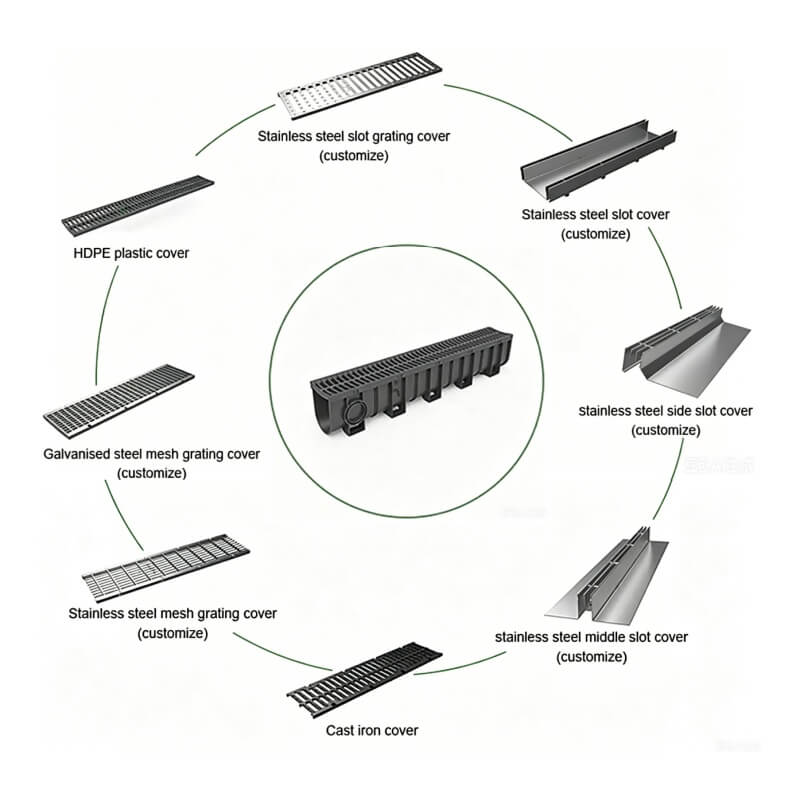

Various Grating Covers for PP Channel

HDPE drainage channels can be equipped with HDPE covers, steel covers, slot drains, and ductile iron covers. The load-bearing capacity varies depending on the cover material. Our HDPE drainage channels are compatible with covers ranging from A15KN to D400 loading class, meeting different construction and infrastructure requirements.

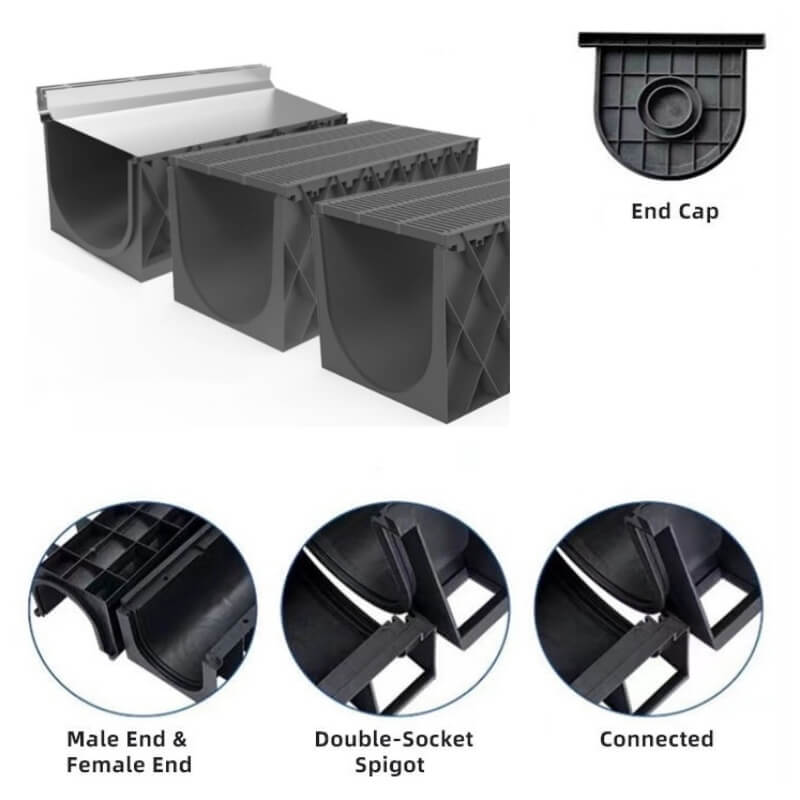

HDPE Channel accessories

Applications for HDEP Drainage Channel

Winwin drainage systems are widely used across residential, commercial, industrial and agricultural applications, including:Bungalows, villas, apartments, condominiums, offices, gardens, pedestrian areas, cycle lanes, driveways, parking lots, highways, urban roads, public plazas, industrial zones, logistics parks, wharves, airports, botanical gardens and infrastructure projects.They are the ideal choice for municipal engineering, urban infrastructure, traffic construction, civil engineering and various industrial & commercial projects.

Chart of Load Class

Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Professional manufacturer and exporter of complete stormwater and wastewater drainage system solutions. Our comprehensive product portfolio covers polymer concrete or resin concrete drainage channels, linear trench drains, HDPE or PP or plastic drainage channels, polymer concrete or resin concrete trench channels, slot drain, kerb drains, monolithic drainage channel, sumps, catch basins, as well as a full range of trench grates and access covers including ductile cast iron grates, stamped steel trench covers, slotted steel covers, manhole covers and recessed access covers.

Winwin drainage products are strictly manufactured and tested in compliance with CE EN 1433 and EN 124 standards, supporting full load classes from A15 (1.5 tons) up to F900 (90 tons).

Winwin integrated drainage solutions are widely adopted for municipal roads, parking lots, logistics parks, commercial plazas, industrial zones, hospitals, landscape projects and other public infrastructure. They apply to building drainage, municipal water supply & drainage, road works and industrial floor drainage.Compliant with international quality standards, our products effectively prevent waterlogging and safeguard the structure of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.

Welcome to contact us for long-term win-win cooperation.
