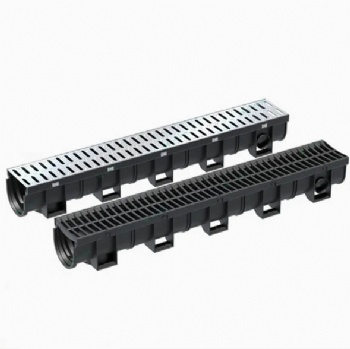

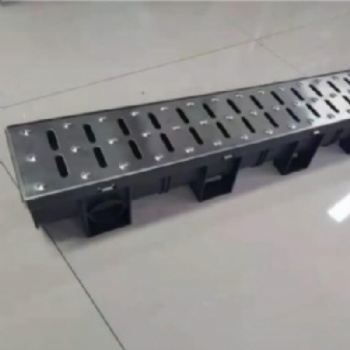

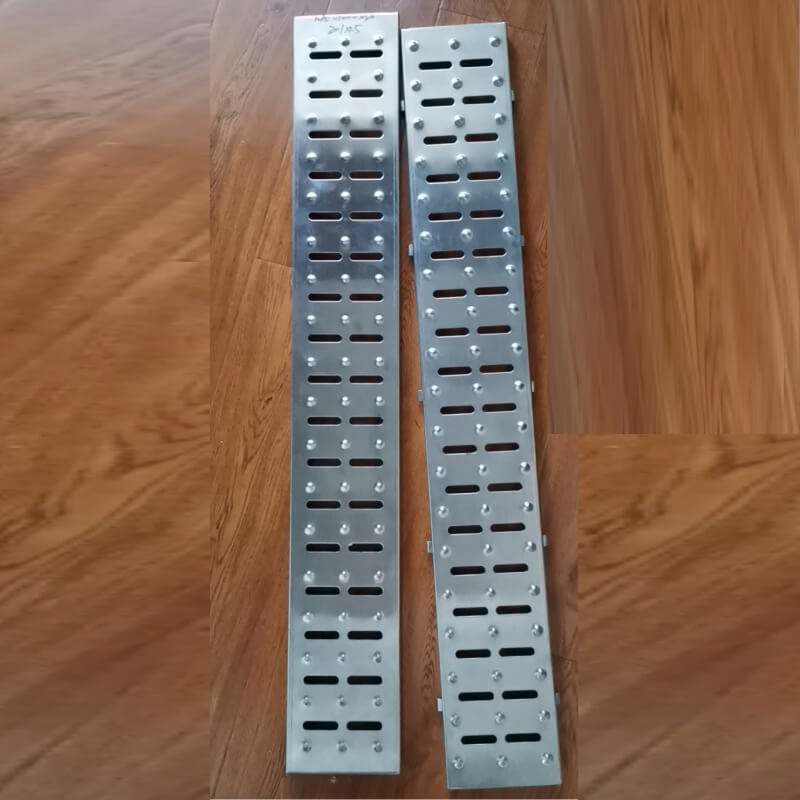

A15 Stamped Trench Cover with PP Drainage Channel Factory and Sizes

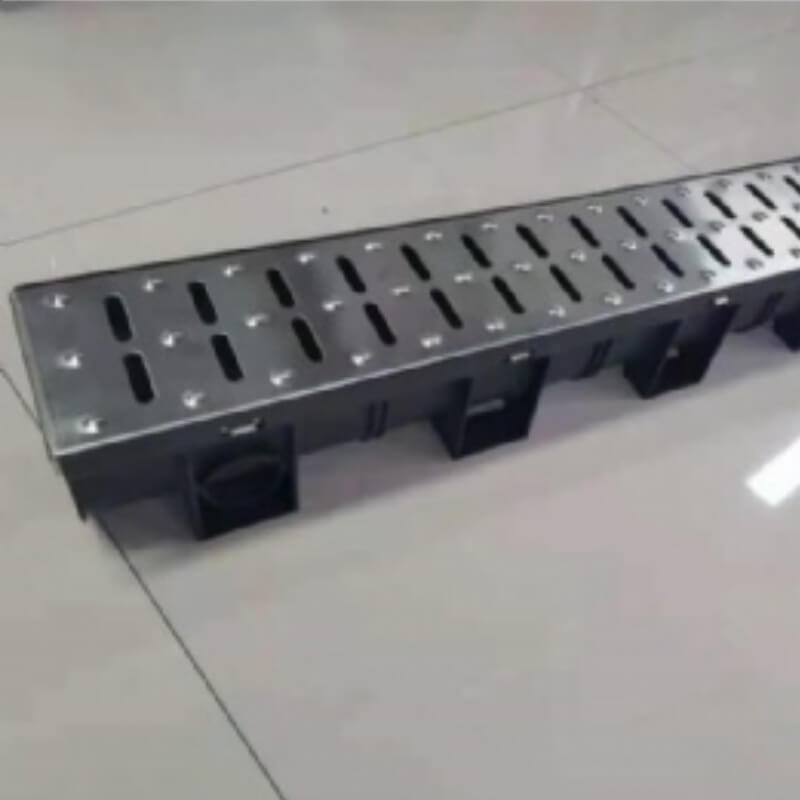

Winwin A15 stamped trench cover matched PP drainage channel system is a lightweight, high-efficiency linear drainage solution fully compliant with EN 1433 standard. Rated for A15 light pedestrian load capacity, the stamped steel cover features precise stamping molding, uniform drainage holes and excellent structural stability, effectively supporting daily pedestrian traffic without deformation. Paired with high-strength PP channel body, the whole system delivers smooth water flow with low resistance, rapidly discharging rainwater and surface ponding to keep walkways, landscapes and residential grounds dry and tidy. Optimized integrated structure ensures perfect fitting between cover and channel, avoiding displacement, tilting or trip hazards during long-term use.

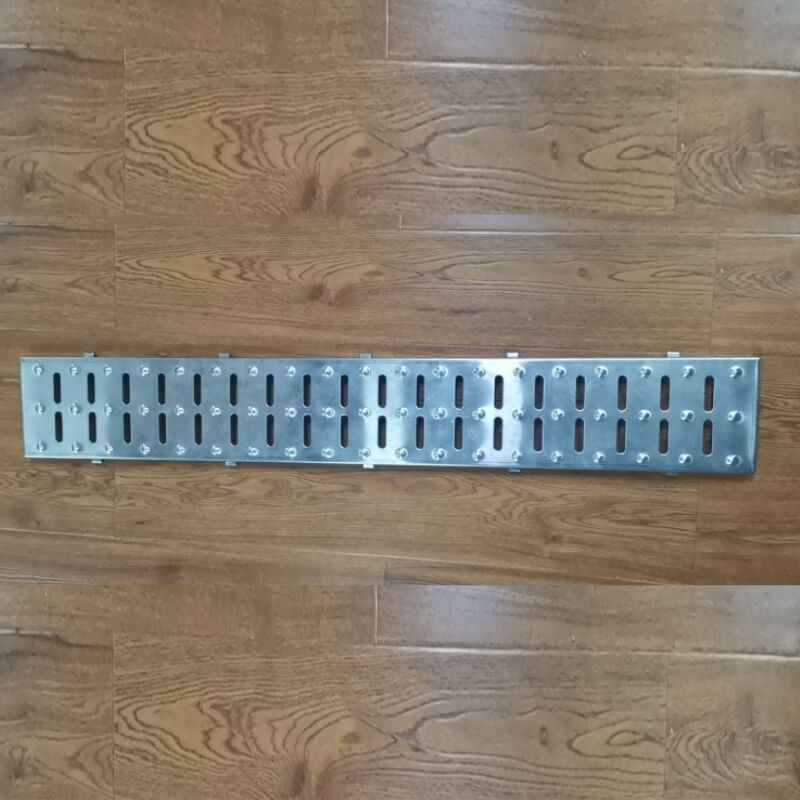

Crafted with premium modified polypropylene material, the PP drainage channel boasts outstanding corrosion resistance, anti-aging performance and frost resistance, far exceeding traditional concrete and plastic channels in durability. The integral molded channel body features seamless inner walls that prevent dirt adhesion and sediment accumulation, greatly reducing daily cleaning and maintenance costs. Complementary A15 stamped trench cover adopts anti-rust surface treatment, effectively resisting oxidation, rain erosion and daily abrasion in outdoor environments. The combination of flexible PP channel and rigid stamped steel cover balances lightweight installation and stable load-bearing performance, realizing long service life and maintenance-free operation for most light-duty drainage projects.

This A15 stamped trench drain system is widely applicable for various light-traffic scenarios, including residential community walkways, garden landscapes, plaza pavements, pedestrian streets, and building peripheral drainage areas. Featuring modular design, the PP drainage channel is lightweight and easy to cut and assemble, enabling fast on-site installation and shortening construction cycles. The standard A15 load grade meets all pedestrian area drainage requirements, with neat appearance and flexible adaptability to various pavement styles. It is a cost-effective, reliable and aesthetic drainage solution for civil construction, landscape engineering and municipal light-duty drainage projects worldwide.

Drainage System Configuration

The advantage of PP Trench Channel

Ease of Assembly

The modular design of drain channel is made of PP, it is 80% lighter than the traditional concrete channel. This makethe assembly and installation fast, easy, saving time and Money.

Recyclable

Winwin PP drainage channels are made of 100% recyclable plastic material that can be used again in the manufacturing process,therefore protecting the environment and future generations.

Hydraulic Performance

The smooth rounded internal surface of the Winwin water drainage systems creates higher rates while allowing a self cleaning action thus avoiding the accumulation of silt deposits.

Chemical Resistance

Due to Winwin’s superior Polypropylene construction,it is able to resist most chemical agents,acids,salts,alkaline,fuels,oils,fats,etc.

High Strength

The advanced construction of the Winwin drainage channel gives it greater structural rigidity,protecting it from damage during and after installation.

Lightweight

Being manufactured from lightweight material,has the added advantage of being easier th handle,transport,and install.

Lockdown

4 point security lockdown for Anti-Theft peace of mind.Side Snap-Lock Fastening System (Insert Self-locking).

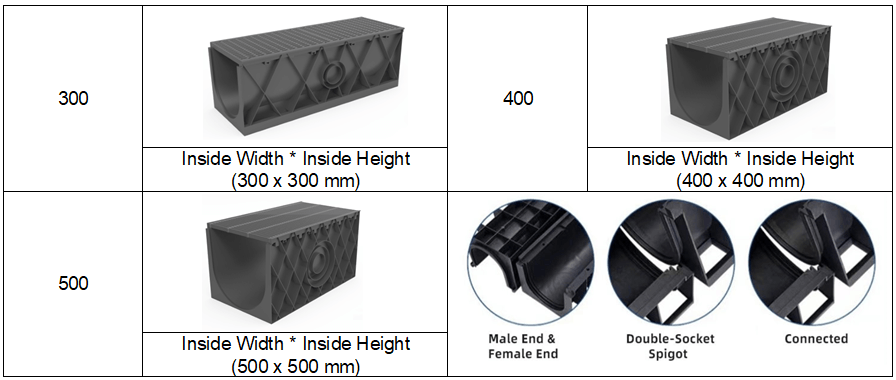

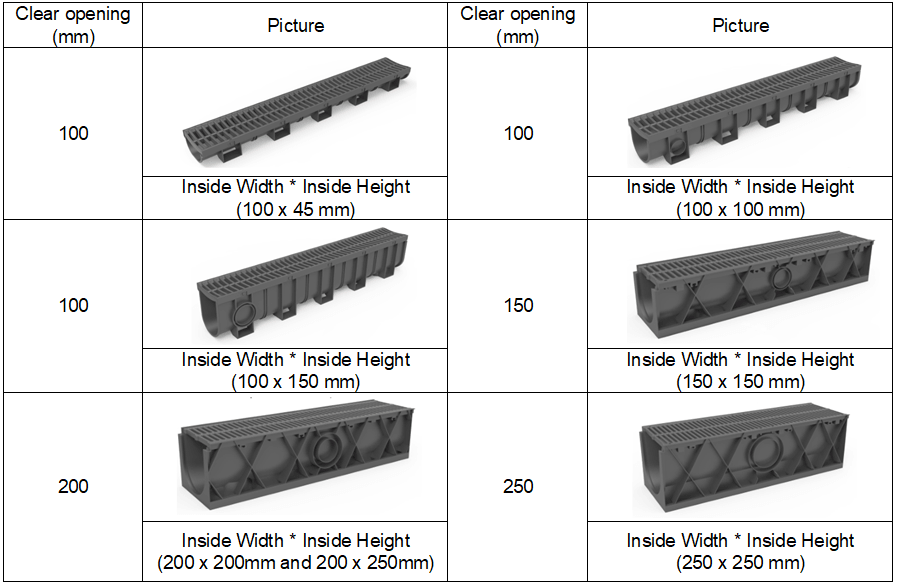

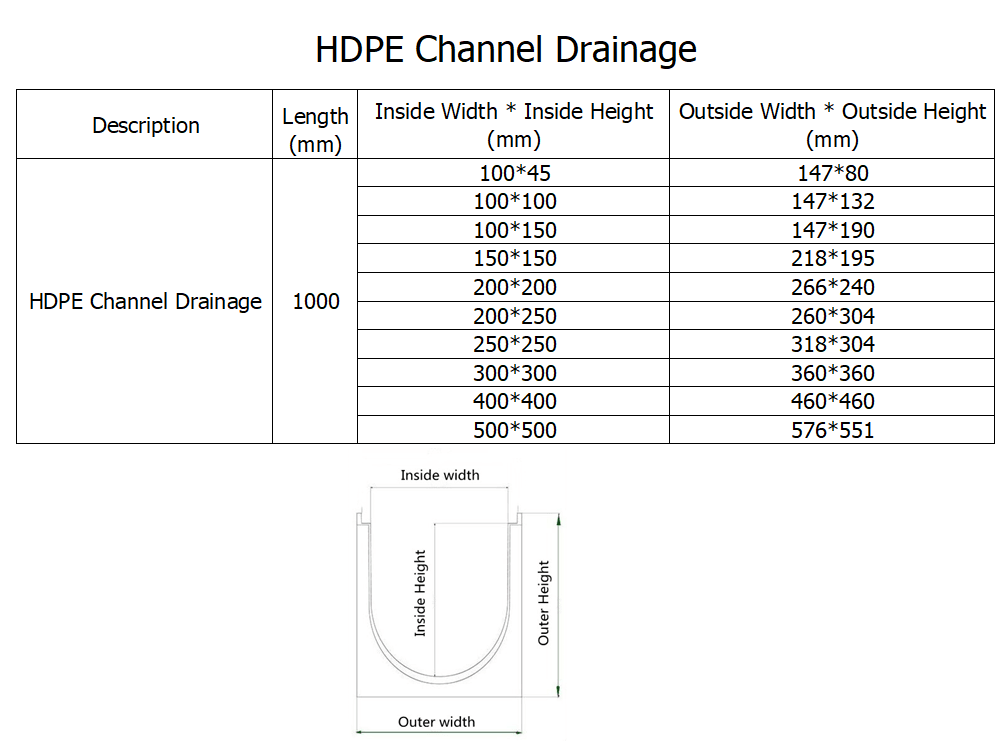

Size Chart for PP Trench Channel

Various Grating Covers for PP Channel

HDPE drainage channels can be equipped with HDPE covers, steel covers, slot drains, and ductile iron covers. The load-bearing capacity varies depending on the cover material. Our HDPE drainage channels are compatible with covers ranging from A15KN to D400 loading class, meeting different construction and infrastructure requirements.

HDPE Channel accessories

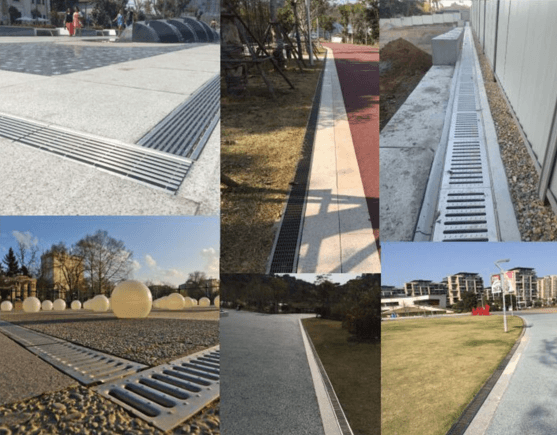

Applications for HDEP Drainage Channel

Winwin drainage systems are widely used across residential, commercial, industrial and agricultural applications, including:Bungalows, villas, apartments, condominiums, offices, gardens, pedestrian areas, cycle lanes, driveways, parking lots, highways, urban roads, public plazas, industrial zones, logistics parks, wharves, airports, botanical gardens and infrastructure projects.They are the ideal choice for municipal engineering, urban infrastructure, traffic construction, civil engineering and various industrial & commercial projects.

Chart of Load Class

Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Professional manufacturer and exporter of complete stormwater and wastewater drainage system solutions. Our comprehensive product portfolio covers polymer concrete or resin concrete drainage channels, linear trench drains, HDPE or PP or plastic drainage channels, polymer concrete or resin concrete trench channels, slot drain, kerb drains, monolithic drainage channel, sumps, catch basins, as well as a full range of trench grates and access covers including ductile cast iron grates, stamped steel trench covers, slotted steel covers, manhole covers and recessed access covers.

Winwin drainage products are strictly manufactured and tested in compliance with CE EN 1433 and EN 124 standards, supporting full load classes from A15 (1.5 tons) up to F900 (90 tons).

Our integrated drainage solutions are widely adopted for municipal roads, parking lots, logistics parks, commercial plazas, industrial zones, hospitals, landscape projects and other public infrastructure. They apply to building drainage, municipal water supply & drainage, road works and industrial floor drainage.Compliant with international quality standards, our products effectively prevent waterlogging and safeguard the structure of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.

Welcome to contact us for long-term win-win cooperation.
