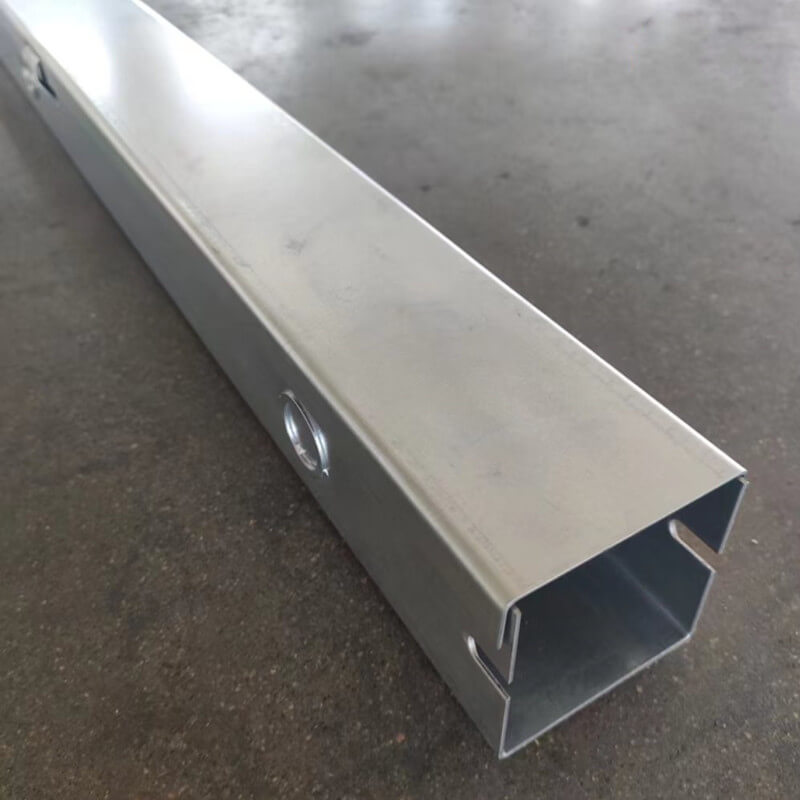

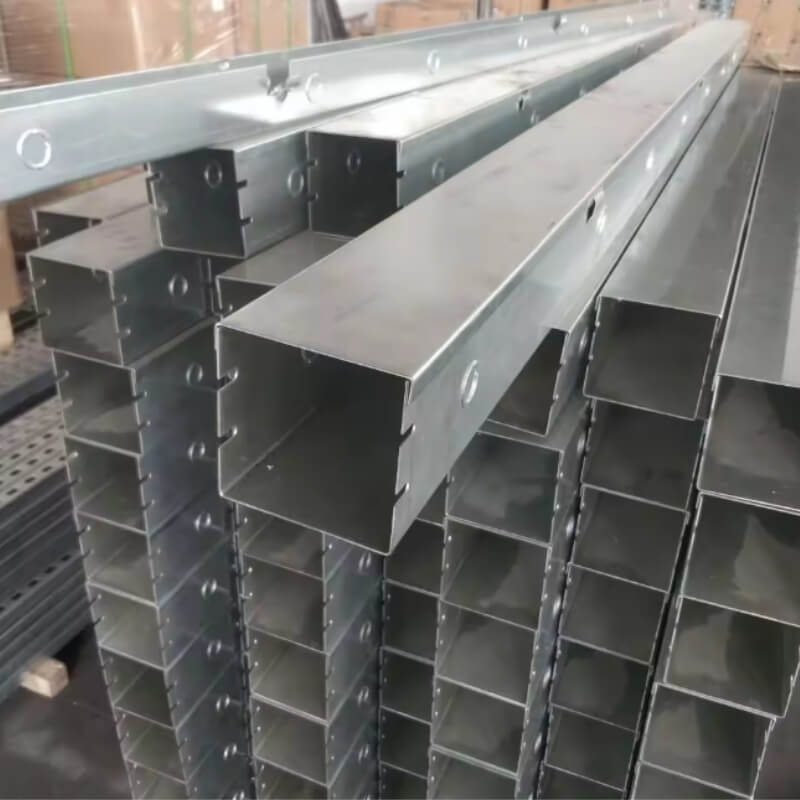

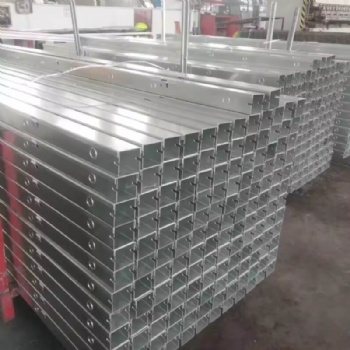

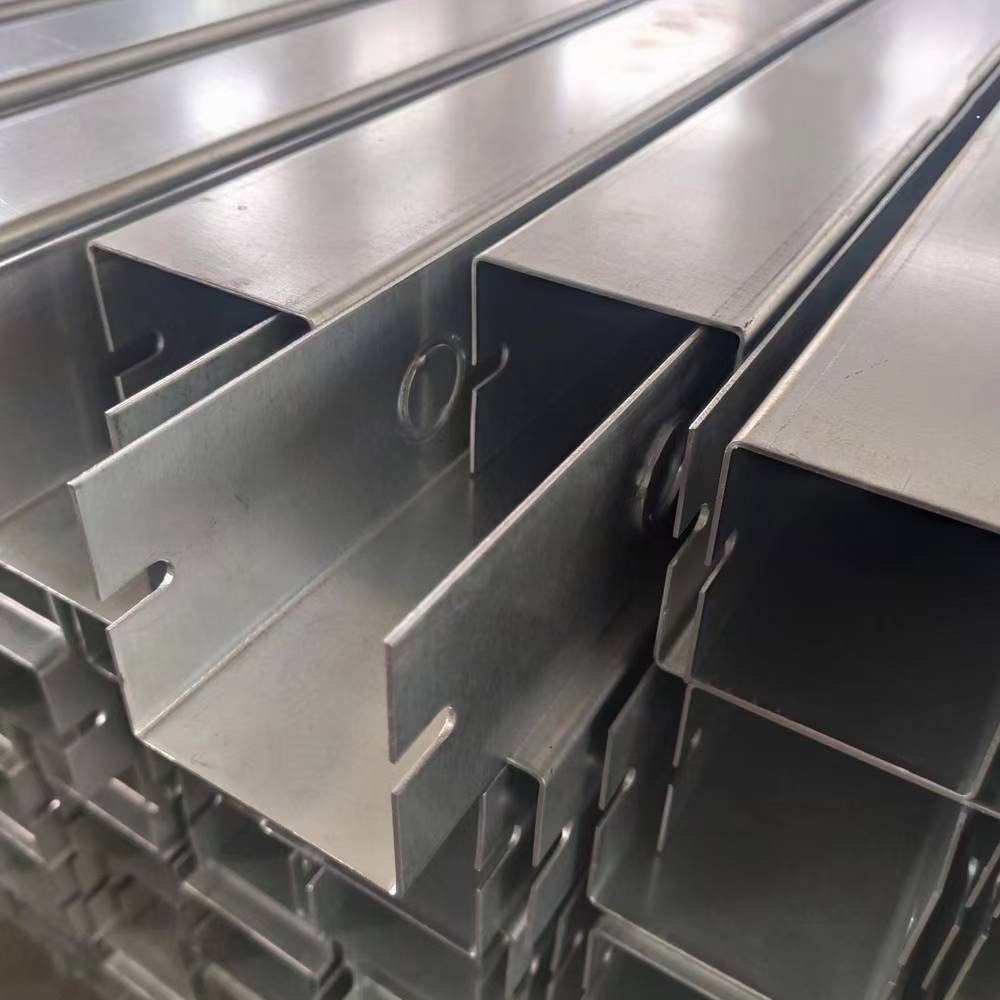

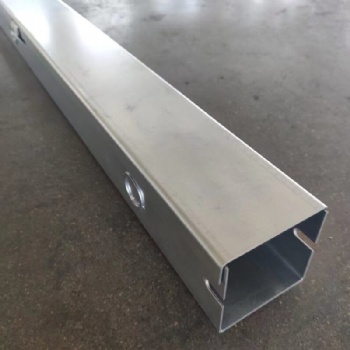

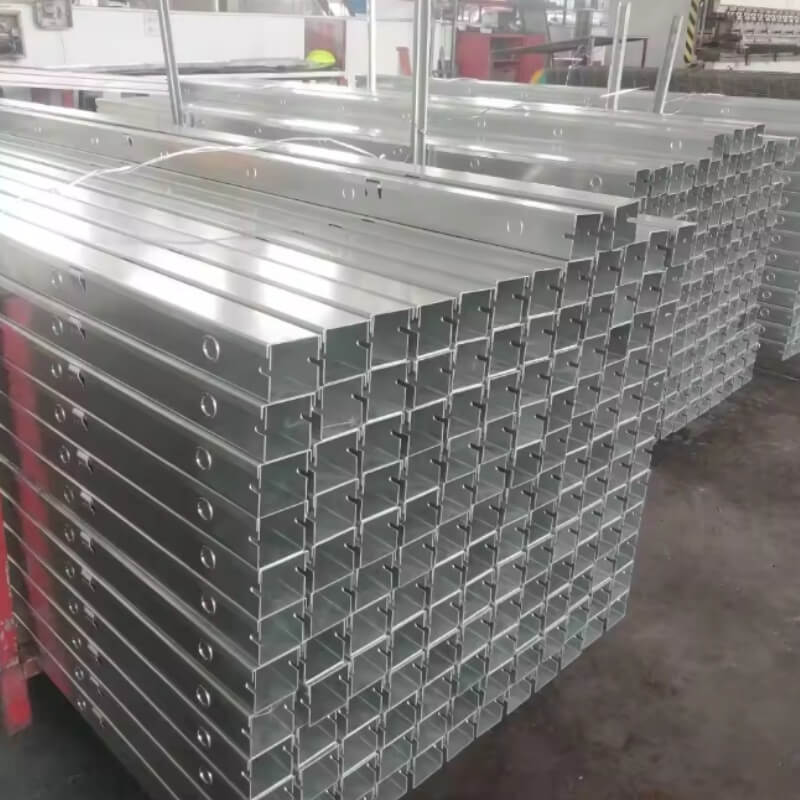

UL870 Listed Hinged Cover Wireway，Size 2.5 x 2.5 4 x 4 6 x 6 Inch| NEMA Standard Lay-In Steel Cable Wireway

Our Hinged Cover Wireway is a NEMA-compliant, heavy-duty steel cable containment solution designed for organized, protected, and accessible electrical wiring routing. Manufactured from high-quality pre-galvanized or powder-coated steel, this lay-in wireway features a practical one-piece hinged cover structure, allowing quick opening and closing without fully removing screws or covers. Engineered strictly in accordance with UL and NEMA VE1 standards, it delivers stable mechanical strength, excellent dustproof performance, and long-term anti-corrosion ability for indoor electrical distribution and industrial wiring systems.

The hinged lay-in design is the core advantage of our wireway system. Different from traditional screw-fixed wire ducts, the integrated hinge structure enables easy cable laying, inspection, maintenance, and wiring modification. The cover can be opened smoothly for full access to the internal channel, greatly improving on-site working efficiency and reducing installation and maintenance labor costs. Side walls are pre-punched with standard knockouts (available with or without knockouts upon request) for flexible branch wiring and easy connection with electrical enclosures, conduits, and other cable accessories. The tight-fitting cover structure effectively blocks dust, debris and minor moisture, ensuring neat and safe cable operation.

Built for versatile industrial and commercial applications, our NEMA hinged cover wireway supports clean cable management for factory workshops, power distribution rooms, data centers, commercial buildings, and mechanical equipment wiring projects. Multiple standard sizes and complete matching fittings ensure flexible layout for straight runs, turns, and cross connections. We support customized surface finishes, dimensions, and knockout positions to meet diverse project requirements. All products are fully certified, stable in quality, low in maintenance, and compliant with international engineering bidding and inspection standards.

Standard of Hinged Cover Wireway and Wiring Trough With/Without Knockouts

      (1) UL870 Listed

     (2) NEMA Standard

Application of Hinged Cover Wireway With/Without Knockouts

Hospital, clean room, supermarket, high-end commercial decoration

     (1) Houses runs of control and powder cable;

     (2) Used for cable and wire junction, distribution and termination;

Construction of Winwin Hinged Cover Wireway With/Without Knockouts

l  Wireway have cover which are attached with formed hinges on one side;

l  Wireway body has mounting holes on the back;

l  Wireway is available with or without knockouts on the top and bottom sides;

l  Wireway fittings have no knockouts,ends are available with or without knockouts;

l  Wireway body and cover are fabricated from code gauge steel;

Material & Finish Available

     (1) Pre-Galvanized / PG / GI – for indoor use to AS1397;

     (2) Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461;

     (3) Powder Coated or Paint – for indoor use to JG/T3045;

Drawing for Hinged Cover Wireway With/Without Knockouts

Powder Coated Hinged Cover Wireway With/Without Knockouts

• Powder coated steel wireway adopts professional hinged connection design. Its protective cover is connected to the tray main body via integrally formed side hinges, achieving tight sealed closure, easy flip opening, dustproof wiring protection and convenient cable overhaul.

• Standard reserved mounting holes are processed on the back panel of wireway body. Compatible with universal installation accessories, it supports diversified installation methods, firm fixation and orderly laying of power, communication and control cables.

• Top and bottom sides of the wireway body support customized knockout configuration. Clients can select wireway with reserved knockouts for branch wiring, or non-knockout solid wireway for fully enclosed sealed cable protection.

• All matched wireway accessories and connection fittings have no knockouts by default. Wireway end pieces are available in knockout-equipped and non-knockout versions, realizing standardized splicing and modified wiring layout as required.

• The whole wireway body and hinged cover are stamped from high-standard code gauge steel. After professional degreasing treatment, electrostatic powder coated finish is applied on surface, featuring scratch resistance, acid-base corrosion resistance, aesthetic uniform color and upgraded dustproof performance for industrial and architectural decorative wiring sites.

Powder Coated Wireway FAQ

1.Q: What RAL colors are available for powder coated wireway?

    A:  Any color, RAL colors support customized production.

2. Q: Will powder coating peel off after long time outdoor use?

     A: Not easily. Our epoxy powder tightly adheres to steel base, but we do not recommend long-term seaside outdoor usage.

3. Q: Can we customize custom color for bulk orders?

     A: Custom RAL colors are acceptable for bulk orders with reasonable MOQ.

Bending Components And Brackets for Hinged Cover Wireway With/Without Knockouts

We produce and supply all kinds of bending components, bracket and other wireway accessories.

Schematic Diagram Of Hinged Cover Wireway With/Without Knockouts

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
