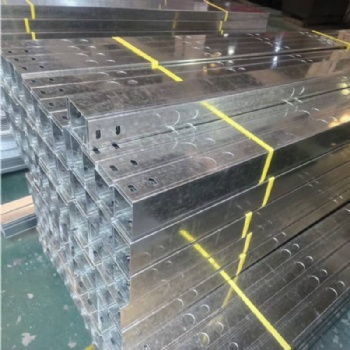

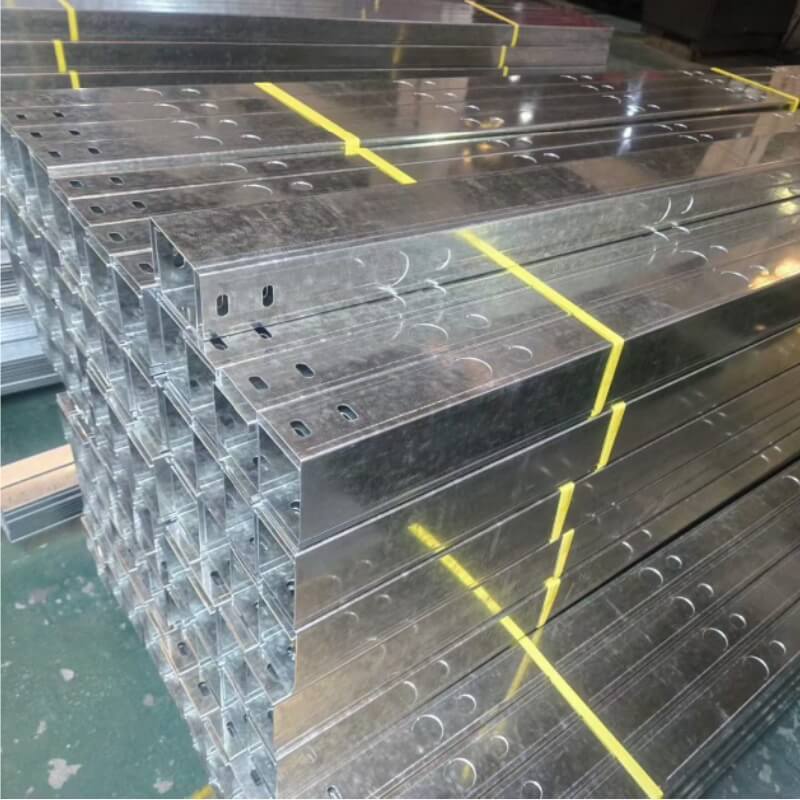

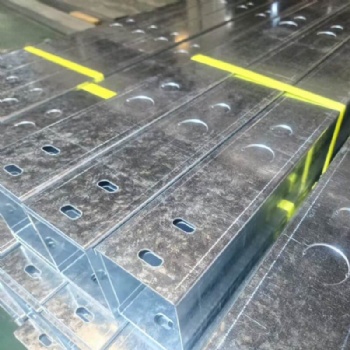

Steel Solid Enclosed Cable Raceway with Knock‑outs and Bolt‑Locking System

Steel solid enclosed cable raceway equipped with knock‑outs and bolt‑locking system.

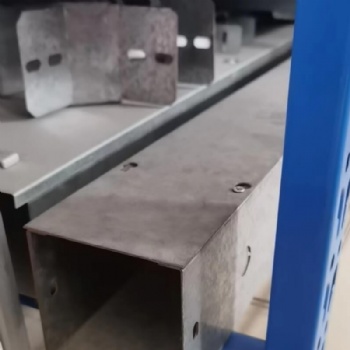

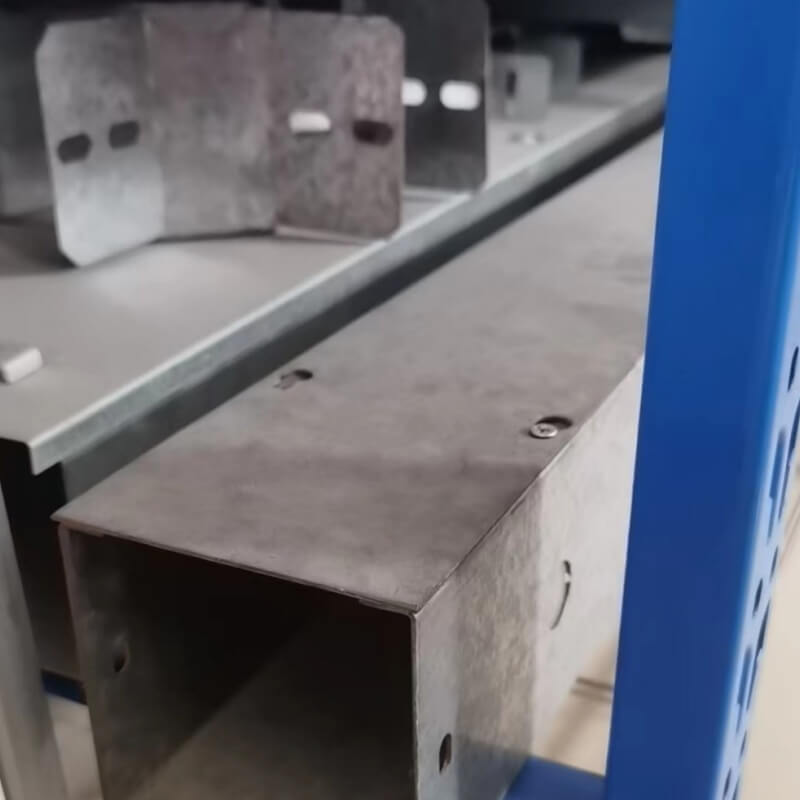

Winwin Group steel solid enclosed cable trunking is a heavy‑duty fully‑enclosed cable management solution designed to deliver complete mechanical protection for power, control and communication cables. Built with robust steel body and removable solid cover, this enclosed cable trunking shields internal wiring from dust, moisture, physical impact and electromagnetic interference, compared with open‑type cable tray systems. Pre‑galvanized, ZAM, Powder coated, hot‑dip galvanized and stainless‑steel finishes are available to satisfy different indoor and outdoor site requirements.

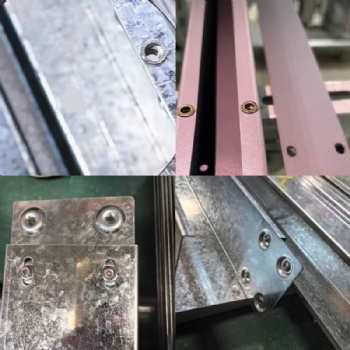

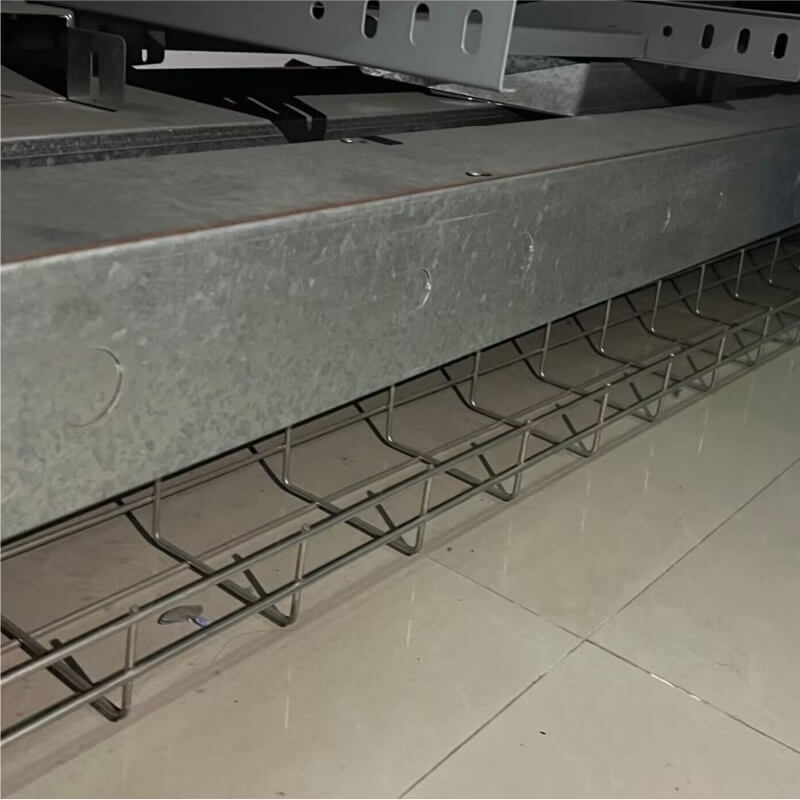

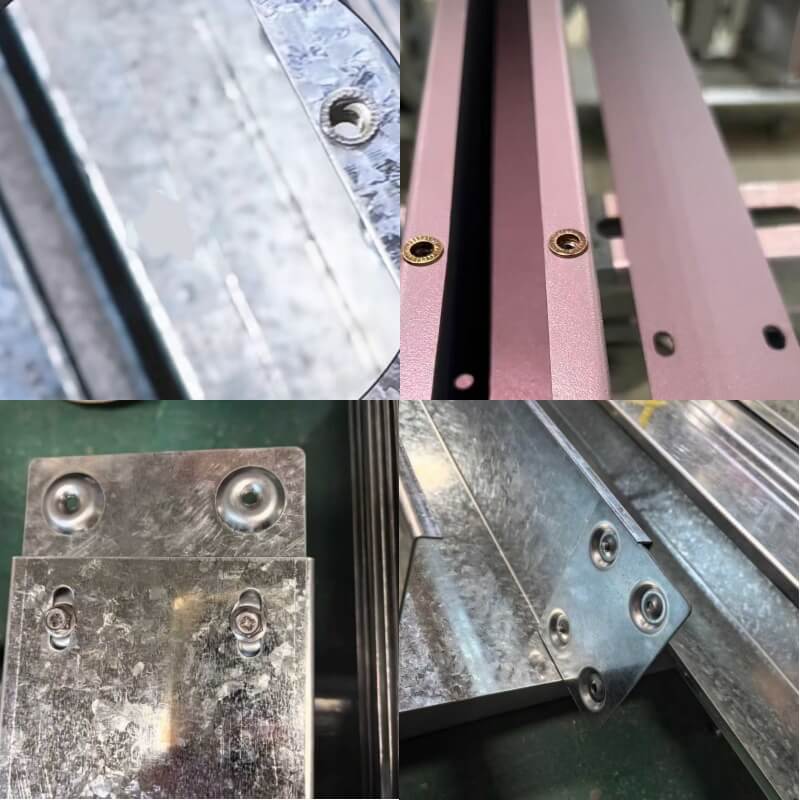

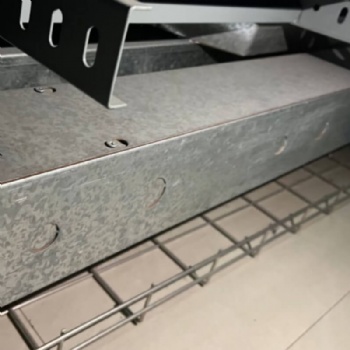

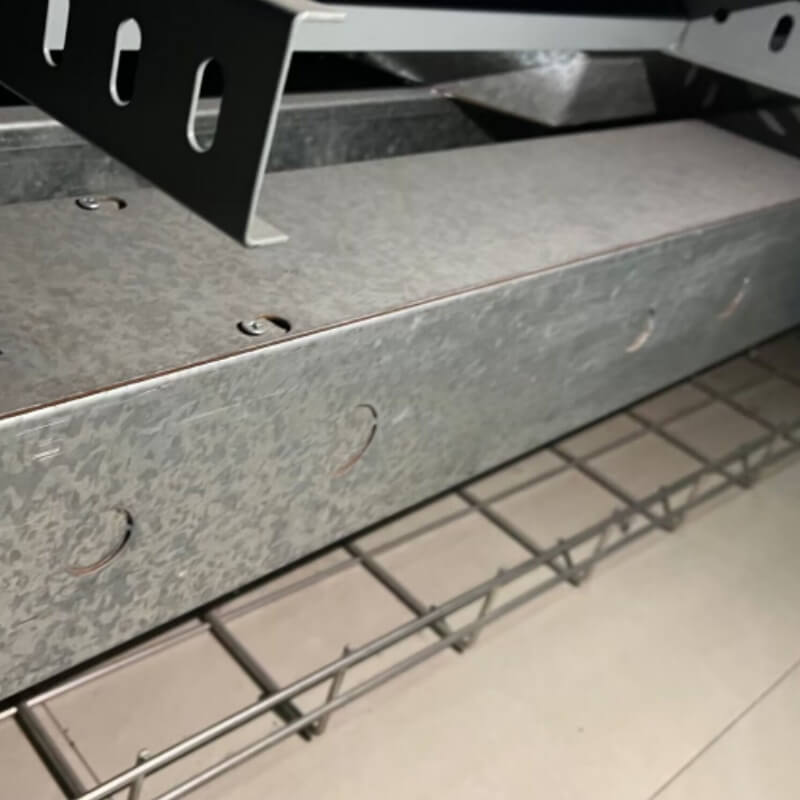

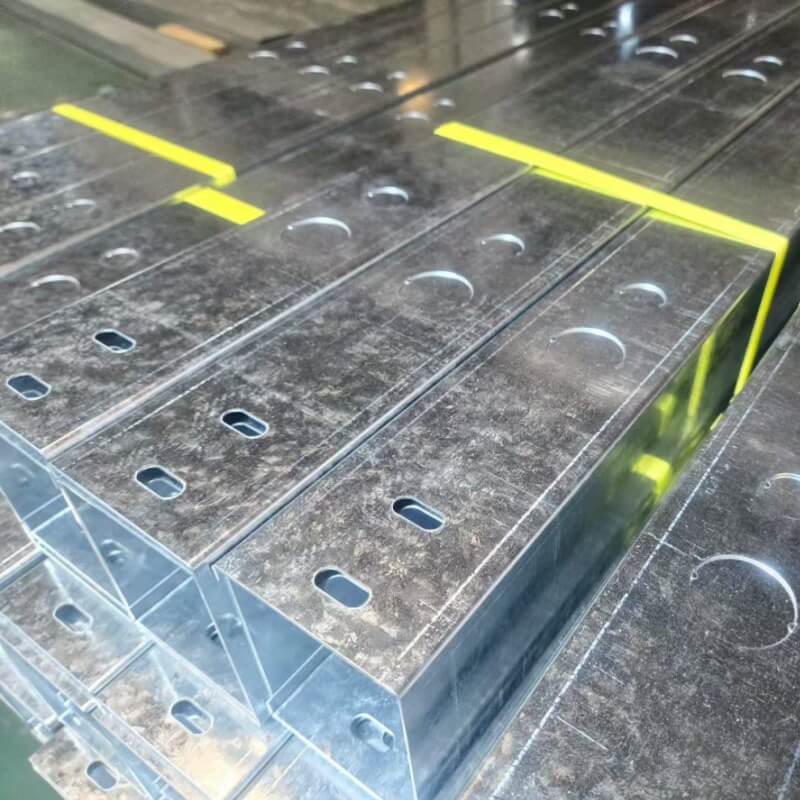

This enclosed steel cable trunking comes with pre‑formed knock‑outs for convenient cable tapping and branch connection on‑site. The reliable bolt‑locking system firmly fastens the cover onto the trunking body, preventing accidental opening during operation and installation. Modular design allows quick assembly with matching elbows, tees, couplings and mounting brackets, greatly cutting down field installation time. All dimensional tolerances are strictly controlled to ensure consistent fitting between straight sections and accessories

Widely adopted for MEP projects, industrial plants, commercial buildings, data centres and coastal facilities, our solid enclosed cable trunking complies with international cable containment standards. As a professional cable tray and trunking manufacturer from China, we support standard sizes as well as custom dimensions for project‑specific demands. Complete sets of matching fittings can be supplied together for one‑stop cable containment system procurement.

Material & Finish available

Different material and surface finish for cable trays:

(1)Pre-Galvanized / PG / GI – for indoor use to AS1397

(2)Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461

(3)Stainless Steel SS304 / SS316 /SS316L

(4)ZAM-275g/m2

(5)Powder Coated – for indoor use to JG/T3045

(6)Fire Rated to AS3013:2005

(7)Electrolytic Polishing – for Stainless Steel use

(8)Mill / Mild /Plain Steel to ISO 4995

(9)Aluminum to AS/NZS1866

(a)   Aluminum plate;

(b)   Aluminum profile;

(10)Fiberglass Reinforced Plastics / FRP /GRP or composite

 (a)   Fiberglass Reinforced Plastics without steel lining;

 (b)   Fiberglass Reinforced Plastics with steel lining;

(11)Polymer

Drawing for Cable Trunking

Steel solid enclosed cable trunking with knock‑outs and bolt‑locking system. Heavy‑duty steel cable management for MEP, industrial and commercial projects. Multiple surface finishes & full matching accessories available.

Bending Components And Brackets for Trough type cable tray.

Schematic Diagram Of Cable Trunking Layout

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
