Cable Tray | Perforated Ventilated, Light, Medium & Heavy Duty, Pre-Galv,SS,Paint & HDG

Fujian Winwin Group full-series cable trays cover perforated ventilated type catering to light-duty, medium-duty and heavy-duty load requirements for diversified electrical wiring layout projects. Multiple mature surface treatment options are available, including pre-galvanized steel, stainless steel, powder coating and hot-dip galvanizing (HDG). These cable trays are engineered for stable cable bearing, efficient heat dissipation and neat wire arrangement, widely applicable to factory workshops, commercial buildings, data centers, municipal engineering and outdoor power transmission projects. All specifications can be matched with complete supporting accessories such as elbows, tees, reducers and brackets to form a complete standardized cable routing system.

Winwin Group classify our cable trays into light, medium and heavy-duty grades to satisfy distinct load-bearing demands: light-duty models fit indoor conventional weak current wiring; medium-duty versions serve most general industrial and commercial power wiring; heavy-duty reinforced cable trays bear large-scale cable loads for heavy industrial scenarios. Different surface treatments deliver targeted performance: pre-galvanized trays offer cost-effective anti-rust protection for indoor dry environments; HDG hot-dip galvanizing provides outstanding corrosion resistance suitable for coastal, humid and chemical corrosive working conditions; stainless steel cable trays feature excellent rust-proof and oxidation resistance for high-standard clean workshops and marine projects; painted coated trays boast attractive appearance with basic anti-corrosion performance for indoor decorative electrical installation. Perforated ventilated structure accelerates natural heat dissipation of live cables, effectively lowering operation temperature and extending the service life of cables.

All our cable trays are manufactured in accordance with mainstream international industry standards, with stable structural strength and reliable workmanship. Besides standard sizes, we support flexible OEM & ODM customization including customized sizes, thicknesses, hole layouts and special surface treatments as per clients’ construction drawings. We supply one-stop matching accessories to simplify on-site installation and cut overall construction costs. Whether you need bulk order supply for large engineering projects or small-batch customized cable management solutions, our team can provide accurate quotation, technical parameter confirmation and professional installation guidance to guarantee stable and orderly power distribution layout for your projects.

Material & Finish available

Different material and surface finish for cable trays:

(1)Pre-Galvanized / PG / GI – for indoor use to AS1397

(2)Hot Dip Galvanized / HDG – for outdoor use to BS EN ISO 1461

(3)Stainless Steel SS304 / SS316 /SS316L

(4)ZAM-275g/m2

(5)Powder Coated – for indoor use to JG/T3045

(6)Fire Rated to AS3013:2005

(7)Electrolytic Polishing – for Stainless Steel use

(8)Mill / Mild /Plain Steel to ISO 4995

(9)Aluminum to AS/NZS1866

(a)   Aluminum plate;

(b)   Aluminum profile;

(10)Fiberglass Reinforced Plastics / FRP /GRP or composite

 (a)   Fiberglass Reinforced Plastics without steel lining;

 (b)   Fiberglass Reinforced Plastics with steel lining;

(11)Polymer

Drawing for Perforated Cable Tray

The screw-on Perforated cable tray systems from WINWIN have been used for decades by planners and specialists around the world in the field of electrical installation.

The systems are not only extremely robust and designed for heavy loads, they also offer an impressive technical, purist design.

All the challenges of electrical installation on the construction site can therefore be mastered professionally and safely.

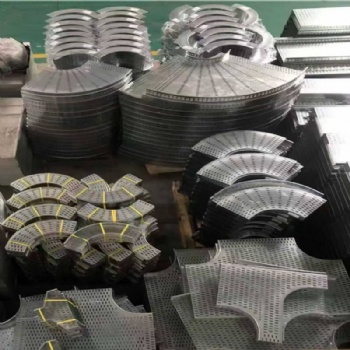

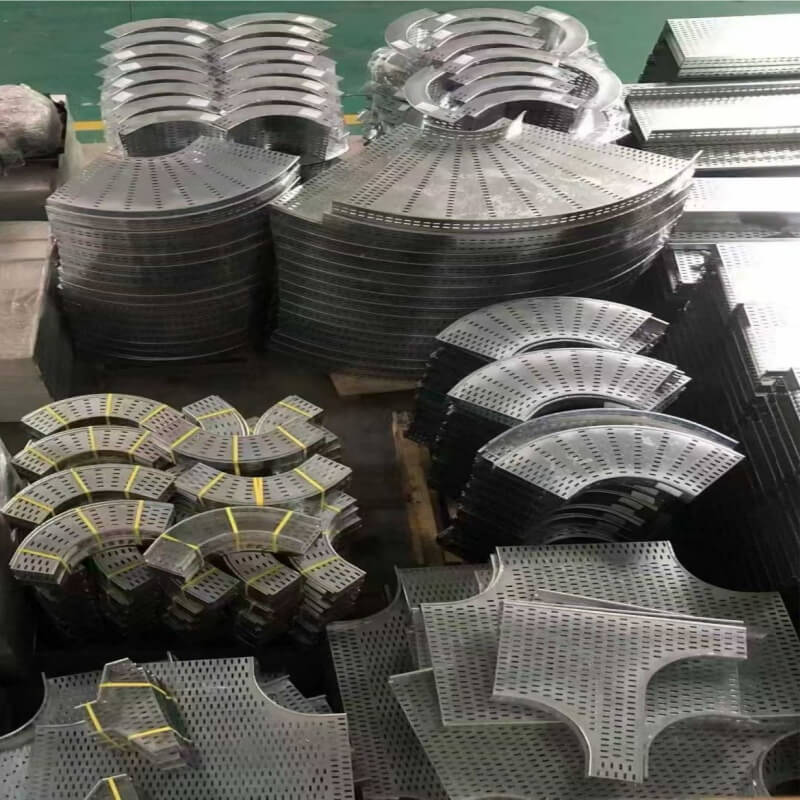

Full series perforated cable tray fittings (elbow, tee, cross, riser, reducer, bracket, etc.)

Schematic Diagram Of Perforated Cable Tray Space Layout

Production Process

Annual Production Capacity: 5000 Tons

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects

Packing And Delivery For Cable Tray

1.In bundle

2.Wrapping Film,plastic tape, Plywood pallet.

3.Plywood Pallets is optional for electric cable trunking

4.Carton for accessories

5.As per requirements

Installation Case On Site For Winwin Cable Tray System

Main Application

Certificate

Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.

Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable tray, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.

Our premium cable trays and strut channels are widely used in commercial buildings, power plants, industrial workshops, hospitals, subways, data centers and other construction & electrical projects. They serve cable management, hoisting systems, industrial power distribution and building electromechanical engineering.We deliver stable quality, reliable performance and competitive pricing, offering cost-effective solutions for industrial and commercial projects across the globe.

Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.

Welcome to contact us for long-term win-win cooperation.
