Polymer Concrete Sump Pit

Features of Polymer Concrete Sump Pits

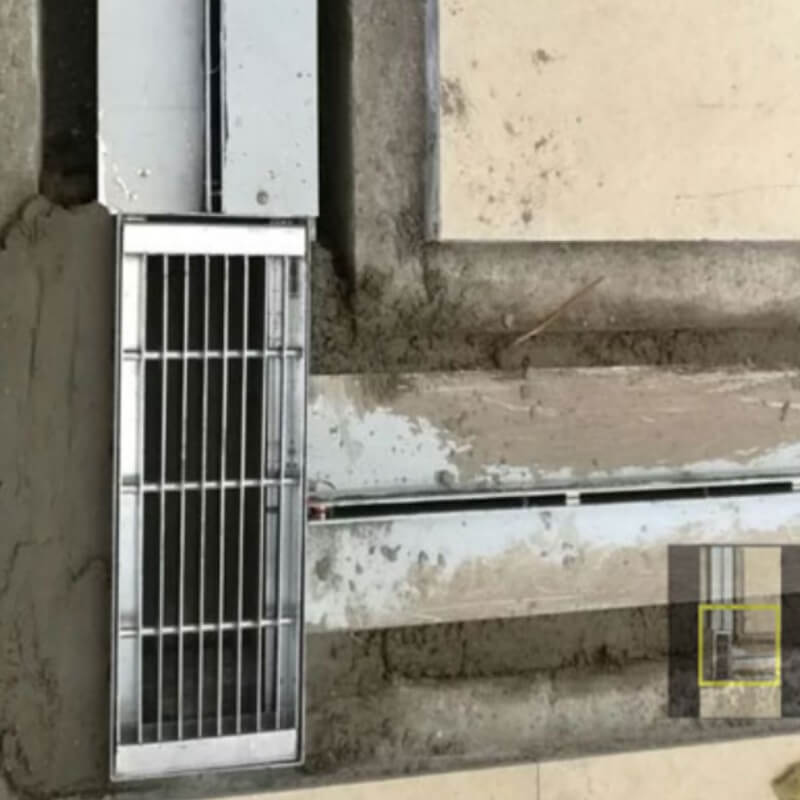

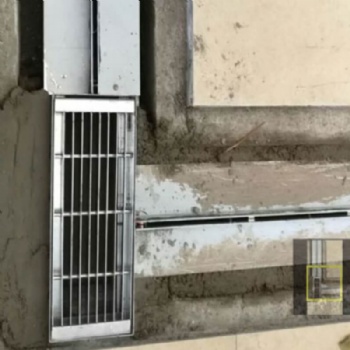

Polymer concrete sump pits are precision manufactured to perfectly match the internal and external width dimensions of matching linear drainage channel systems. This uniform sizing enables seamless, flush installation alongside any designated segments of the full linear drainage run without uneven gaps, height offsets or aesthetic inconsistencies between the channel bodies and sump units. It allows installers to integrate sumps at planned intervals along the drainage line effortlessly for unified, continuous surface drainage layout.

2. Versatile multi-port sump pits function as centralized water collection hubs, capable of capturing minor surface runoff and residual water from scattered secondary zones across your project site. Equipped with a comprehensive selection of pre-designed inlet and outlet connection points on all sides, these units support flexible tapping for auxiliary drainage pipes, small branch channels and peripheral catchment drains, efficiently gathering dispersed low-volume water flows into the main drainage network in one consolidated location.

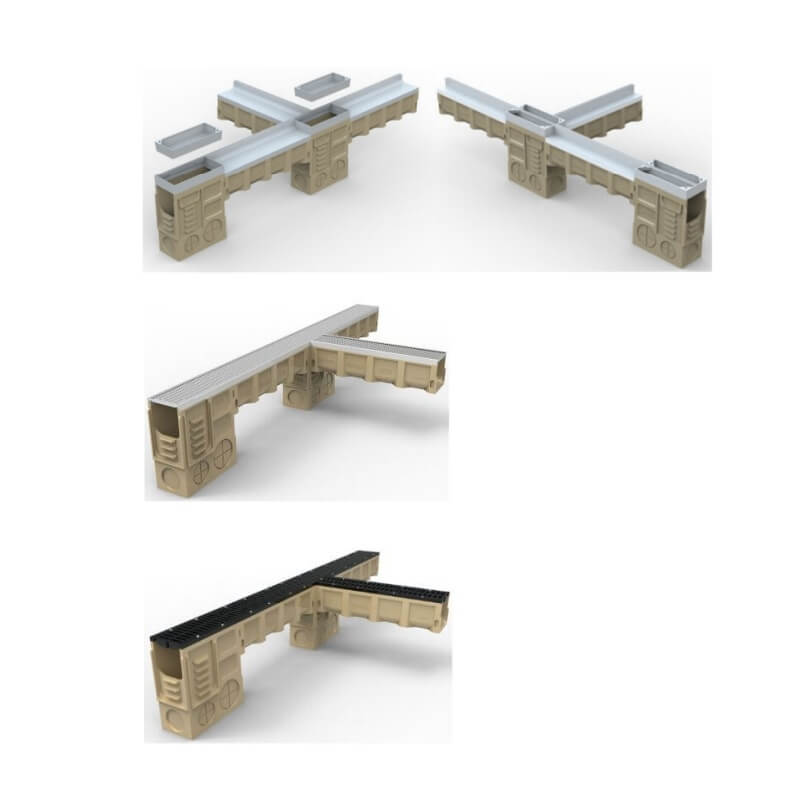

3. These modular polymer concrete sump pits offer fully flexible connection compatibility for linear channel assemblies. When site layout conditions demand, they can be directly linked to the terminal opening at either the left or right end of the main channel run. Additionally, custom side entry connection ports are built into the sump housing, permitting horizontal channel access from lateral side positions to accommodate complex, multi-directional drainage routing and irregular ground grading layouts without extra on-site cutting or modification work.

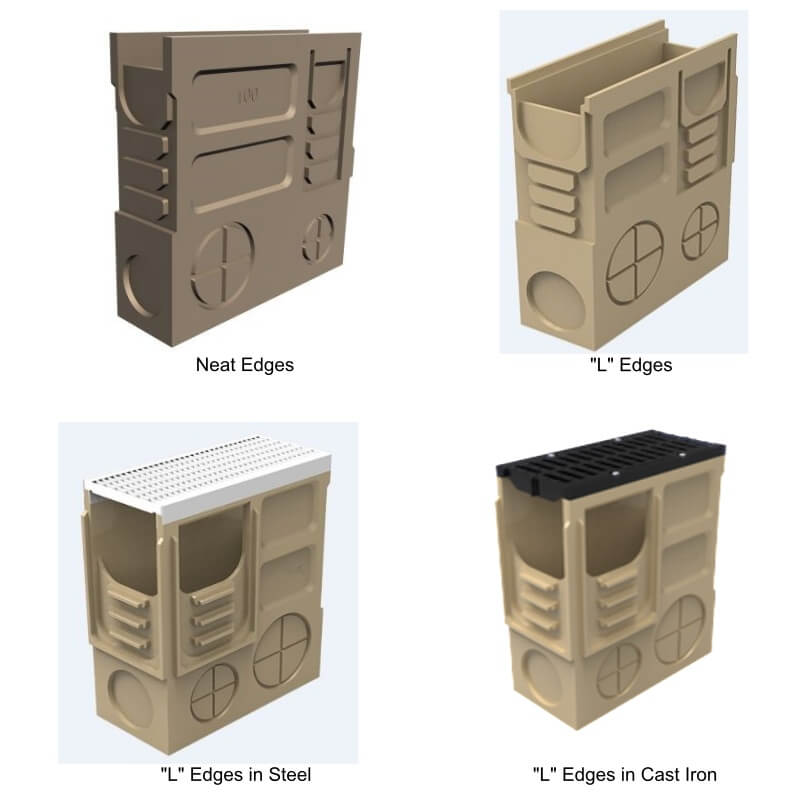

Material for Drainage Channel Protection edge

Winwin Polymer Concrete Channels are manufactured using resin as the bonding agent, combined with high-quality mineral aggregates. This makes polymer concrete an extremely compression-resistant building material, capable of withstanding heavy loads while offering exceptional durability and a long service life.

Polymer concrete features non-flammable, frost-proof and excellent weathering resistance properties. It also offers reliable resistance to diluted acids, alkalis and various chemical substances, ensuring stable performance in diverse environments.

Trench Channel + Trench Cover in Different Load Class

The advantage of Polymer Concrete Channel

(1) Robust, durable, stable and lightweight.

(2) High compressive strength, bending strength and impact resistance, with excellent anti-corrosion performance.

(3) Resistant to abrasion, weathering, water penetration and freeze-thaw cycles.

(4) Simple structure, safe and convenient to use; solid structure with strong load-bearing capacity, long service life, smooth surface, easy maintenance, anti-aging, anti-corrosion, anti-cracking, frost-resistant, non-flammable, zero water absorption, and high resistance to chemical and biological attack.

(5) Long service life: over 50 years under normal working conditions.

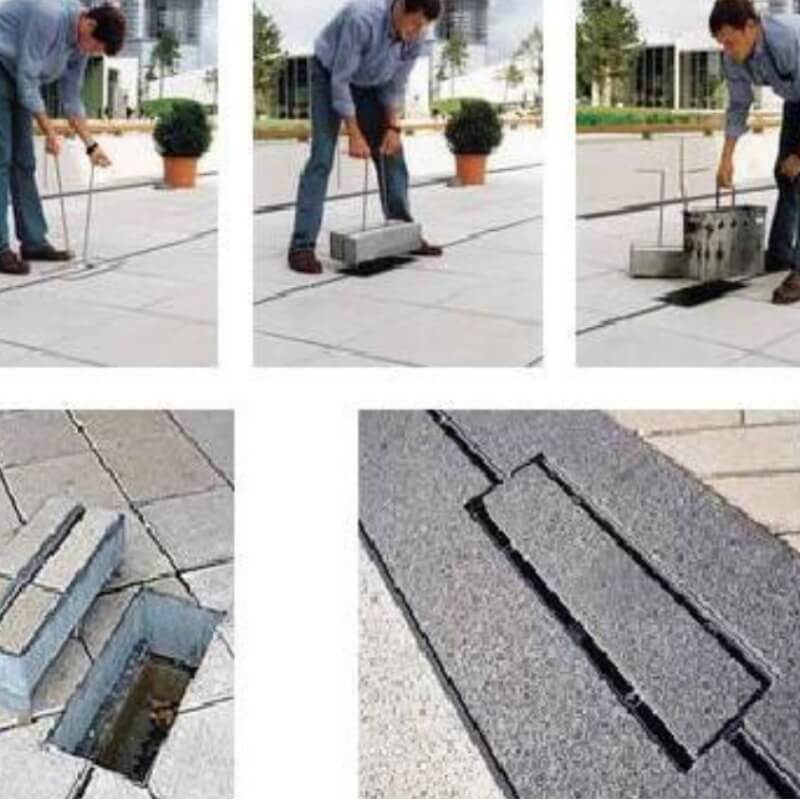

(6) Fast and high-volume drainage, easy to clean with removable or inspection grating covers; equipped with a combined sump and sediment bucket to solve the accumulation and blockage of daily garbage such as sand, mud, sediment and rubbish, and free of peculiar smell.

(7) Load capacity: from Load Class A15 to F900 (up to 90 tonnes).

(8) Unique U-shaped design with an ultra-smooth surface for efficient hydraulic flow, improved drainage capacity and flow rate, and self-cleaning function; no contamination hazard.

(9) Easy to install, durable, cost-effective and requires minimal maintenance.

Polymer Concrete Material Properties

Applications for Winwin Polymer Concrete Drainage Channel

Winwin drainage systems are widely used across residential, commercial, industrial and agricultural applications, including:Bungalows, villas, apartments, condominiums, offices, gardens, pedestrian areas, cycle lanes, driveways, parking lots, highways, urban roads, public plazas, industrial zones, logistics parks, wharves, airports, botanical gardens and infrastructure projects.They are the ideal choice for municipal engineering, urban infrastructure, traffic construction, civil engineering and various industrial & commercial projects.

Chart of Load Class

Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Winwin is a professional manufacturer of a complete range of drainage products, including Polymer Concrete Channels, Resin Concrete Trenches, Polymer Concrete Kerb Drains, Polymer Concrete Monolithic Drainage Channels, Slot Drains, Brickslot Drains, Trench Covers (Load Class A15KN to F900KN), Manhole Covers and other related drainage accessories. Our products have been tested in Spain and have successfully obtained the CE certification.

Our integrated drainage solutions are widely adopted for municipal roads, parking lots, logistics parks, commercial plazas, industrial zones, hospitals, landscape projects and other public infrastructure. They apply to building drainage, municipal water supply & drainage, road works and industrial floor drainage.Compliant with international quality standards, our products effectively prevent waterlogging and safeguard the structure of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.

Welcome to contact us for long-term win-win cooperation.
