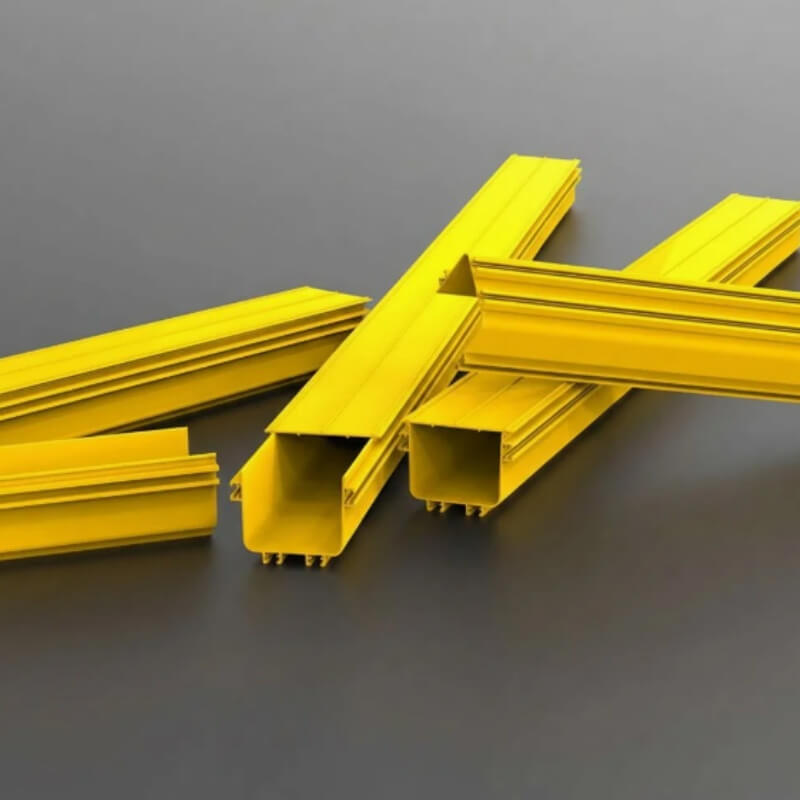

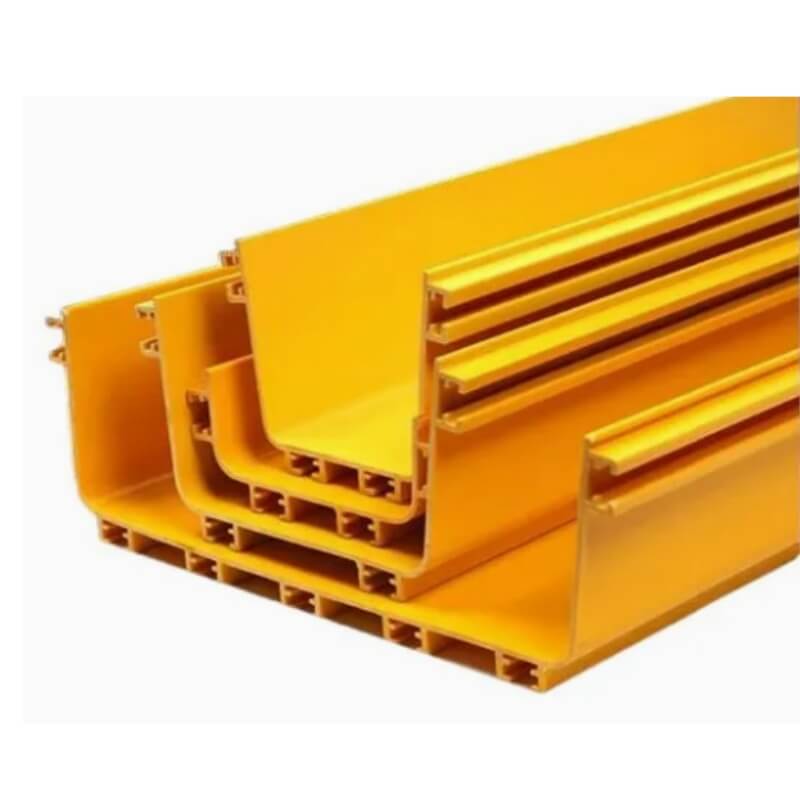

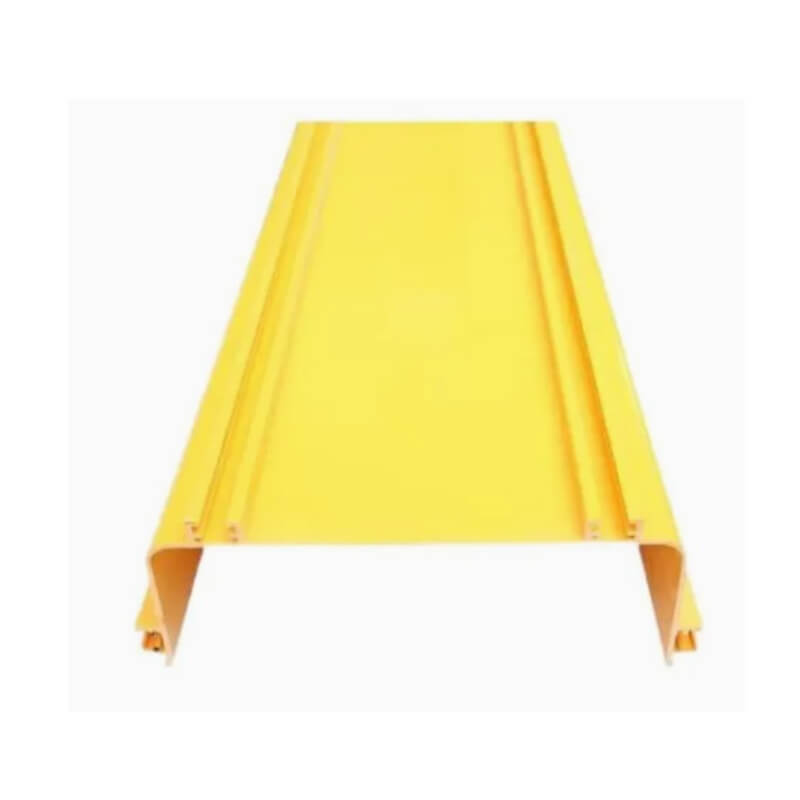

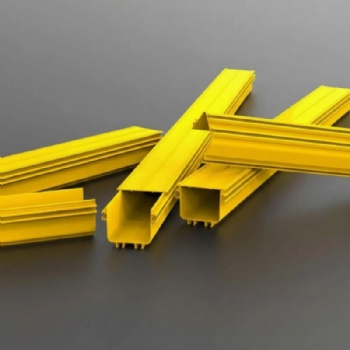

Standard Fiber Optic Cable Duct Raceway PVC/ABS For Data Room Wiring Management

WINWIN NETWORK-FIBRE MANAGEMENT SYSTEM

Winwin fibre Management Systems is designed to protect and route fibre optic patch cords,manage cable assemblies to and from network cabinets, ODF and other terminal devices.Plastic optical cable tray is the best solution for optical raceway requirements and application with pleasantappearance and quite easy maintenance.Two kinds of raw Material for option, ABS is environment friendly and high-class,PVC offers an relatively cheaper version for tight budget projects.

WHY USE FIBRE OPTIC RACEWAY

• Fibre optic cords carry far more services and much greater throughput than traditional copper services and downtime or outages can cost tens of thousands of dollars per second in lost revenue for each cord damaged.

• Good fibre protection is absolutely essential. Fibre cords are fragile and need to be correctly protected throughout any cabling installation from end to end. Traditional cable routing on open cable trays and ladders may cause damage to the delicate fibre cables. These methods of routing cables provide no protection for the exposed fibre.

CHARACTERISTIC

• Fibre cords need to be segregated from all copper services and routed in enclosed raceway, clearly defined by means of a bright distinctive color. They also need protection against compression, and the minimum bend radius, generally specified as 30mm must not be compromised.

• Labour costs incurred in installing cabling infrastructure in telecommunications exchanges or data centres can be very expensive if the system chosen is not easy to install.

• All plastic based products used should be self-extinguishing to avoid the risk of harming staff, transmission equipment, rescuers or buildings in the case of a fire.

• The need for zero down-time when using optical fibre. The system chosen should be easily changed or extended with the need to remove the existing fibre or shut down

• All plastic based products should be RoHS compliant.

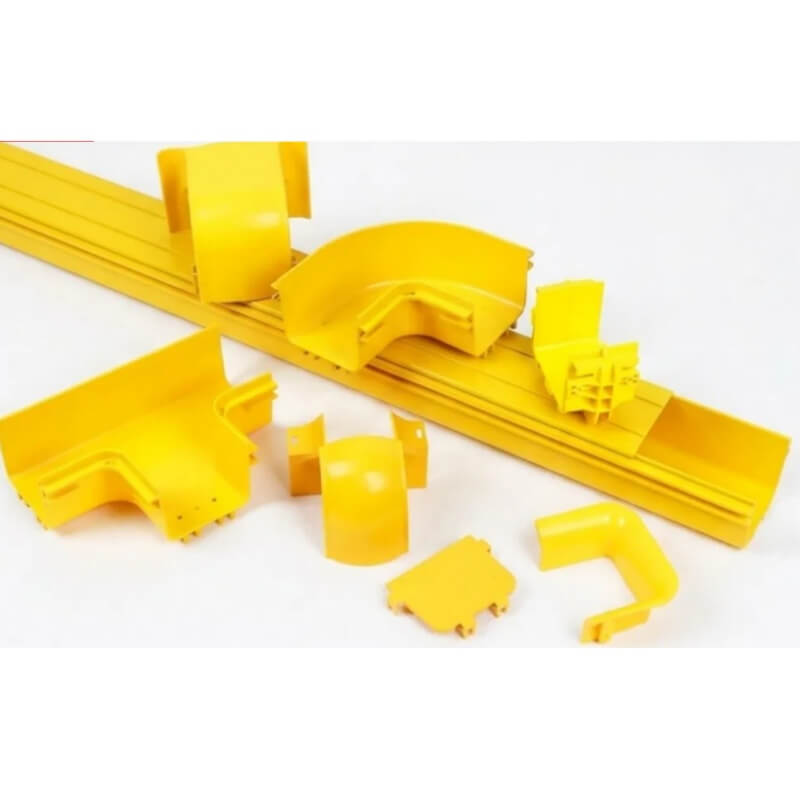

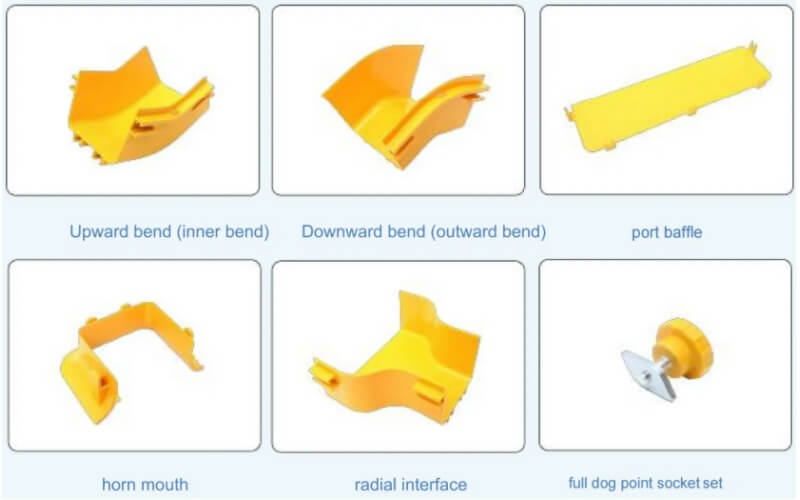

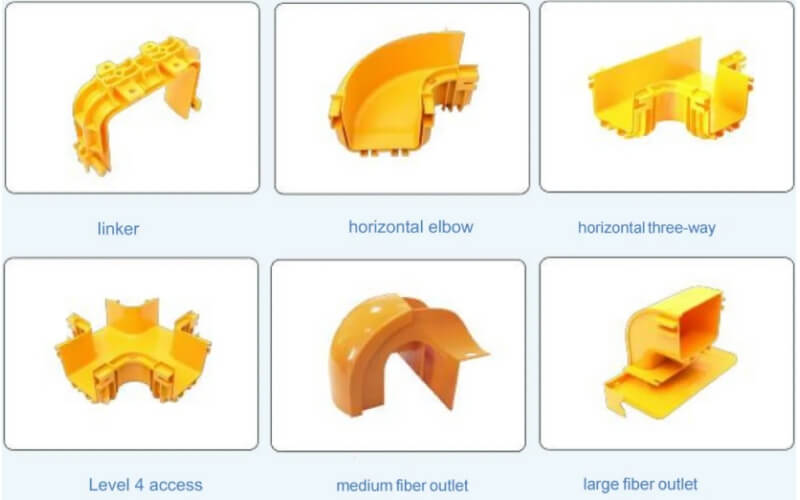

Accessories For Fiber Management System

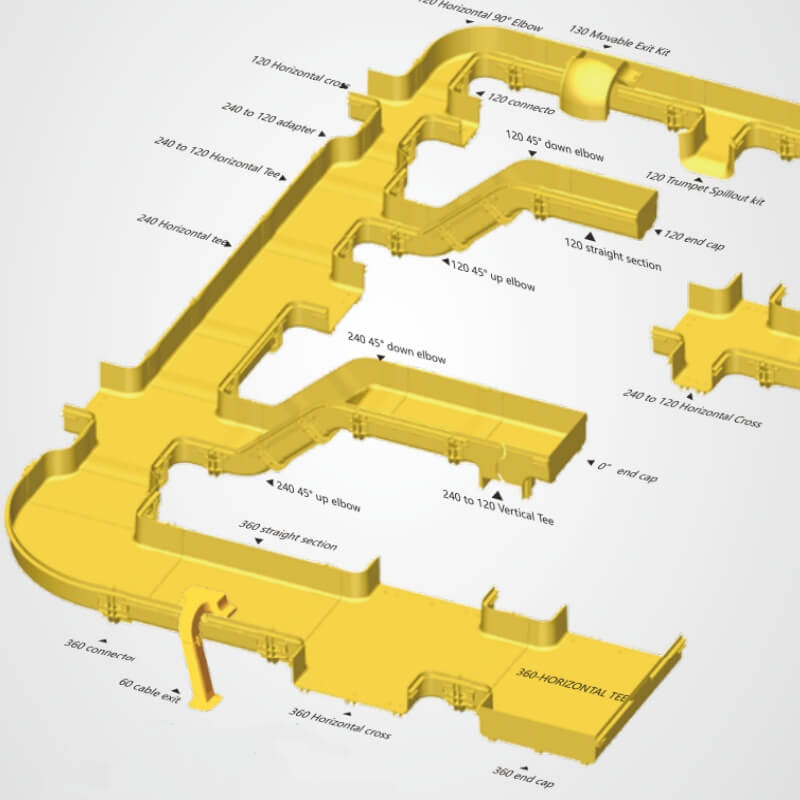

Schematic Diagram Of Fiber  Optic Cable Duct

Annual Production Capacity: 2 million meters of fiber raceways

With a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.

Strict Quality Control System

We implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.

Customization Service

We provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.

Professional After-Sales & Technical Support

Our experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects

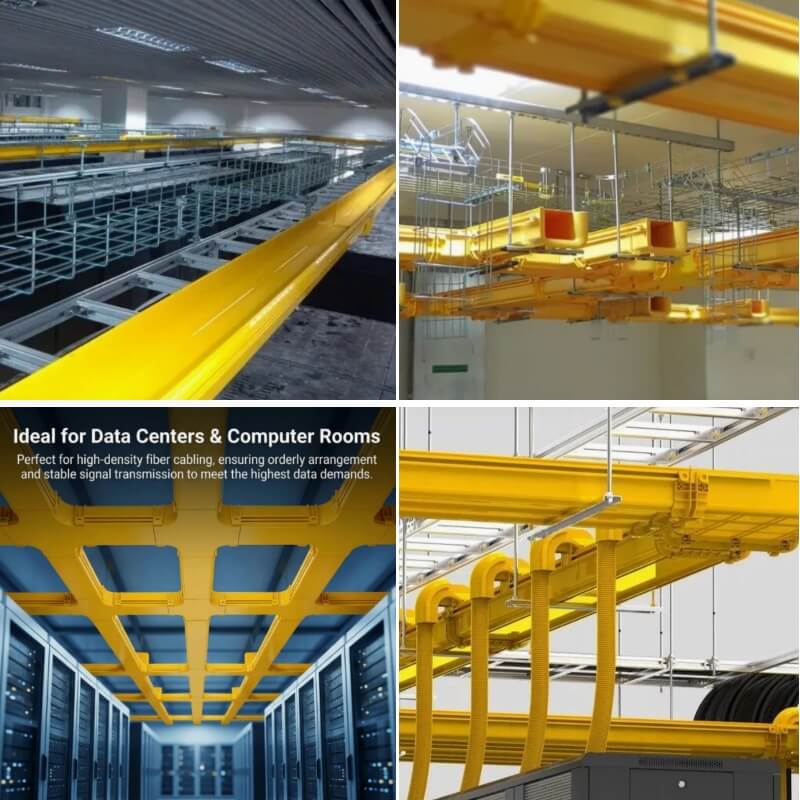

Installation Case On Site For Winwin Cable Tray System

Certificate

Our fiber optic cable raceway duct have passed a lot of testing and have a variety of certification, with ROHS, CE, UL, CUL and other certification,SGS and TUV various testing certificates. and fiber raceways, cable ladders and cable fixers won the national patent.
