Description
Winwin Strut Channel (C Steel Channel) provides exceptional load-bearing capacity and modular versatility, making it an ideal support solution for HVAC systems, cable trays, pipelines and various mechanical installations.
Its pre-punched design allows fast on-site installation and easy customization, greatly reducing labor time and project costs.
With reliable structural rigidity and flexible assembly, Strut Channel is widely used in commercial buildings, industrial facilities, power plants, data centers and infrastructure construction projects.
It eliminates the need for complex on-site fabrication and adapts seamlessly to diverse installation requirements.
Strong, durable and easy to install, Winwin Strut Channel is the preferred choice for heavy-duty support systems in industrial, commercial and infrastructure applications worldwide.
Strut Channel Details
| Product Name | C Strut Channel | |||||||
| Material | Pre-Gal | HDG | ZAM | Powder-coated | #201 SS | #316 SS | #316L SS | |
| Thickness | 0.5-3mm | 1.5-3mm | 0.5-3mm | 1.5-3mm | ||||
| Height | 12-82mm (Normal Height: 21/41/52/62/72/82mm) | |||||||
| Width | 30-41mm(Normal Width:41mm) | |||||||
| Length | 0-10M | |||||||
| Punching hole | 8.5*35, 10.5*35, 11.5*35, 12.5*28, 12.5*30, 12.5*35, 13.5*28, 14*28mm, or Customized Size (Normal:14*28mm) | |||||||

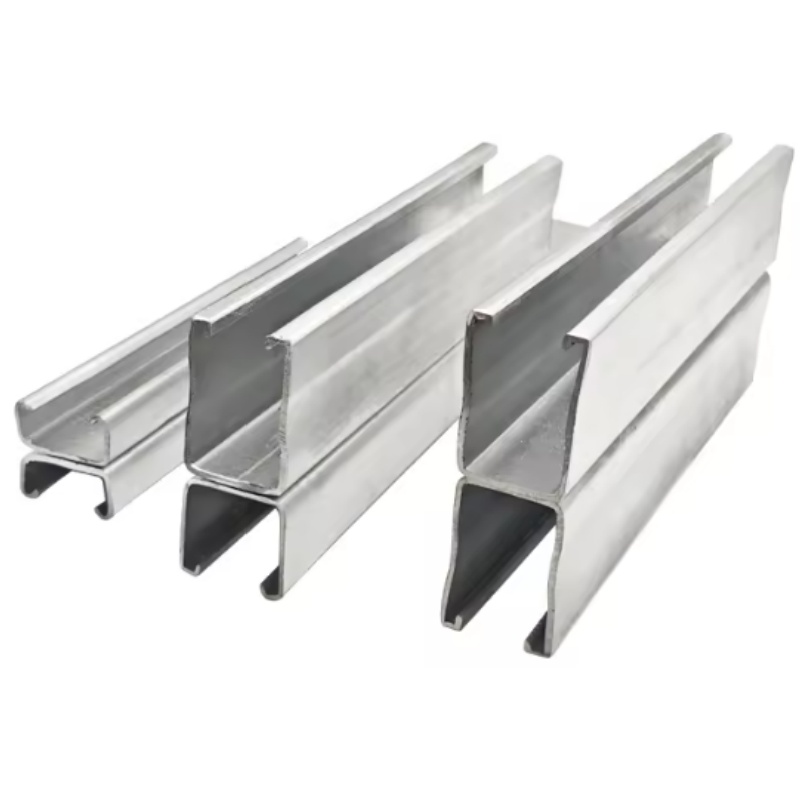

| Special Processes | Unperforated; Single-sided Perforated; Triple-sided Perforated; Back-to-back(Combination) | |||||||
| Basic Processes 1 | With or Without Reinforcement; Rounded Corners or Right Angles | |||||||
| Basic Processes 2 | With or without serration | |||||||

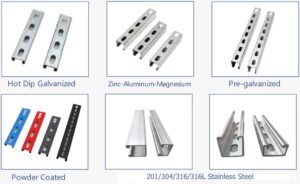

Material & Finish
- Electronic-Galvanized or Zinc Plated;
- Hot Dip Galvanized / HDG;
- Stainless Steel: SS304 / SS316/SS316L;

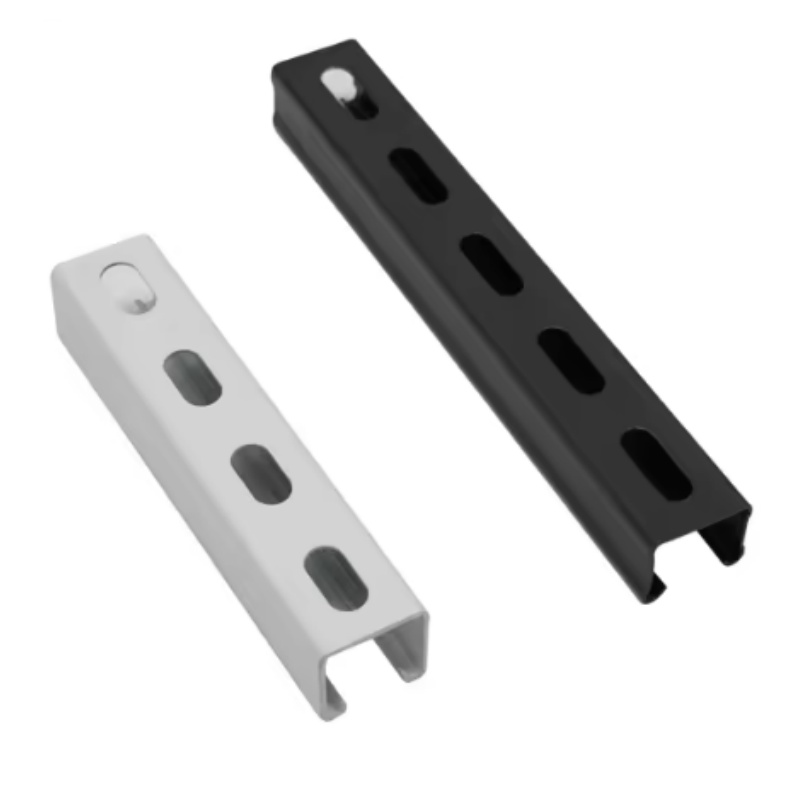

- Powder Coated or Paint;
- Mill / Mild /Plain Steel;
- ZAM
- Aluminium

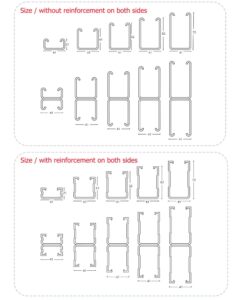

Drawing of size for strut channel
Standard size for C Strut channel: 41*21mm, 41*41mm,41*62mm,41*72mm and 41*82mm. Can be customized according to customer’s size.

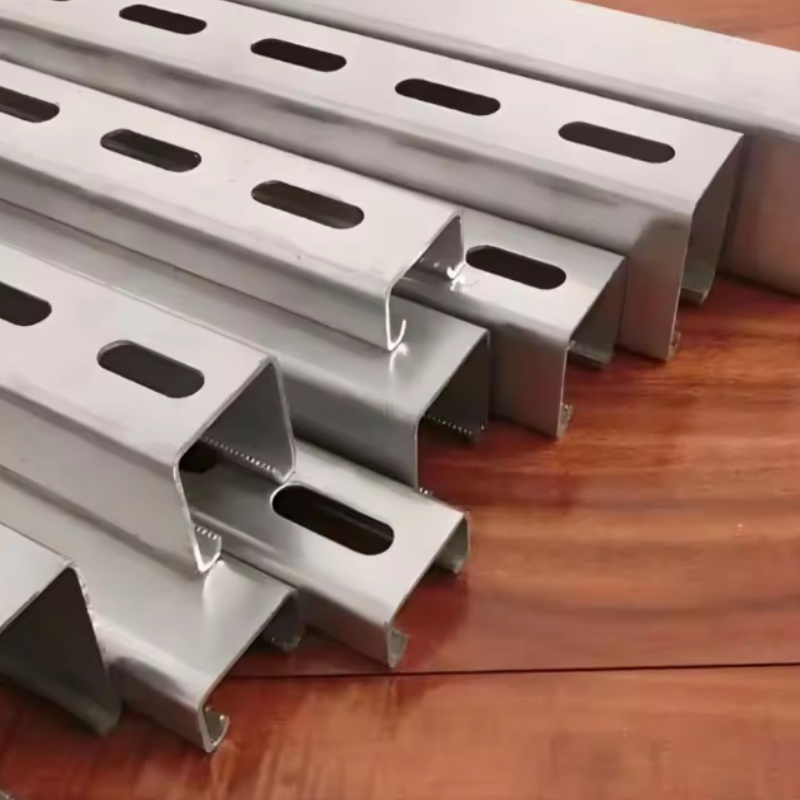

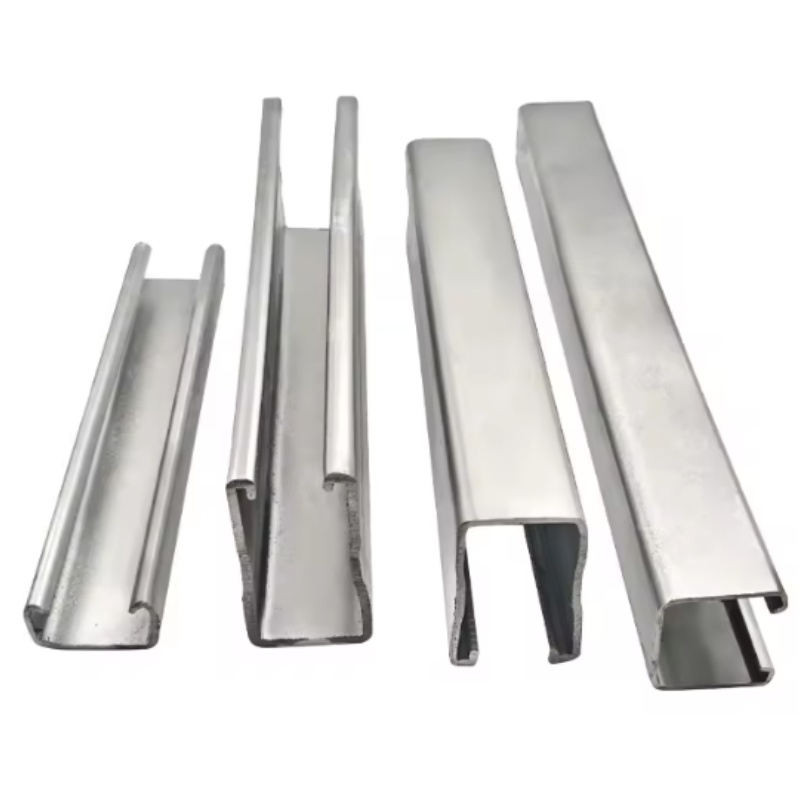

Slot Strut or Solid Strut
Right angle or roung corners / With or without Reinforcement

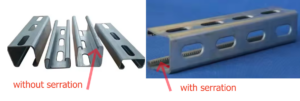

With or without serration for C Strut Channel

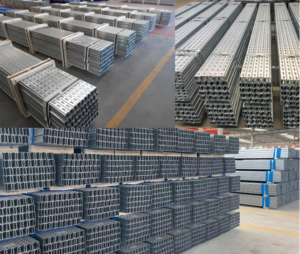

Packing And Delivery For Strut Channel
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.As per requirements
Annual Production Capacity: 5000 TonsWith a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.Strict Quality Control SystemWe implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.Customization ServiceWe provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.Professional After-Sales & Technical SupportOur experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

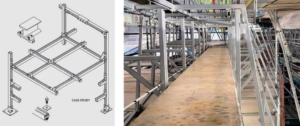

Strut channel layout and project case

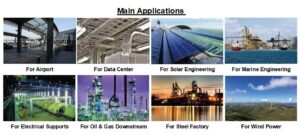

Main Application
