Description

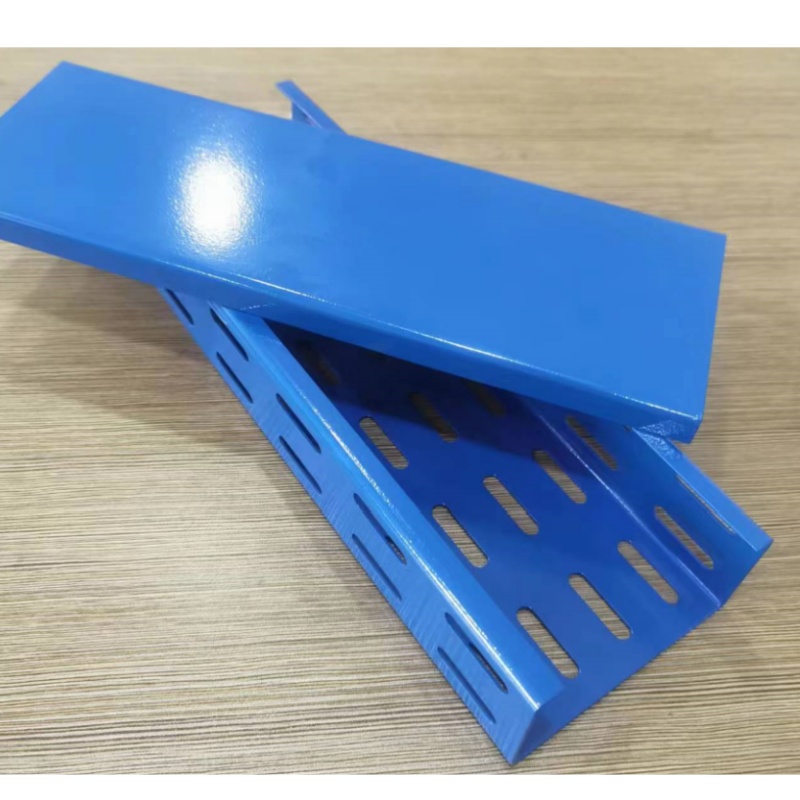

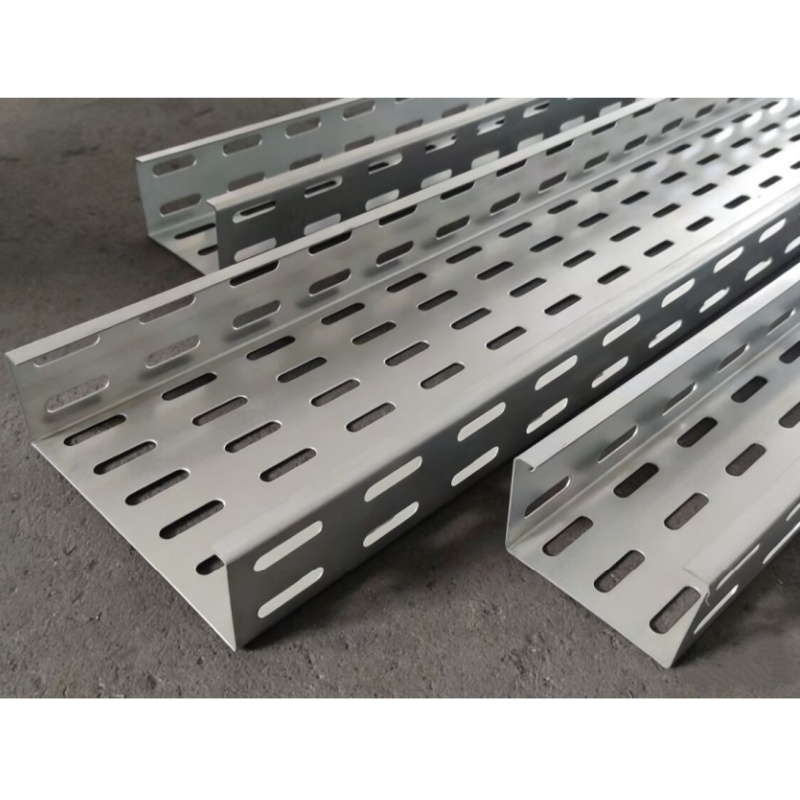

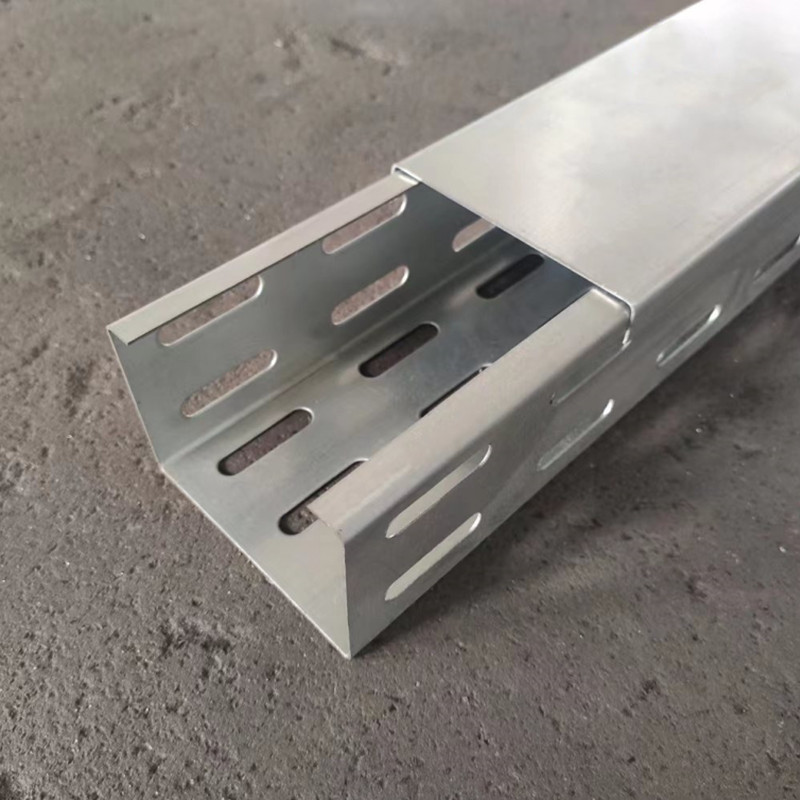

Winwin Steel Perforated Cable Tray combines robust load-bearing capacity with excellent ventilation, effectively preventing cable overheating and ensuring stable and safe cable routing. With its open perforated design, it greatly simplifies cable installation, maintenance and future upgrades, making it an ideal solution for data centers, telecom rooms and industrial facilities.
Durable, well-ventilated and cost-effective, our Steel Ventilated Cable Tray delivers reliable performance for high-density cable systems. It is widely used in server rooms, power distribution projects, manufacturing plants and commercial buildings, offering easy installation and long service life.
Engineered for superior structural strength and high airflow efficiency, this perforated cable tray is the preferred choice for indoor industrial wiring, telecom infrastructure and various commercial construction projects.

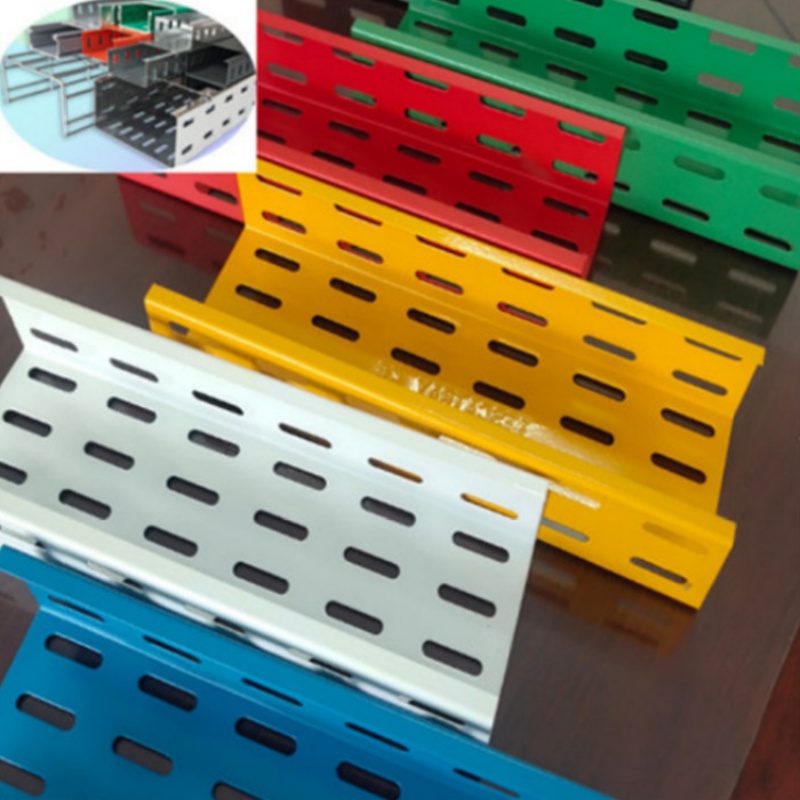

Material & Finish available:
| G | Pre-Galvanized / PG / GI | P | Powder Coated |
| HDG | Hot Dip Galvanized | Z | Zinc Plated |
| SS304 | Stainless Steel SS304 | E | Electrolytic Polishing |
| SS316 | Stainless Steel SS316 | F | Fire Rated |
| SS316L | Stainless Steel SS316L | M | Mill / Plain Steel |
| ZAM | Zinc-Aluminum-Magnesium Steel | FRP | Fiberglass Reinforced Plastics / GRP |
| A | Aluminium |

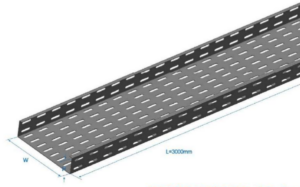

Drawing for Perforated Cable Tray
The screw-on Perforated cable tray systems from WINWIN have been used for decades by planners and specialists around the world in the field of electrical installation.
The systems are not only extremely robust and designed for heavy loads, they also offer an impressive technical, purist design.
All the challenges of electrical installation on the construction site can therefore be mastered professionally and safely.

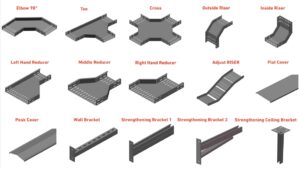

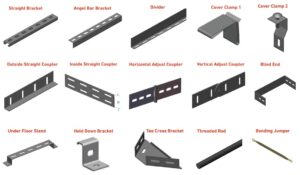

Bending Fittings And Brackets for Perforated Cable Tray
We produce and supply all kinds of bending components, bracket and other cable tray accessories.

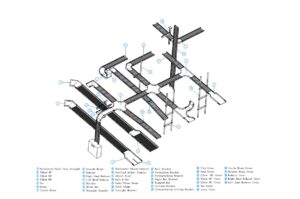

Schematic Diagram Of Perforated Cable Tray Space Layout

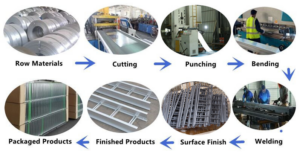

Production Process
Annual Production Capacity: 5000 TonsWith a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.Strict Quality Control SystemWe implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.Customization ServiceWe provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.Professional After-Sales & Technical SupportOur experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

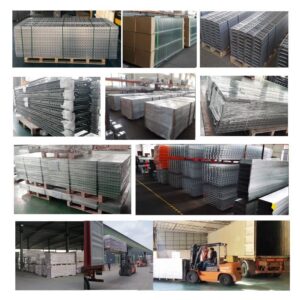

Packing And Delivery For Cable Tray
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for electric perforated cable tray
4.Carton for accessories
5.As per requirements

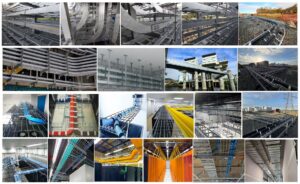

Installation Case On Site For Winwin Cable Tray System

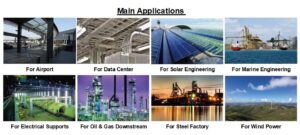

Main Application
Certificate
Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.
Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable trays, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.
Our high-quality cable trays and strut channels are widely applied in commercial buildings, energy projects, power plants, industrial factories, wiring systems, cable management systems, hoisting systems, data center and the construction industry. With stable quality, competitive pricing, and reliable performance, we provide cost-effective solutions for various industrial and commercial projects worldwide.
Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.
Welcome to contact us for long-term win-win cooperation.
