Description

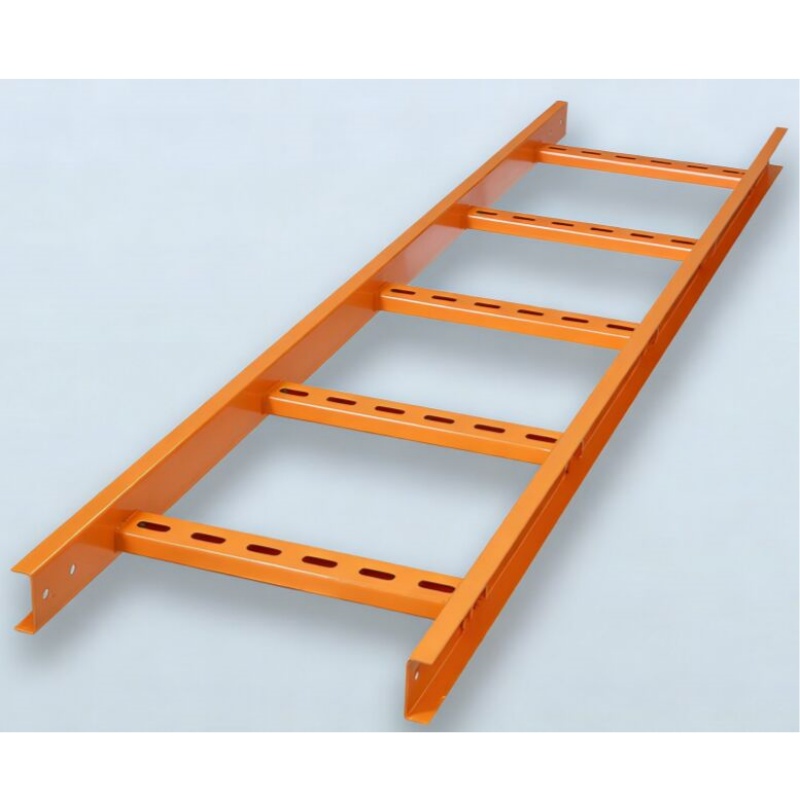

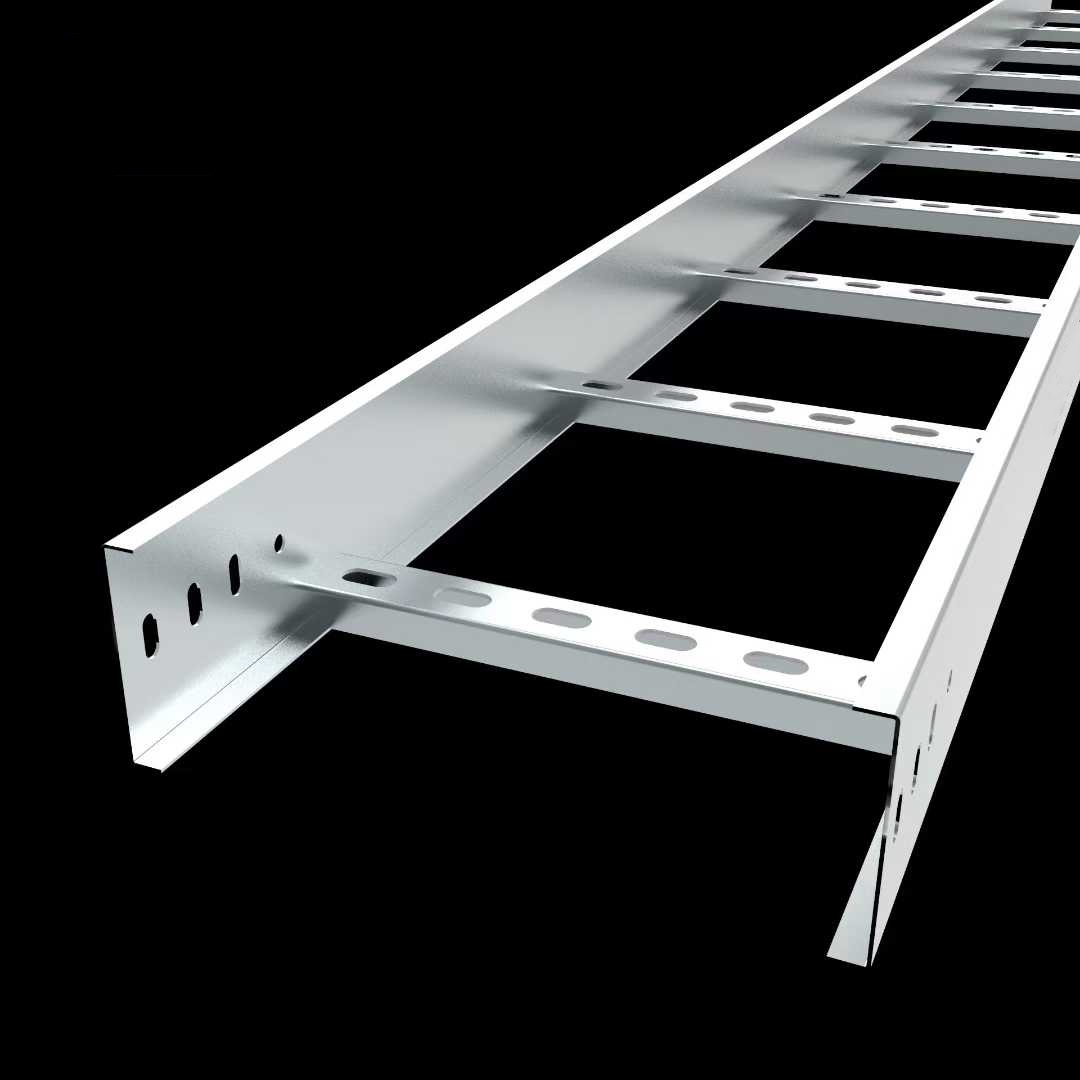

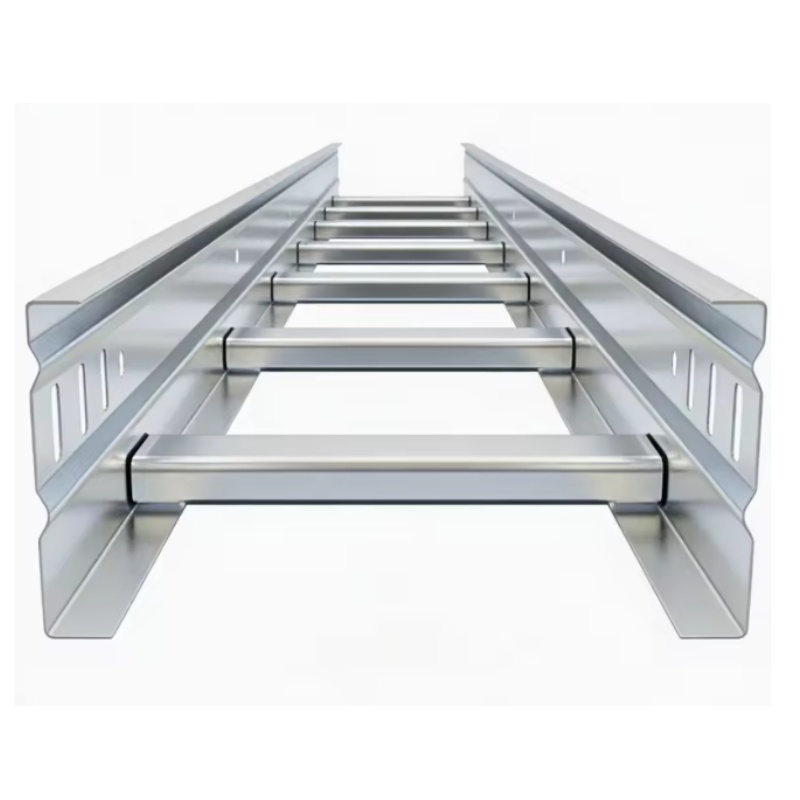

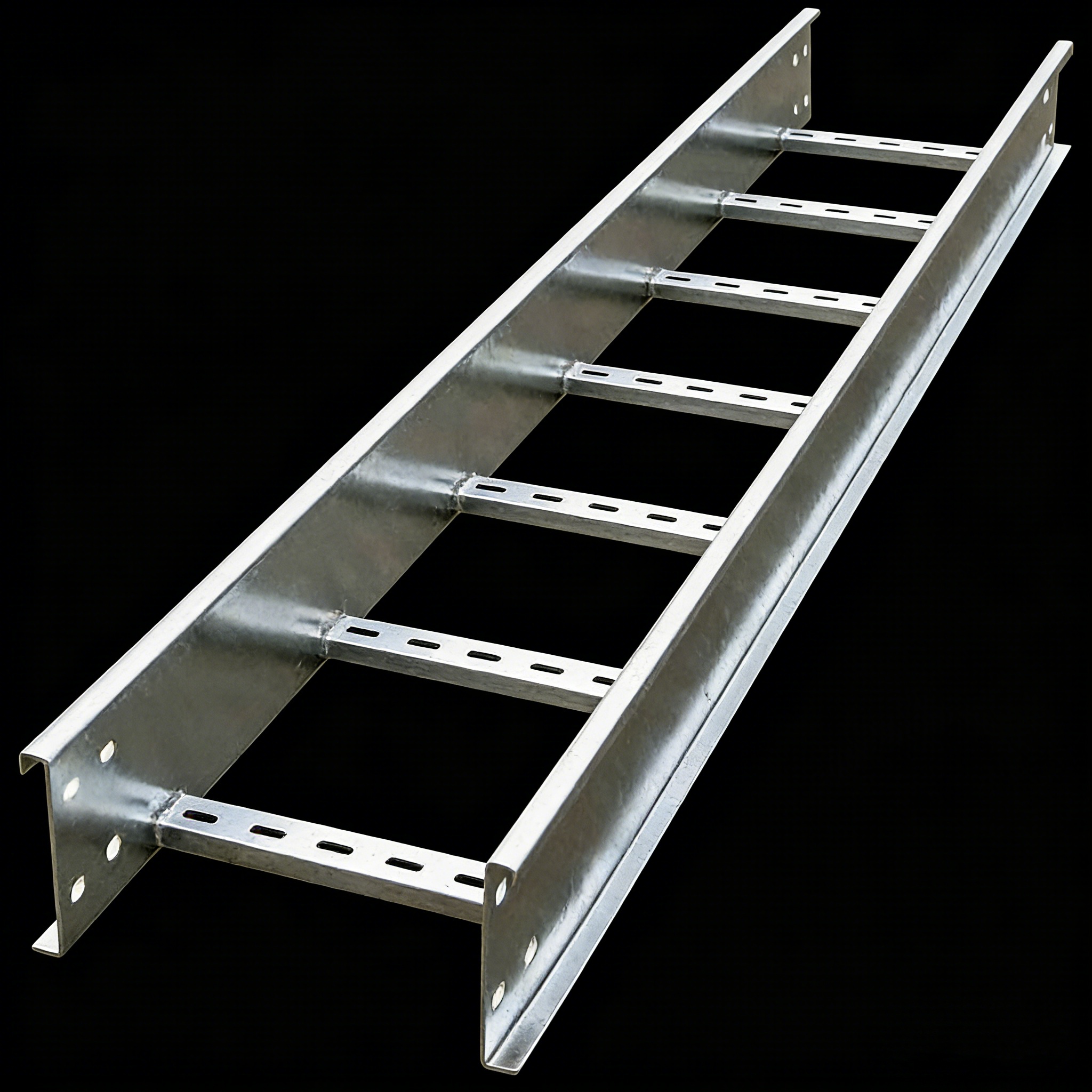

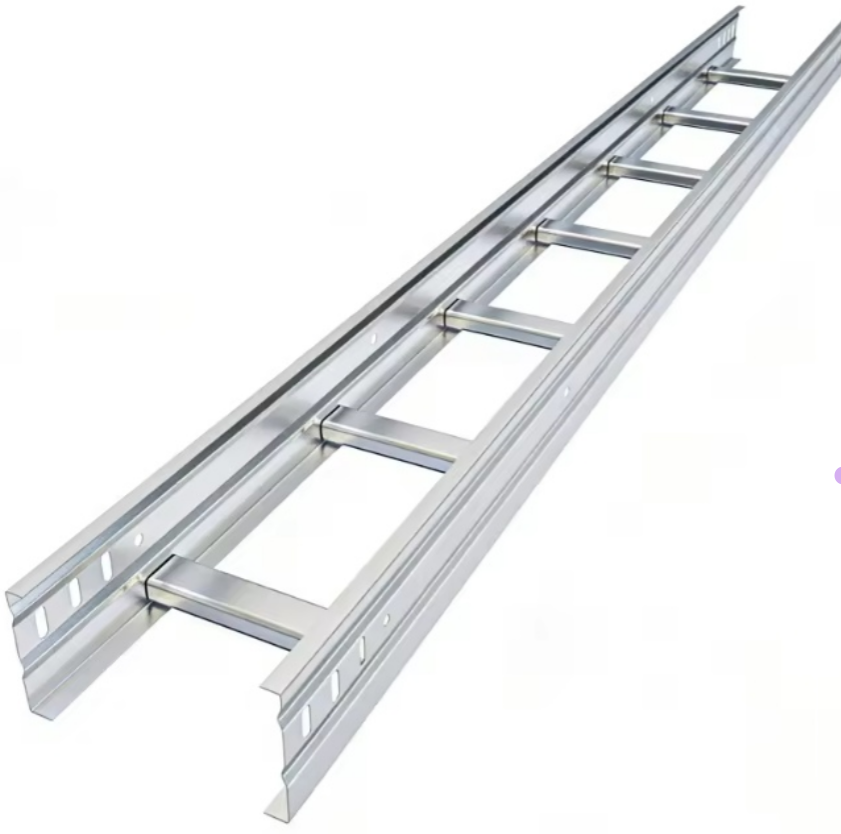

Steel Cable Ladder offers exceptional load-bearing capacity, superior structural rigidity, and excellent cost-effectiveness, making it an ideal solution for heavy-duty cable management systems. Built for durability and long-term reliability, metal cable ladder provides stable cable support in power plants, mining facilities, manufacturing plants, utility grids, and large-scale industrial infrastructure.
Designed to perform in extreme operational conditions, Steel Ladder Cable Tray ensures safe and efficient cable routing while reducing installation time and maintenance costs. With robust construction and competitive pricing, it is widely used in power distribution systems, factory workshops, construction sites, and infrastructure hubs.
Whether for heavy industrial applications or large-scale projects, Steel Cable Ladder Tray or cable rack combines high load capacity, durability, and affordability to deliver consistent, long-lasting performance.
Material & Finish available:
| G | Pre-Galvanized / PG / GI | P | Powder Coated |
| HDG | Hot Dip Galvanized | Z | Zinc Plated |
| SS304 | Stainless Steel SS304 | E | Electrolytic Polishing |
| SS316 | Stainless Steel SS316 | F | Fire Rated |
| SS316L | Stainless Steel SS316L | M | Mill / Plain Steel |
| ZAM | Zinc-Aluminum-Magnesium Steel | FRP | Fiberglass Reinforced Plastics / GRP |
| A | Aluminium |

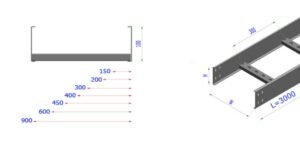

Drawing for Cable Ladder
WINWIN offers a diverse range of cable ladders made from a variety of materials, with a wide choice of cabling depths and load capabilities. cable ladders are an excellent choice for supporting high volumes of heavyweight cables over long distances.
They provide a cable management solution for heavy commercial, industrial, mining, LNG or other applications.
They are supplied in straight lengths, but use fittings to make directional or level changes with bends, tees, crosses or risers, or to change cabling widths with reducers.
Cable ladders are generally offered in and tested to meet levels of performance in accordance with NEMA standards – NEMA 1, NEMA 2, NEMA 3, and NEMA 20C.

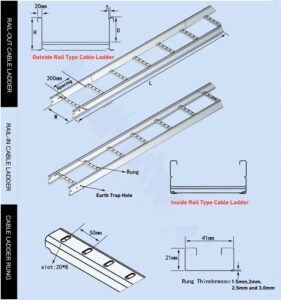

Type of Rail for Cable Ladder

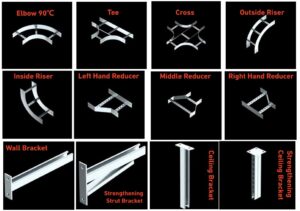

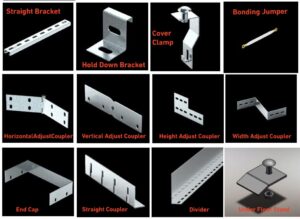

Bending Components And Brackets for Ladder Cable Tray
We produce and supply all kinds of bending components, bracket and other cable tray accessories.

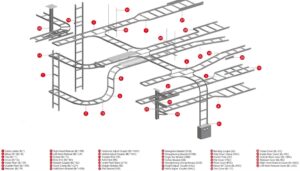

Schematic Diagram Of Cable Ladder Space Layout

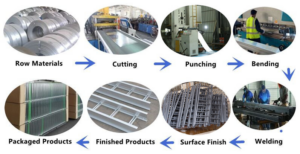

Production Process
Annual Production Capacity: 5000 TonsWith a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.Strict Quality Control SystemWe implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.Customization ServiceWe provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.Professional After-Sales & Technical SupportOur experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.
Packing And Delivery For Cable Tray
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for electric cable ladder
4.Carton for accessories
5.As per requirements

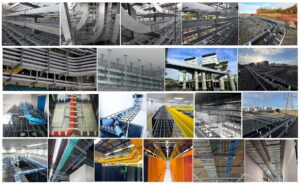

Installation Case On Site For Winwin Cable Tray System

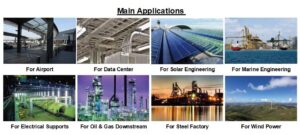

Main Application
Certificate
Founded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.
Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable trays, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.
Our high-quality cable trays and strut channels are widely applied in commercial buildings, energy projects, power plants, industrial factories, wiring systems, cable management systems, hoisting systems, data center and the construction industry. With stable quality, competitive pricing, and reliable performance, we provide cost-effective solutions for various industrial and commercial projects worldwide.
Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.
Welcome to contact us for long-term win-win cooperation.
