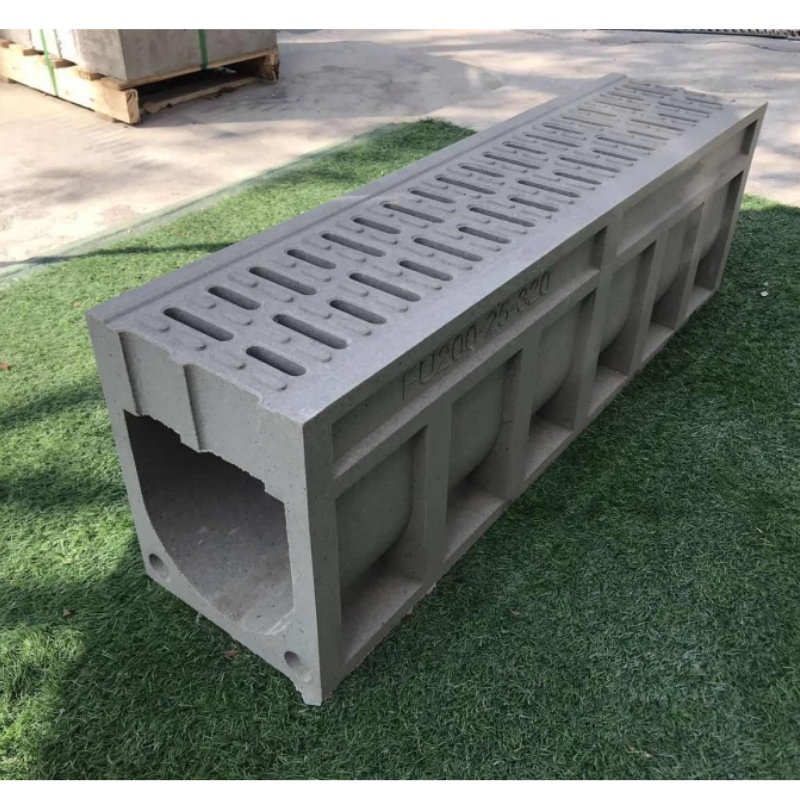

Monolithic Drainage Channel

Description

• Winwin drainage channels are made of polymer concrete. Using polyester resin as a bonding agent combined with mineral aggregates, polymer concrete offers exceptional compressive strength. It is highly load-resistant, durable, and long-lasting. Polymer concrete is non-flammable, frost-resistant, weatherproof, and resistant to diluted acids and alkalis.

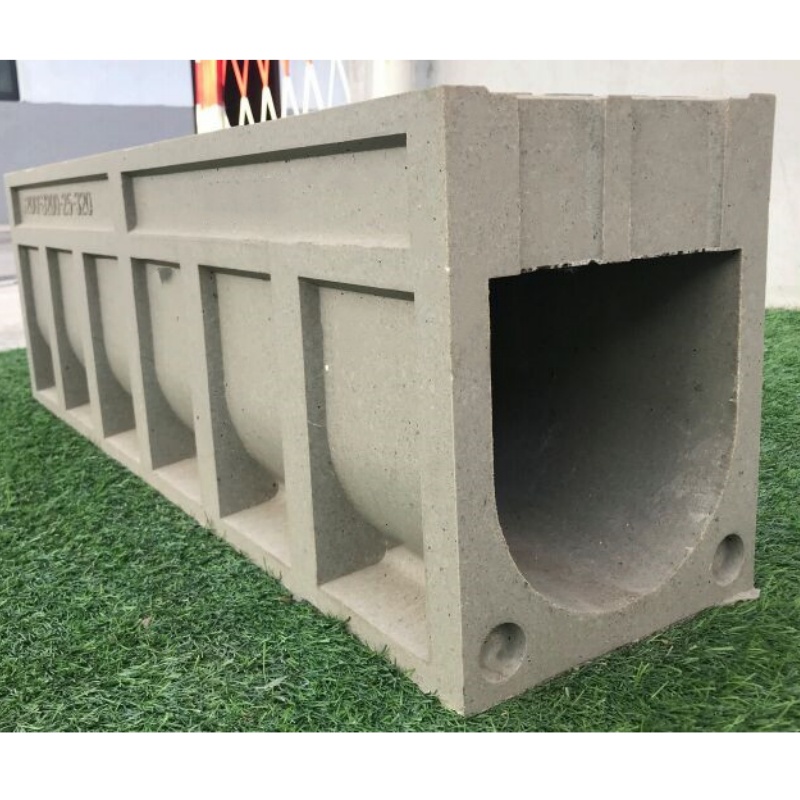

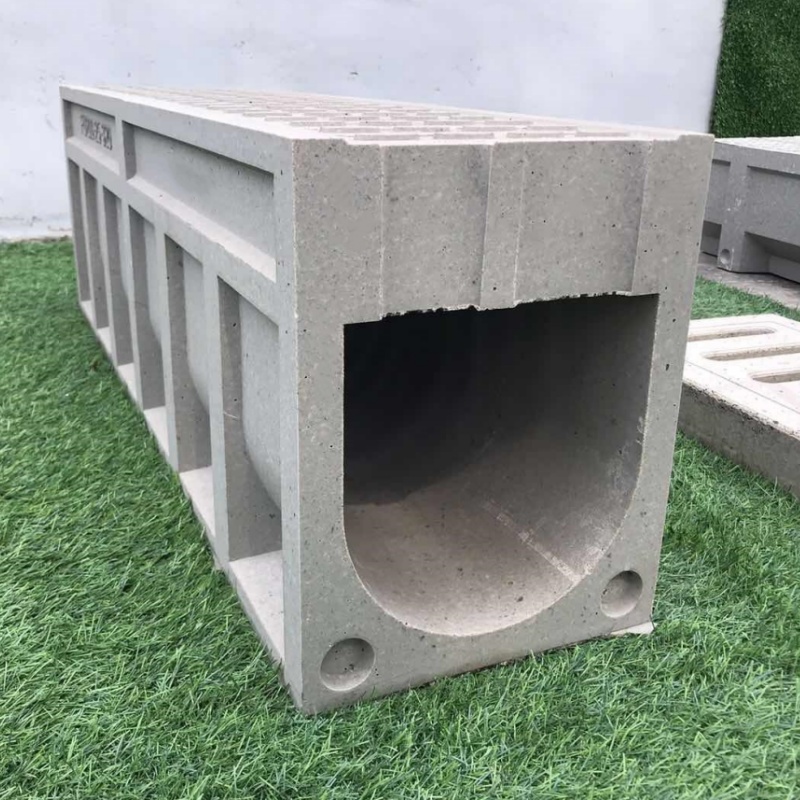

• Monoblock drainage channels are an integrated drainage system where the channel body and grating are manufactured as a single unit.
• These monolithic drainage channels have a high load-bearing capacity, reaching up to D400 and E600 load classes.

 Size of Integrated Drainage Channel

Monolithic Drainage Channel Performance

High Hardness & Excellent Mechanical Strength

Polyester resin concrete offers exceptional impact resistance, compressive strength, and flexural strength. Its compressive and flexural performance is 3 to 5 times higher than traditional concrete, effectively absorbing external impacts.

Chemical Corrosion Resistance

Composite drainage channels provide outstanding resistance to chemical erosion, acids, alkalis, biological sulfuric acid attack, and acidic soil conditions, ensuring long-term durability in harsh environments.

Bio-Corrosion Resistance

Non-absorbent and free of capillary pores, the material prevents biological colonization and microbial growth, effectively avoiding biological degradation and erosion.

Heat & Freeze-Thaw Resistance

The system withstands prolonged sunlight, extreme cold, and frequent freeze-thaw cycles without cracking or structural damage, delivering stable performance in all climatic conditions.

Lightweight & Precise Dimensions

Drainage channels feature accurate dimensions and lightweight construction, reducing transportation, lifting, excavation, and installation costs while greatly shortening on-site installation time.

Smooth Surface, Aesthetic & Low Maintenance

Resin concrete drainage channels have a smooth, non-porous surface that resists sediment accumulation and is easy to clean. Custom colors are available with added pigments, and the surface maintains integrity even after frequent washing and scrubbing.

Winwin Polymer Concrete Channels are manufactured using resin as the bonding agent, combined with high-quality mineral aggregates. This makes polymer concrete an extremely compression-resistant building material that can withstand heavy loads while delivering exceptional durability and long service life.

Polymer concrete features non-flammable, frost-proof and excellent weathering resistance properties. It also offers reliable resistance to diluted acids, alkalis and various chemical substances, ensuring stable performance in diverse environments.

The advantage of Polymer Concrete Channel

(1) Robust, durable, stable and lightweight.(2) High compressive strength, bending strength and impact resistance, with excellent anti-corrosion performance.(3) Resistant to abrasion, weathering, water penetration and freeze-thaw cycles.(4) Simple structure, safe and convenient to use; solid structure with strong load-bearing capacity, long service life, smooth surface, easy maintenance, anti-aging, anti-corrosion, anti-cracking, frost-resistant, non-flammable, zero water absorption, and high resistance to chemical and biological attack.(5) Long service life: over 50 years under normal working conditions.(6) Fast and high-volume drainage, easy to clean with removable or inspection grating covers; equipped with a combined sump and sediment bucket to solve the accumulation and blockage of daily garbage such as sand, mud, sediment and rubbish, and free of peculiar smell.(7) Load capacity: from Load Class A15 to F900 (up to 90 tonnes).(8) Unique U-shaped design with an ultra-smooth surface for efficient hydraulic flow, improved drainage capacity and flow rate, and self-cleaning function; no contamination hazard.(9) Easy to install, durable, cost-effective and requires minimal maintenance.

Polymer Concrete Material Properties

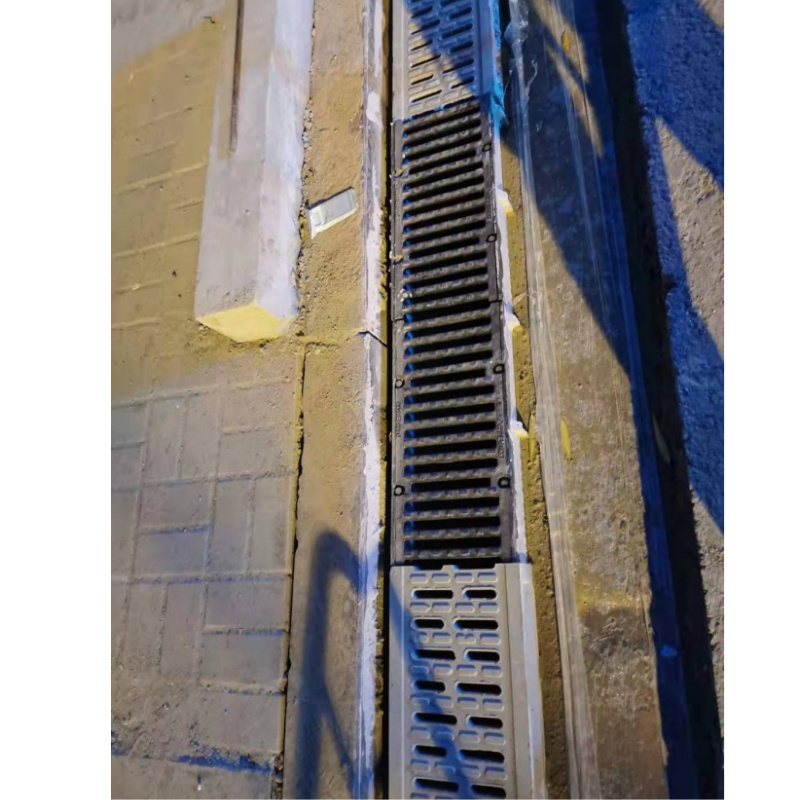

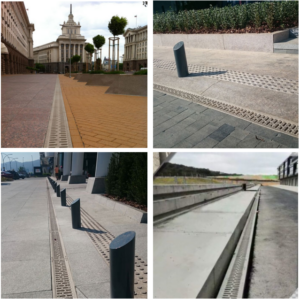

Application for Polymer Concrete Monolithic Drainage Channel

Winwin drainage systems are widely applied across residential, commercial, industrial and agricultural sectors:

• Residential: bungalows, villas, apartments, condominiums, gardens, communities
• Commercial: office buildings, shopping areas, plazas, botanical gardens, pedestrian zones, cycle lanes
• Traffic & Infrastructure: urban roads, highways, driveways, parking lots, airports, wharves, walkways
• Industrial & Civil: all kinds of industrial facilities, municipal projects and urban architecture.

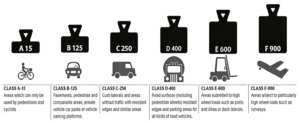

Chart of Load Class

 Certificate

Founded in 2006, WINWIN GROUP has obtained authoritative certifications including CE, ISO9001, ISO14001 and ISO45001. Meanwhile, WINWIN GROUP’s drainage channels and trench covers are manufactured in strict accordance with EN 1433 and EN 124 standards, ensuring superior product quality and compliance with global market requirements.

Winwin is a professional manufacturer of a complete range of drainage products, including Polymer Concrete Channels, Resin Concrete Trenches, Polymer Concrete Kerb Drains, Polymer Concrete Monolithic Drainage Channels, Slot Drains, Brickslot Drains, Trench Covers (Load Class A15KN to F900KN), Manhole Covers and other related drainage accessories. Our products have been tested in Spain and have successfully obtained the CE certification.

Our integrated drainage solutions are widely used in urban road construction, parking lots, logistics hubs, commercial areas, industrial zones and various infrastructure projects. Complying with international quality standards, they effectively prevent waterlogging and protect the structural integrity of surrounding facilities.

With 20 years of manufacturing and exporting experience, we provide reliable quality, stable performance and competitive prices for global customers.

Welcome to contact us for long-term win-win cooperation.
