Description

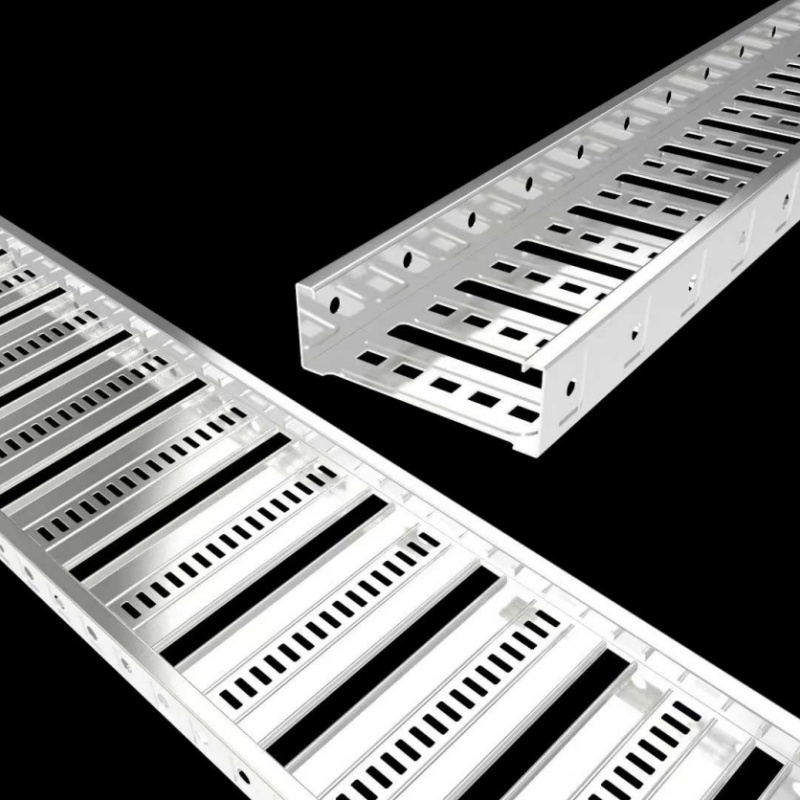

Winwin Light Duty Steel Perforated Ladder Tray is a top-selling cable management solution in Australia and New Zealand. It features a lightweight design, excellent ventilation, and outstanding cost-effectiveness, making it ideal for low-to-medium cable load applications.
Widely used in commercial buildings, retail fit-outs, offices, shopping centers, and light industrial facilities across Australia, this ladder tray ensures easy installation, efficient cable cooling, and reliable performance while complying with local Australian electrical standards.
Combining optimal strength, airflow, and budget-friendly pricing, our Light Duty Steel Perforated Ladder Tray is the preferred choice for commercial wiring, data room cabling, and light manufacturing setups. It provides stable cable support with quick installation, low maintenance, and long service life.
Material & Finish available
| G | Pre-Galvanized / PG / GI | P | Powder Coated |
| HDG | Hot Dip Galvanized | Z | Zinc Plated |
| SS304 | Stainless Steel SS304 | E | Electrolytic Polishing |
| SS31S | Stainless Steel SS316 | F | Fire Rated |
| SS316L | Stainless Steel SS316L | M | Mill / Plain Steel |
| ZAM | Zinc-Aluminum-Magnesium Steel | FRP | Fiberglass Reinforced Plastics / GRP |
| A | Aluminium |

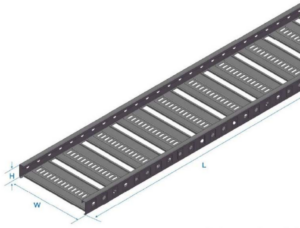

Drawing for Light Duty Ladder Tray—BC4
The Ladder Tray is formed from 1 piece of material, and can support greater loads than other trays with similar cabling depths because of the strong metal used to make it, and its unique structural design engineered to enhance its strength for both short and long spans.
Furthermore, its smooth appearance and high quality control throughout the manufacturing process makes it an attractive choice for inside installations, but as it is strong and durable, it remains a good option for industrial or other demanding sites as well.

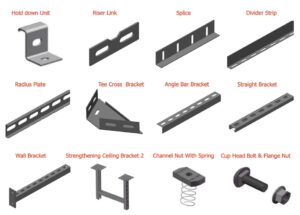

Bending Components And Brackets for Perforated Ladder Tray
We produce and supply all kinds of bending components, bracket and other cable tray accessories.

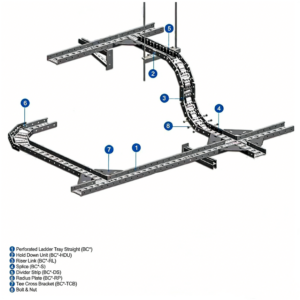

Schematic Diagram Of Light Duty Ladder Tray Space Layout

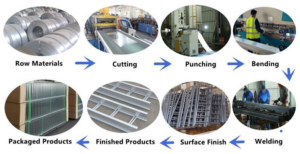

Production Process
Annual Production Capacity: 5000 TonsWith a large-scale production base, we are fully capable of supporting large orders, mass production, and ensuring stable and on-time delivery for global customers.Strict Quality Control SystemWe implement a complete 5-step inspection process from raw material procurement to finished product delivery, strictly controlling every detail to ensure products meet international standards. All our cable trays and strut channels are certified by UL, CE, NEMA, SGS, and ISO9001.Customization ServiceWe provide professional OEM & ODM services, supporting customization in size, surface treatment, load capacity, hole patterns, and other specifications to meet different project requirements.Professional After-Sales & Technical SupportOur experienced after-sales team offers reliable technical support, on-site guidance, and customized solution design for your industrial and construction projects.

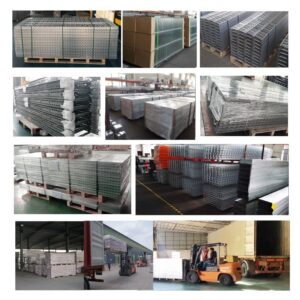

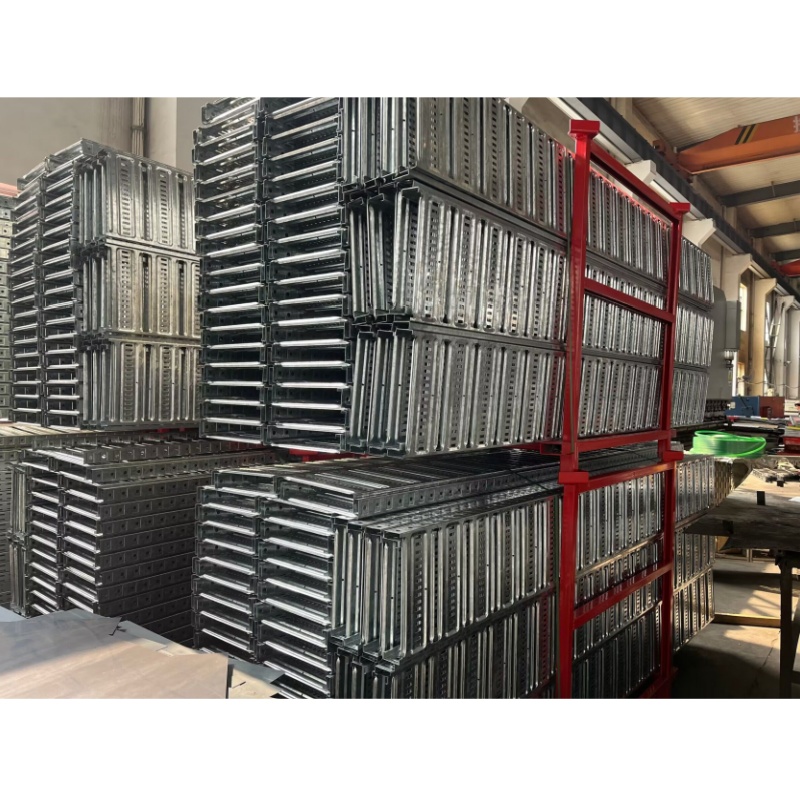

Packing And Delivery For Cable Tray
1.In bundle
2.Wrapping Film,plastic tape, Plywood pallet.
3.Plywood Pallets is optional for electric cable tray
4.Carton for accessories
5.As per requirements

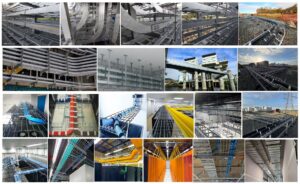

Installation Case On Site For Winwin Cable Tray System
Main Application
CertificateFounded in 2006, Winwin Group has obtained certifications including UL, cUL,CE, SGS, ISO9001, ISO14001, ISO45001,IEC 61537-2006 and NEMA VE 1-2009.
Winwin is a professional manufacturer and supplier of a full range of cable management solutions, specializing in the design, production, and export of high-quality products. Our main products include pre-galvanized steel cable trays, hot-dip galvanized cable trays, powder coated cable trays, fire-resistant steel cable trays, stainless steel cable trays, basket cable trays, wire mesh cable trays, perforated cable trays, cable trunking, cable ladders, hinging cable trays, ZAM cable trays, large-span cable trays, aluminum cable trays, FRP cable trays, strut channels, and complete cable tray accessories.
Our high-quality cable trays and strut channels are widely applied in commercial buildings, energy projects, power plants, industrial factories, wiring systems, cable management systems, hoisting systems, data center and the construction industry. With stable quality, competitive pricing, and reliable performance, we provide cost-effective solutions for various industrial and commercial projects worldwide.
Boasting 20 years of manufacturing and exporting experience, we have built an extensive global sales network and serve more than 70 countries and regions around the world, including the United States, Spain, Germany, Australia, New Zealand, and many others. We are committed to offering stable quality, on-time delivery, and professional services to global customers.
Welcome to contact us for long-term win-win cooperation.
