Fujian Winwin Group’s complete guide to EN1433 polymer concrete drainage channel edge protection covers four standard top-edge designs — neat plain edge, polymer concrete L-shape edge, galvanized steel L-edge, and ductile cast iron L-edge — matching load classes from A15 to F900 trench cover (EN124 Trench Cover)for every surface water drainage project.

Selecting the right edge protection is one of the most overlooked yet critical decisions when specifying polymer concrete drainage channels(trench drain systems). The top edge of a trench channel bears every wheel impact, construction load and grating stress during both installation and decades of service. Choosing the wrong edge type leads to chipping, cracking, cover displacement and premature failure — even when the channel body itself is correctly specified. As an EN1433 drainage channel manufacturer with 20+ years of production experience, Fujian Winwin Group produces four standard edge protection designs for its polymer concrete drainage channel lineup, each engineered for a specific load range and operating environment. This guide explains the differences and helps engineers and contractors select the correct edge type for each project.

Why edge protection matters for polymer concrete trench drains( polymer concrete drain)

The channel opening is structurally the weakest point of any linear drainage system. During installation, dropped tools, heavy cover placement and construction traffic concentrate stress directly on the top edges. In service, repeated vehicle rolling, impact loads, thermal movement and grate vibration all act on the same area. The four edge types from Fujian Winwin Group are designed to progressively reinforce this high-stress zone, allowing specifiers to match protection level to actual project load and environment, without over-specifying or under-specifying.

All four edge variants share the same premium polymer concrete channel body: moulded from high-grade polyester resin and graded quartz aggregates, fully non-porous, frost resistant, chemically resistant to diluted acids/alkalis/salts, CE certified to EN1433, and available in standard 1-metre lengths with inside widths from 100 mm to 400 mm. The difference lies entirely in the top-edge reinforcement.

Four edge protection types compared

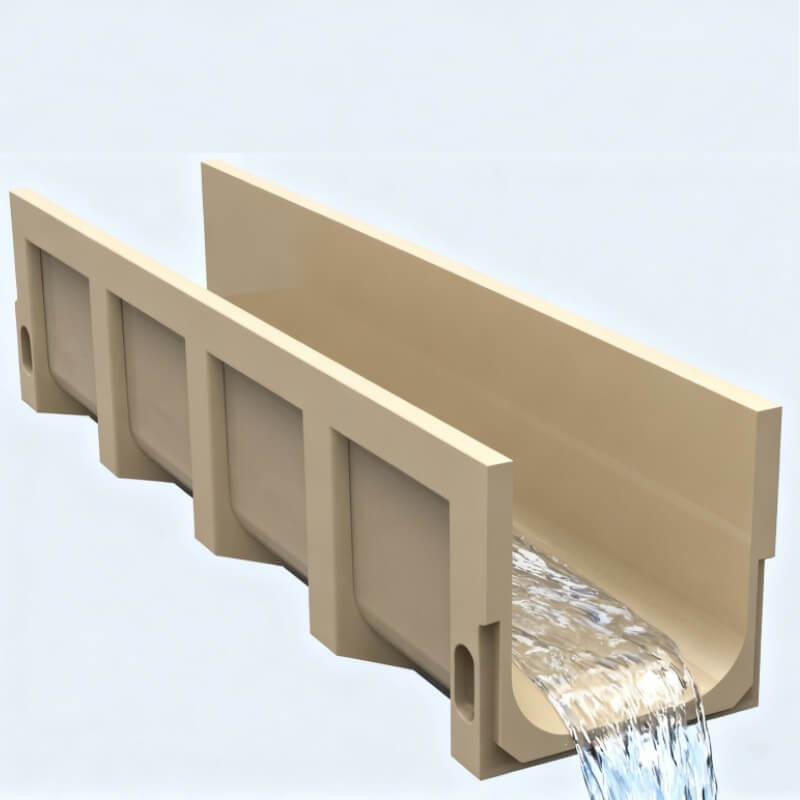

1.Neat Plain Edge — Light-duty, economical, all polymer concrete

*Edge structure: One-piece moulded polymer concrete, no separate reinforcement frame, clean smooth finish

*Load class: A15 to C250 (up to 25 tonnes) per EN1433

*Key characteristics: Lightest weight, easiest to cut and adapt on site, lowest material cost, unified concrete appearance, no metal components to corrode *Best suited for: Pedestrian walkways, garden landscapes, residential courtyards, indoor public plazas, cycle lanes, and light commercial projects where vehicle traffic is absent or limited to occasional light service vehicles

*Main advantage: Fast, flexible installation — the plain edge can be cleanly cut on site to match gradients, corners and special layouts without damaging a reinforced frame.

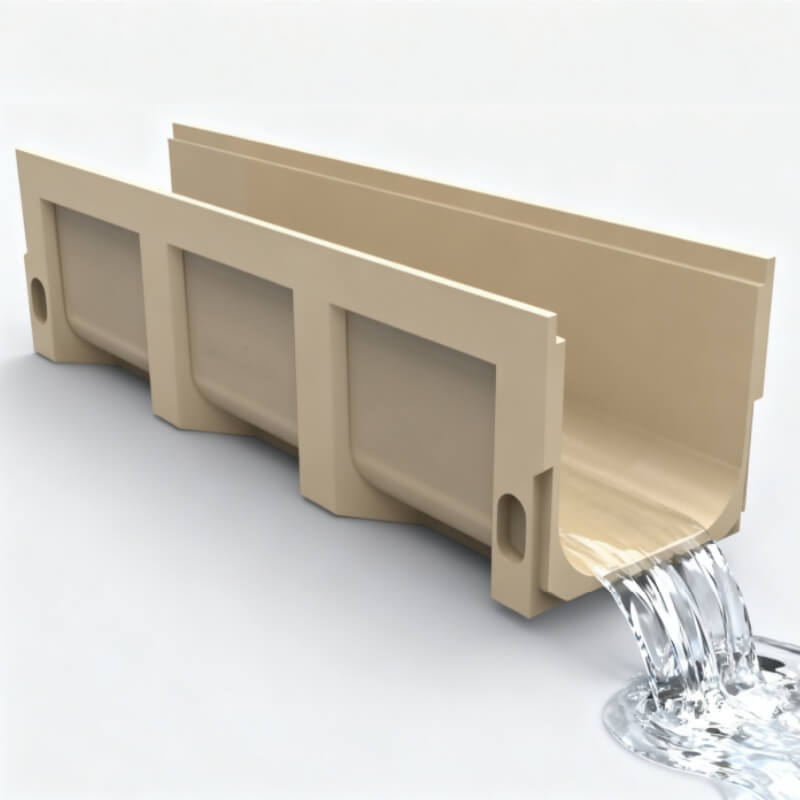

2.Polymer Concrete L-Shape Edge — Corrosion-free medium duty

*Edge structure: Integral L-type reinforced edges moulded as a single piece with the channel body from modified polymer concrete containing anti-aging polyester resin and high-hardness mineral aggregates

*Load class: A15 to D400 (up to 40 tonnes) per EN1433

*Key characteristics: Significantly higher opening rigidity than neat edge; zero metal content means zero corrosion risk; unified polymer concrete texture throughout; excellent resistance to edge chipping during cover installation

*Best suited for: Municipal sidewalks, factory perimeter yards, chemical industry parks, coastal pedestrian zones, waterfront promenades, and any environment exposed to salt spray, de-icing salts or chemical spillage

*Main advantage: Because there is no steel or iron in the edge, there is no risk of rust staining, edge delamination or galvanic corrosion — making it the preferred choice for aggressive chemical and coastal environments where metal-edged channels would degrade over time.

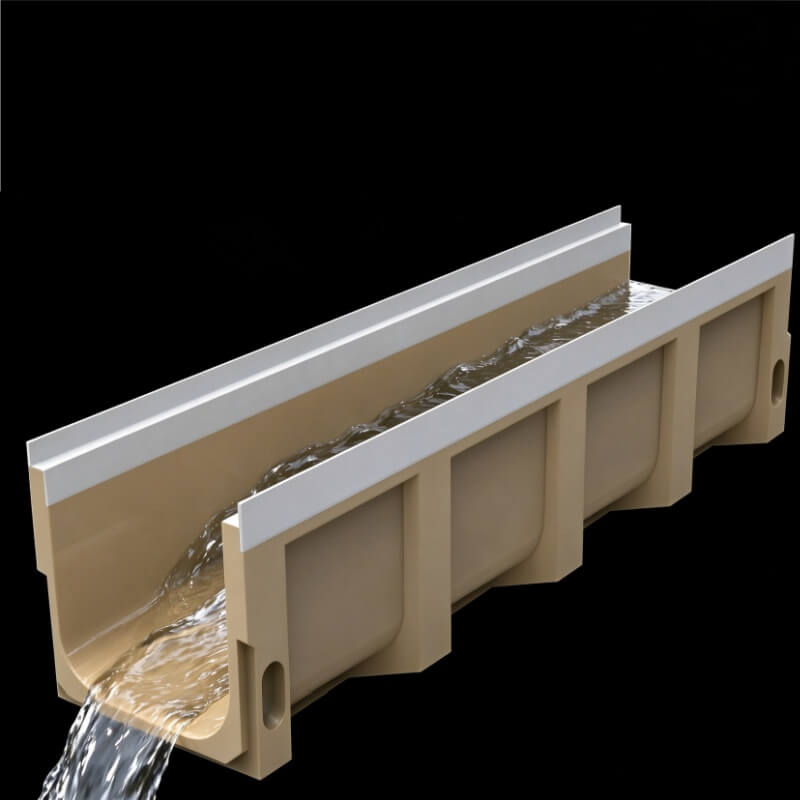

3.Galvanized Steel L-Shape Edge — Balanced heavy-duty performance

*Edge structure: Welded pre-galvanized steel L-sections wrapped and anchored onto both top edges of the polymer concrete channel body

*Load class: A15 to E600 (up to 60 tonnes) per EN1433

*Key characteristics: Dramatically increased impact resistance; strong anti-rust performance from hot-dip galvanizing; prevents edge breakage and grating displacement under frequent vehicle loading; balances performance and cost for medium-to-heavy traffic

*Best suited for: Municipal roadways, public car parks, commercial plazas, logistics park access roads, industrial yards, and general urban infrastructure carrying regular car, truck and bus traffic

*Main advantage: The galvanized steel edge absorbs and distributes horizontal and vertical impact loads that would crack plain concrete edges, while remaining significantly more cost-effective than ductile iron edge channels for projects that do not require F900 loading.

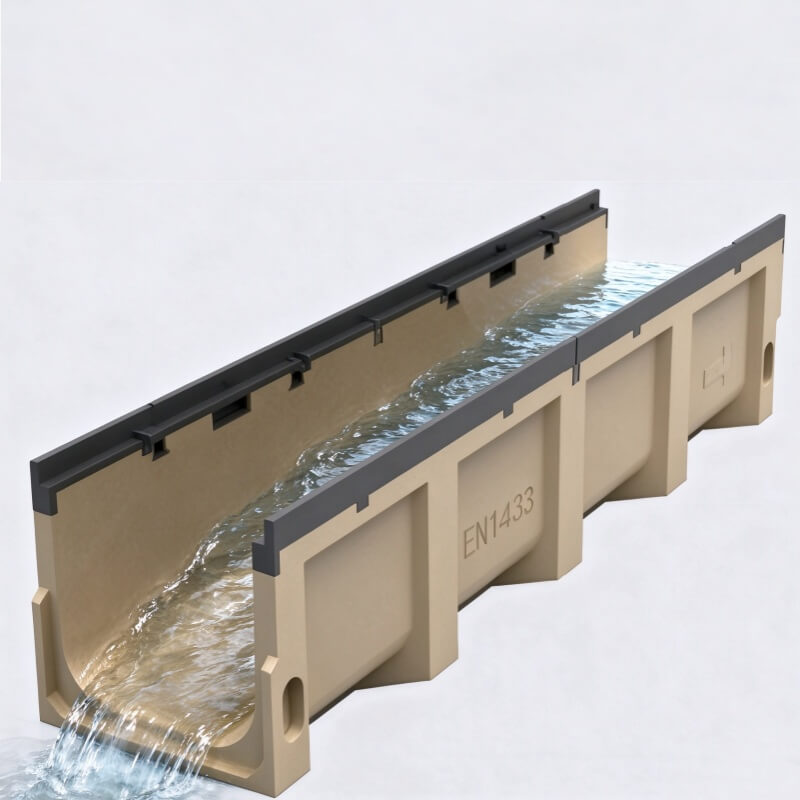

4.Ductile Cast Iron L-Shape Edge — Ultimate heavy-duty for extreme loads

*Edge structure: Heavy-duty ductile cast iron L-edge protection frames cast and anchored to the polymer concrete channel body

*Load class: Full EN1433 range from A15 up to F900 (90 tonnes)

*Key characteristics: Maximum anti-collision, anti-crush and anti-abrasion performance; withstands continuous ultra-heavy vehicle rolling and severe impact loads; highest structural stability and longest service life under extreme conditions

*Best suited for: Port container yards, airport runways and taxiways, heavy industrial zones, logistics hubs, freight terminals, and any infrastructure carrying forklifts, container stackers, aircraft or heavy construction equipment

*Main advantage: Ductile iron’s combination of high tensile strength and toughness makes it the only edge option capable of reliably sustaining repeated F900 loads over a 50-year service life, protecting the channel opening even under the harshest industrial and port operating conditions.

Quick edge selection reference for projects

Project Scenario                                                                                                                              Recommended Edge Type                EN1433 Load Class

Pedestrian zones, gardens, residential courtyards                                                                    Neat Plain Edge                                       A15–C250

Coastal walkways, chemical plant perimeters, de-icing salt zones                             Polymer Concrete L-Edge                          A15–D400

Municipal roads, public car parks, commercial plazas, logistics parks                       Galvanized Steel L-Edge                            A15–E600

Ports, airports, container yards, heavy industry                                                                   Ductile Cast Iron L-Edge                            A15–F900

Core system features across all edge types( resin concrete channel drain)

No matter which edge protection you select, every Fujian Winwin Group polymer concrete drainage channel delivers:

*Smooth U-shaped interior profile for optimal hydraulic efficiency and self-cleaning flow

*Compatibility with ductile cast iron, galvanized steel, stainless steel and composite gratings matched to load class

*Removable/inspection covers and optional integrated sump units with sediment buckets to prevent pipe blockage and odour

*Modular 1-metre length with male-female joint connections for fast, watertight on-site assembly

*Full CE, ISO 9001, ISO 14001 and ISO 45001 certification, manufactured and tested in compliance with EN1433 and EN124

*50+ year design service life under rated operating conditions

Work with Fujian Winwin Group

Matching the right edge protection to project load and environment is the key to a drainage system that performs reliably for decades without costly repairs. With 20 years of manufacturing and exporting experience, Fujian Winwin Group supplies EN1433 polymer concrete drainage channels across all four edge types directly from our factory, supporting custom dimensions, custom cover configurations, private labelling and full technical specification support for contractors, distributors and engineering firms worldwide. We can supply slod drain(slot drain systems - Innovative Drainage Solutions, Durable Stainless Steel Slot Drain System, about more PP Slot Drain or Slot Drain Plastic and Slot Dain detail, kindly visit the company wetstie: www.winwinbloc.com  ), lighty duty drainage channel, middle duty drainage channel and heavy duty drainage channel.This is a good surface water drainage solutions and EN1433 drainage channel manufacturer.

Contact our technical team today to discuss your project requirements, request product datasheets, or receive a customized quotation for polymer concrete trench drain systems with the correct edge protection for your load class and environment.
