Traditional road construction separates concrete kerb stones and independent drainage channels, which leads to complicated excavation, long construction cycles, poor water collection efficiency and frequent waterlogging along curbs. The integrated kerb drain innovatively combines road kerb and precast linear drainage channel into one integrated polymer concrete component, solving the above pain points perfectly. As a mature sponge city supporting product of Winwin Group, this all-in-one kerb drainage system has been widely adopted in urban municipal roads, parking lots, commercial plazas and residential districts. This article elaborates its structural advantages, load specifications, installation convenience and project customization rules to help overseas engineering buyers make fast decisions.

1. Unique Integrated Structural Advantages of Kerb Drain

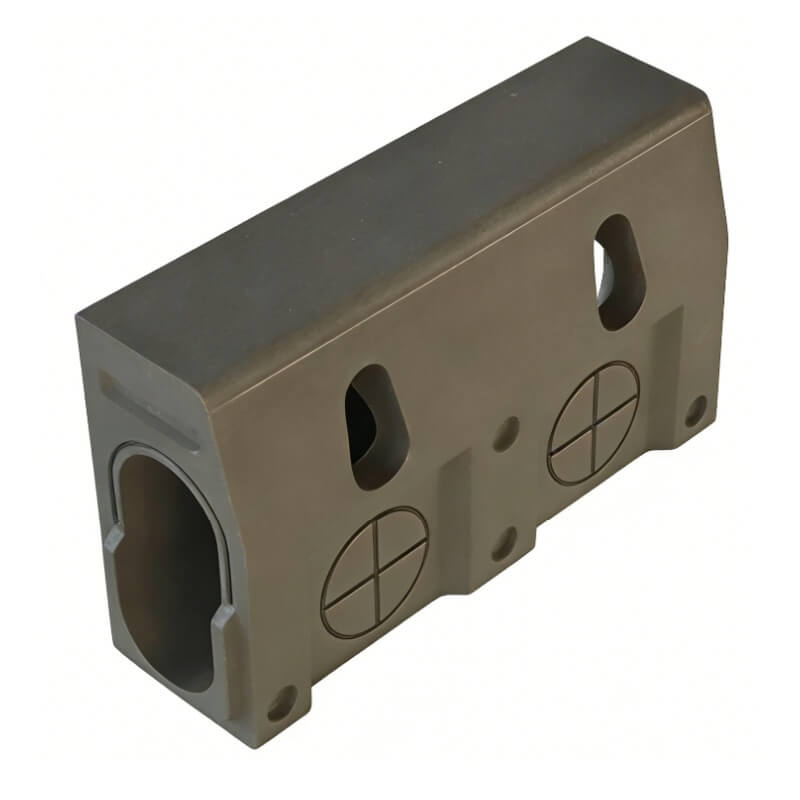

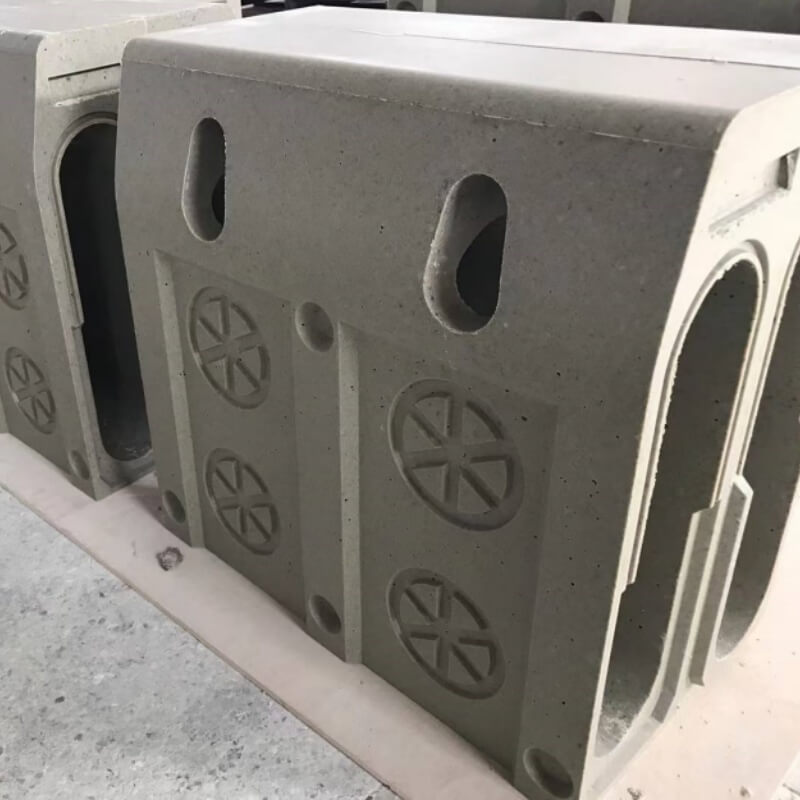

Different from split kerb and drain products, Winwin kerb drain adopts one-piece polymer concrete integrated molding without splicing gaps between kerb and channel. Pre-reserved side slotted water inlets run along the unit body to continuously collect rainwater flowing along road curbs, avoiding rainwater overflow onto sidewalks.

1. Simplified construction: No separate kerb laying and trench excavation. Only one foundation groove is needed, cutting 40% of on-site construction labor and construction period.

2. Leakage-free monolithic design: The integrated structure eliminates seepage gaps between independent kerb and drain, preventing underground road base erosion caused by rainwater penetration.

3. Built-in heavy-load bearing capacity: The whole body shares vehicle load pressure, designed as fixed D400 load grade to adapt to frequent vehicle rolling along road edges. Its integrated outer wall replaces separate grating covers, forming an integral bearing surface that bears direct vehicle compression without additional cover accessories.

4. Self-cleaning smooth inner wall: Low water absorption resin concrete surface reduces sediment adhesion, lowering long-term road maintenance frequency.

2. Standard Load Grade & Core Structural Design

All Winwin integrated kerb drains comply strictly with EN1433 European drainage standard and adopt unified D400 heavy-duty load grade. Unlike conventional open trench drains that rely on separate cast iron or steel gratings for load bearing, Winwin kerb drain realizes bearing and water collection through its own molded side inlet slots and integrated solid outer wall, requiring no matched cover or grating parts for normal installation and operation.

The built-in slotted inlets are evenly distributed on the kerb side wall to capture surface runoff continuously along the whole road edge, delivering stable drainage performance even during concentrated heavy rainfall. The integral polymer concrete body features strong compression resistance, impact resistance and anti-aging performance, maintaining complete structural stability under long-term vehicle rolling.

3. Core Application Scenarios of D400 Kerb Drain

Municipal Urban Main Roads & Sponge City Renovation

The D400 integrated kerb drain is the core standardized product for new sponge city construction and old urban road reconstruction. Its integrated rainwater collection design realizes efficient surface runoff control and effectively alleviates urban road waterlogging in rainy seasons, fully adapting to daily rolling of various urban vehicles.

Large Commercial Plazas & Public Parking Lots

Continuous kerb drain layout around large parking lot road edges quickly drains accumulated rainwater, preventing slippery ground and extending the service life of asphalt pavement. The D400 heavy-load capacity easily copes with frequent vehicle entry, exit and parking extrusion.

Logistics Parks & Highway Auxiliary Roads

Frequent heavy truck passage puts forward high requirements for roadside drainage facilities. Winwin D400 kerb drain features strong compression and impact resistance, effectively avoiding channel deformation and damage caused by heavy-load rolling, suitable for long-term high-intensity traffic scenarios.

Coastal Ports & Industrial Zone Roads

The polymer concrete raw material delivers excellent resistance to salt spray and chemical corrosion, adapting to harsh coastal and factory environments without extra anti-corrosion grating matching, greatly simplifying supporting material procurement for engineering projects.

4. Winwin Kerb Drain Product Specifications

Winwin Group provides professional D400-grade integrated kerb drain solutions with standard fixed 500mm single unit length for bulk production and engineering delivery. Inside width:100mm;Outside with:150mm;Total Height:305mm and 500mm available;

China Fujian Winwin Group heavy-duty kerb drain is professionally tested and certified with fixed load class up to D400KN. Engineered with reinforced integrated edge structure, it can withstand continuous vehicle rolling, roadside impact, tire friction and heavy traffic extrusion, fully meeting medium-heavy load road application standards without edge cracking or deformation.

Conclusion

With D400 heavy-load grade integrated molding design that eliminates the need for separate grating covers, Winwin polymer concrete kerb drainage replaces the outdated split kerb+drain structure, featuring shorter construction time, continuous drainage efficiency and stable all-in-one load-bearing performance. It is the optimal professional drainage solution for modern urban roads, traffic-intensive public areas and sponge city infrastructure projects. If you need quotation or technical consultation for D400 kerb drain systems, kindly inform us of the channel inner dimension, and our sales team will reply with detailed offers promptly.
