Selecting the right surface treatment is essential to maximizing cable tray service life, stabilizing structural performance, and reducing long-term maintenance costs for electrical and infrastructure projects. Different finishes deliver distinct anti-corrosion capabilities, cost levels, and environmental adaptability. To help engineers, contractors, and global distributors make accurate project-based selections, this article comprehensively compares four mainstream cable tray surface treatment solutions: Pre-galvanized, HDG (Hot Dip Galvanized), ZAM (Zinc-Aluminum-Magnesium Alloy Coating), and Stainless Steel.

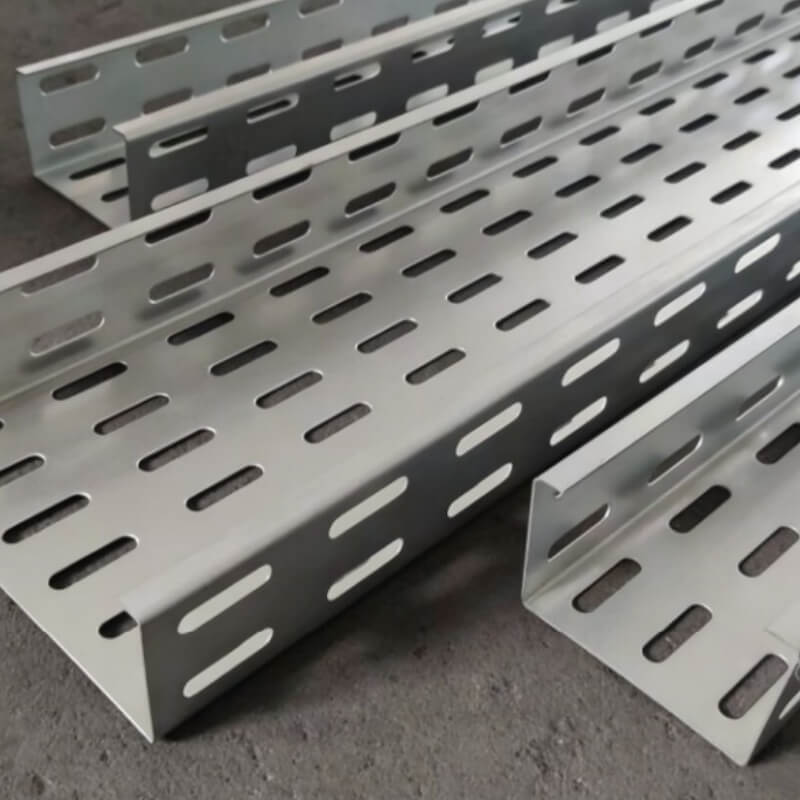

Pre-galvanized (mill galvanized) treatment means the steel coil is galvanized before cutting, bending, and fabrication. The surface presents a uniform, smooth zinc layer with a neat metallic finish and no rough burrs. This finish strictly complies with international galvanizing standards and features stable indoor anti-rust performance.
Core Features
•Smooth and consistent surface with excellent appearance
•Cost-effective and economical for general projects
•Suitable for dry indoor environments with low corrosion risk
•No color difference after processing, ideal for visible wiring areas
Applicable Scenarios: Indoor commercial buildings, office wiring, clean workshops, dry factory interiors, and general indoor electrical distribution systems.
Limitations: The bending and cutting sections lose zinc protection after fabrication, making it unsuitable for outdoor, humid, coastal, or chemical corrosive environments.

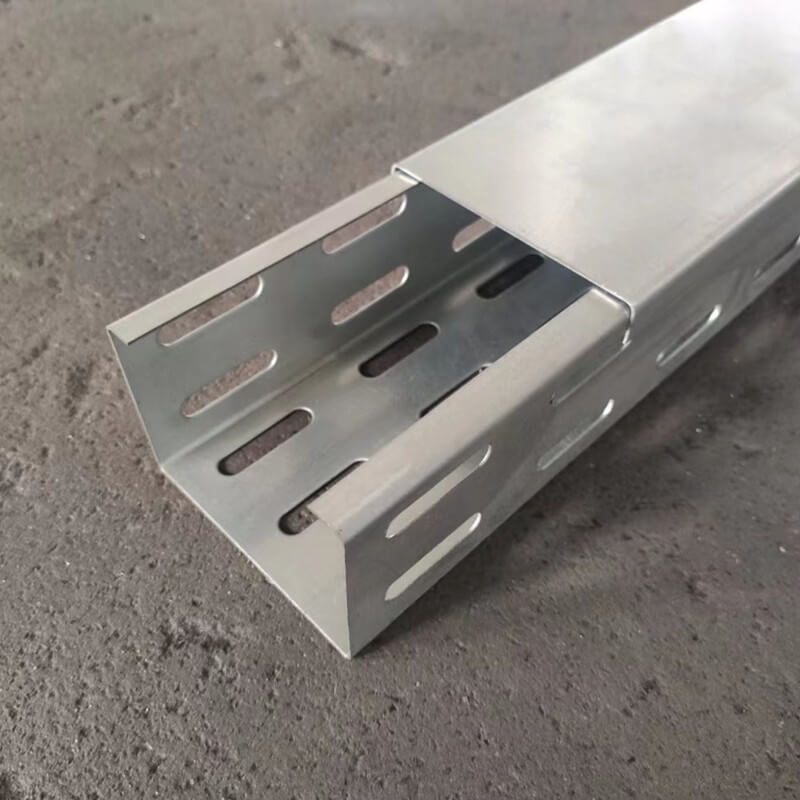

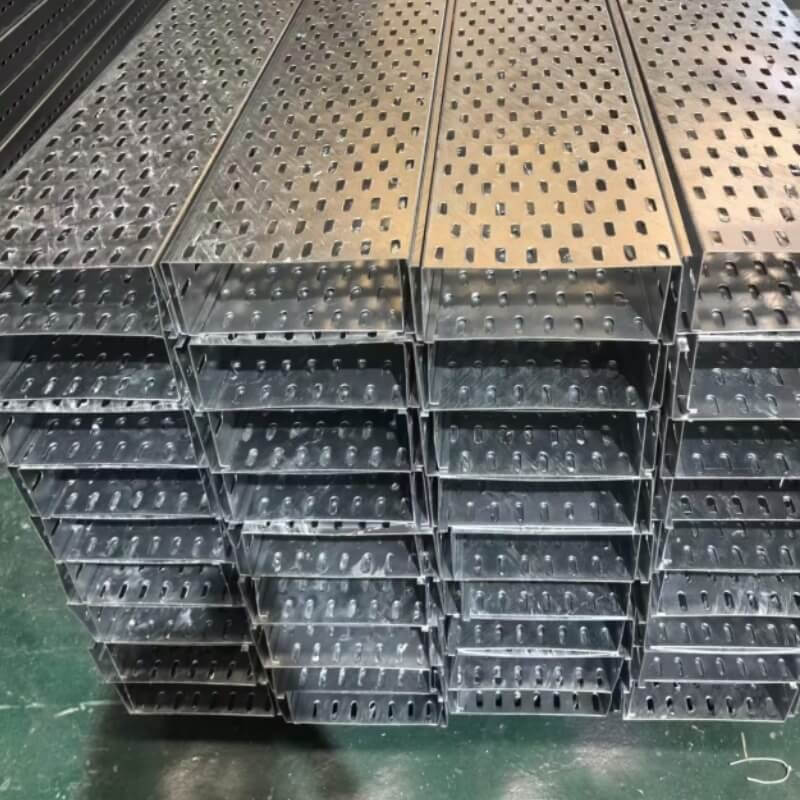

2. HDG (Hot Dip Galvanized) Cable Tray
HDG is the most traditional and widely recognized heavy-duty anti-corrosion process. The finished cable tray is fully immersed in high-temperature molten zinc after fabrication, forming a thick zinc-iron alloy layer that covers every corner, including welding joints and cut edges. It meets EN ISO 1461 standards and provides reliable cathodic protection for steel substrates.
Core Features
•Ultra-thick zinc coating with strong mechanical impact resistance
•Full coverage protection for welded seams and cut surfaces
•Excellent outdoor anti-rust performance with long service life
•Low maintenance requirements for outdoor long-term operation
Applicable Scenarios: Outdoor municipal projects, highway corridors, outdoor power plants, general industrial workshops, and open-air electrical wiring systems.
Limitations: Slightly rough surface texture; natural zinc spangle and minor color differences are normal; not optimal for ultra-high corrosion coastal environments.
3. ZAM (Zinc-Aluminum-Magnesium) Cable Tray
ZAM is an upgraded high-end alloy surface treatment, composed of zinc, aluminum, and magnesium ternary alloy coating. It features a unique self-healing function — scratches and cutting edges can automatically form a dense protective film to prevent rust spread. Compared with traditional galvanizing, ZAM achieves stronger corrosion resistance, higher hardness, and zero maintenance performance.
Core Features
•Self-healing protection for cut edges and surface scratches
•3–5 times higher corrosion resistance than ordinary galvanized steel
•Super smooth surface, no rust overflow, zero maintenance
•High hardness, resistant to friction and mechanical damage
Applicable Scenarios: Coastal engineering, humid subtropical environments, chemical factories, sewage treatment plants, photovoltaic power stations, and long-term unattended outdoor projects.
Limitations: Higher unit cost than pre-galvanized finishes, but lower unit coast than hot dip galvanized finishes, suitable for high-standard long-life projects.
4. Stainless Steel Cable Tray (SS304 / SS316L)
Stainless steel cable tray relies on the inherent chromium element to form a dense passive oxide film on the surface, achieving permanent anti-corrosion without external coating protection. SS304 is the general-grade anti-rust material, while SS316L adds molybdenum elements to resist chloride and seawater corrosion, representing the highest-level protection solution for harsh environments.
Core Features
•Intrinsic anti-corrosion performance, no coating peeling or fading
•Excellent high-temperature resistance and oxidation resistance
•Super clean surface, hygienic and pollution-free
•Ultra-long service life with almost no maintenance required
Applicable Scenarios: Coastal marine projects, offshore platforms, chemical and pharmaceutical plants, food processing factories, wastewater treatment facilities, and high-end cleanroom systems.
Limitations: Highest material cost, mainly used for high-standard harsh-environment engineering projects.
Quick Selection Guide for Project Engineers
•Indoor dry & budget projects → Pre-galvanized
•General outdoor & conventional industrial projects → HDG hot dip galvanized
•Coastal humid & medium-high corrosion projects → ZAM alloy coated
•Marine, chemical & ultra-high corrosion projects → Stainless Steel (SS304/SS316L)
Winwin Customized Cable Tray Solutions
Winwin group supplies full-series cable trays with four optional surface treatments, all compliant with NEMA, IEC, and ISO standards and certified by UL/cUL, CE, and SGS. We support personalized customization of size, thickness, and surface finish, as well as complete matching cable tray fittings including elbows, tees, reducers, and wall cantilever brackets. Whether for commercial, industrial, coastal, or chemical engineering projects, we provide the most cost-effective cable management solution and free technical guidance.
